Pipe butt fusion welding machine

Categories hydraulic pipe butt fusion welding machine, PE Pipe Welding Machine

Steel mould and aluminum mould is optional.
Inch mould in option.

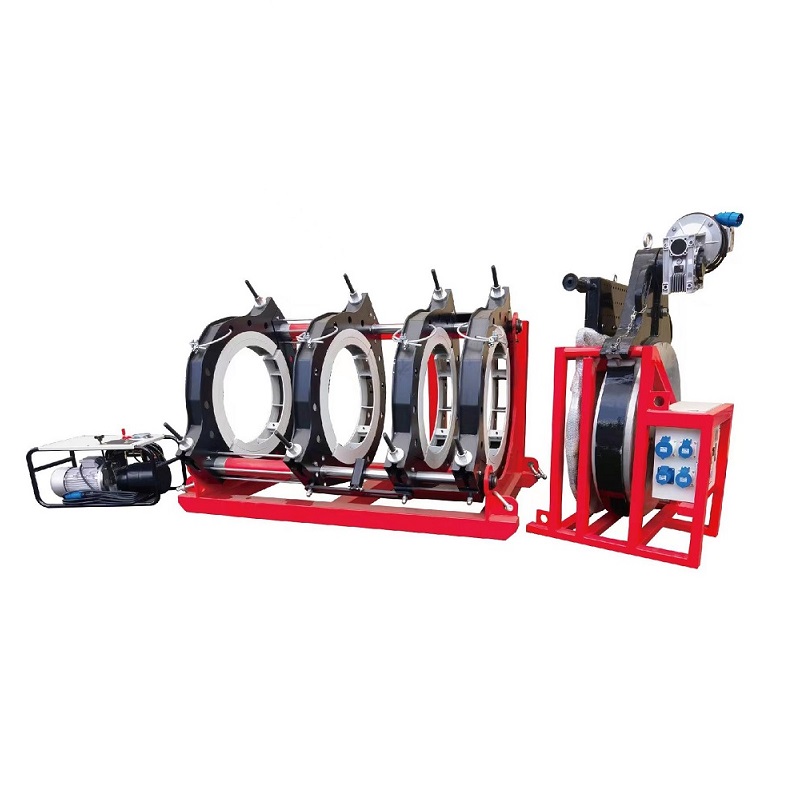

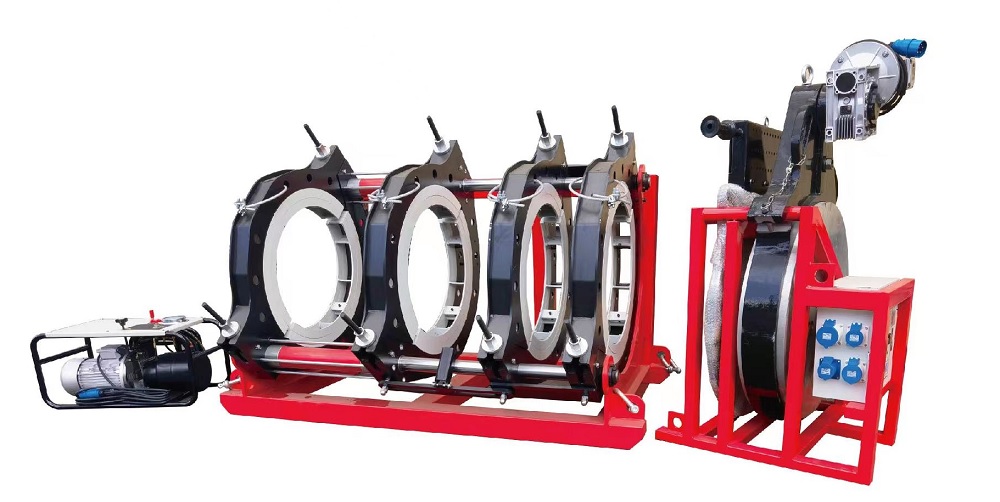

Pipe butt fusion welding machine

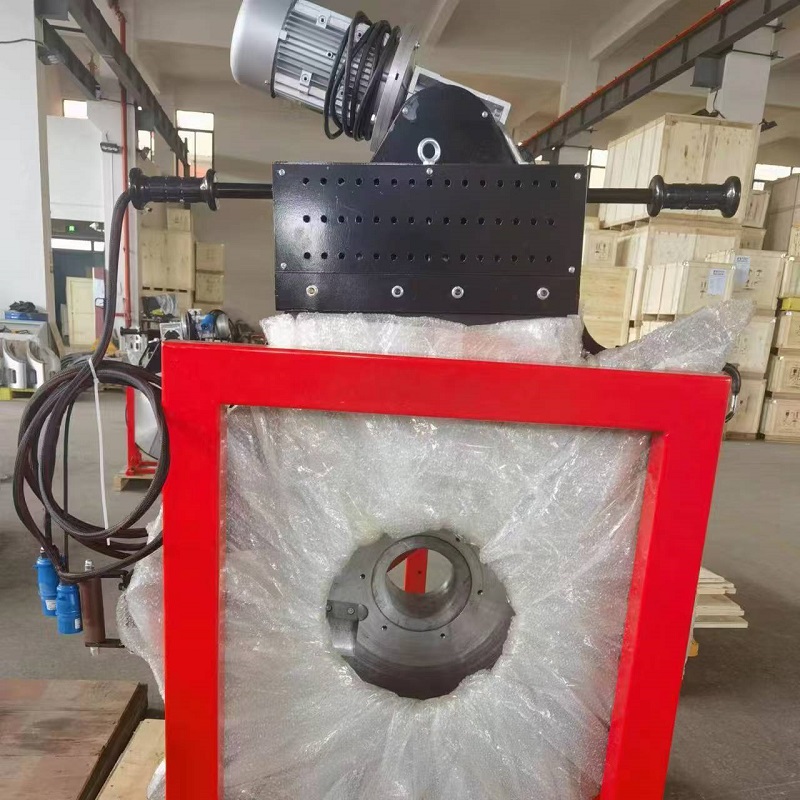

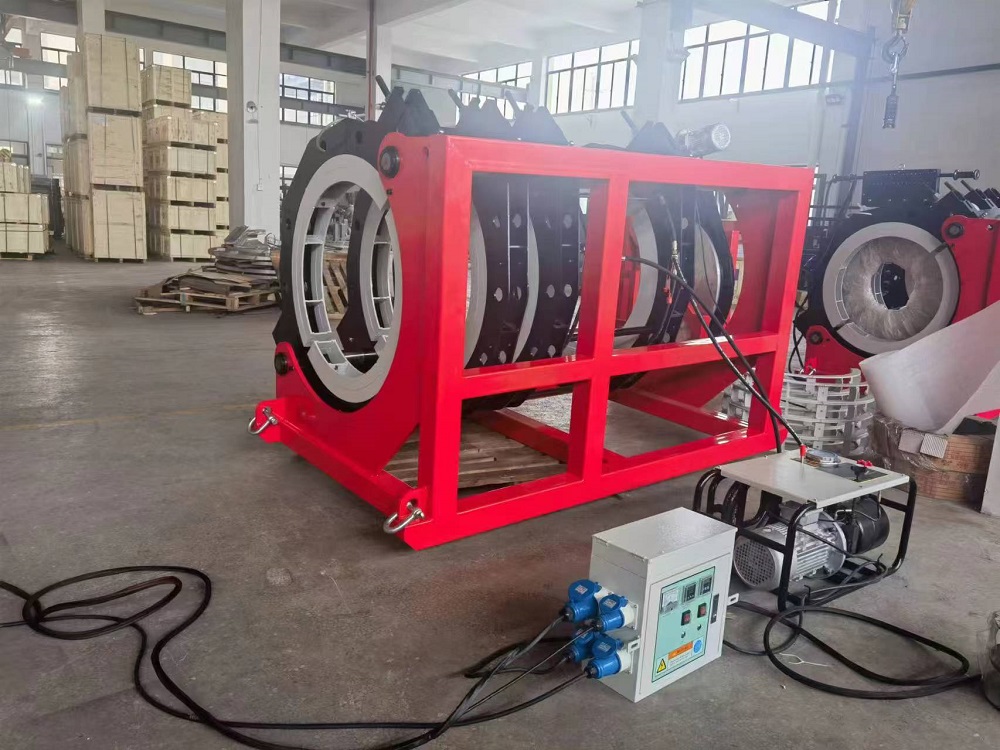

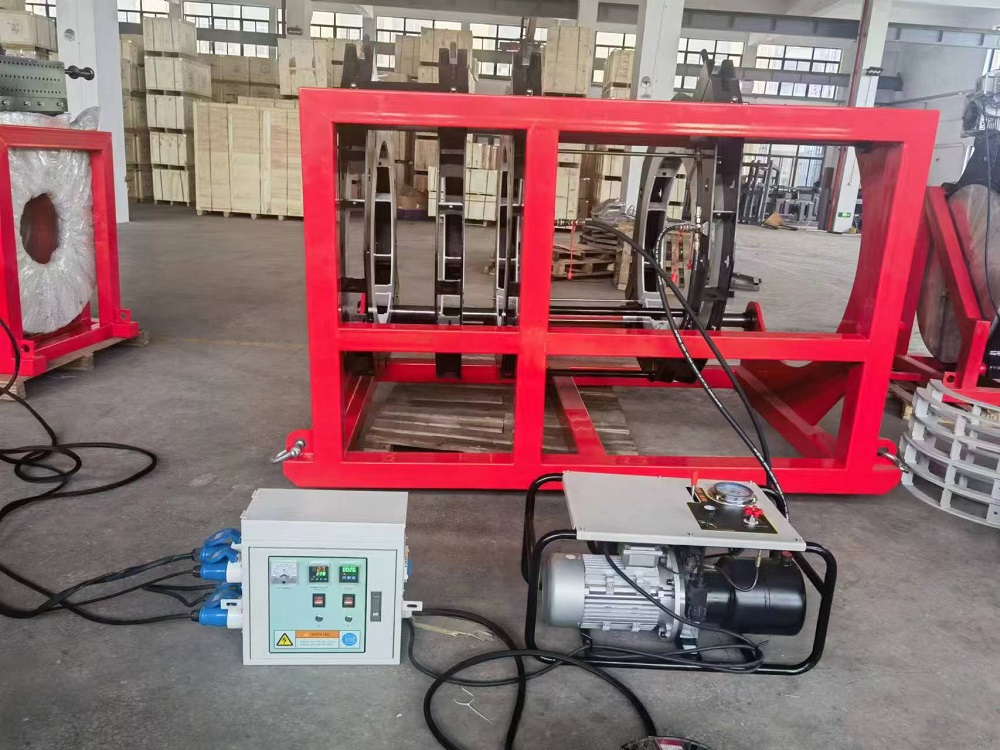

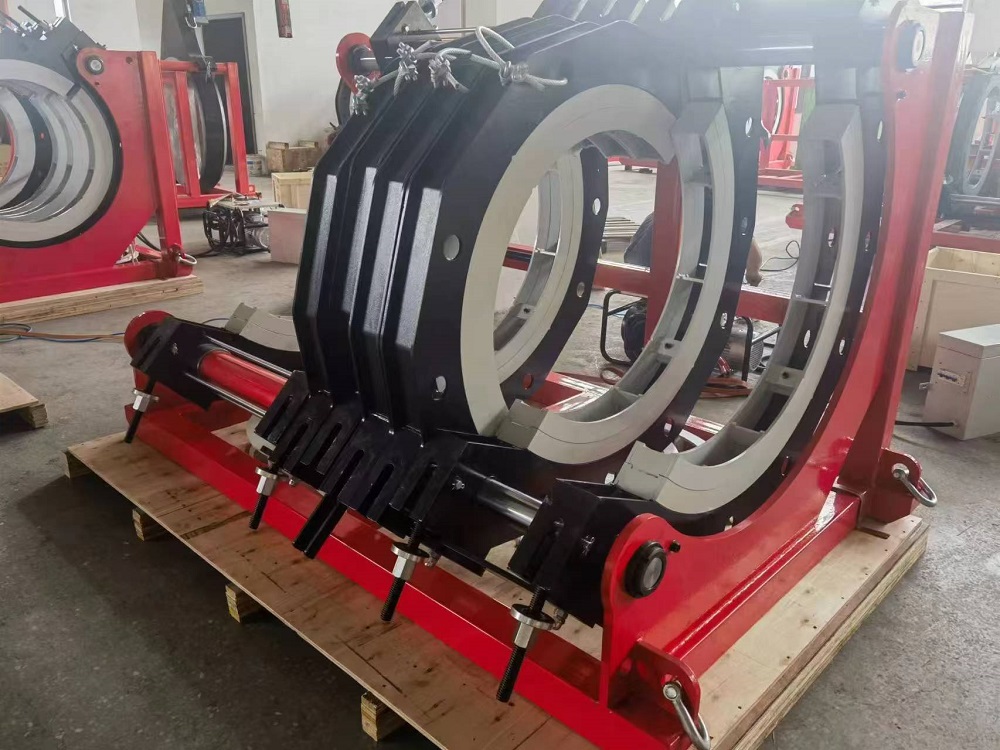

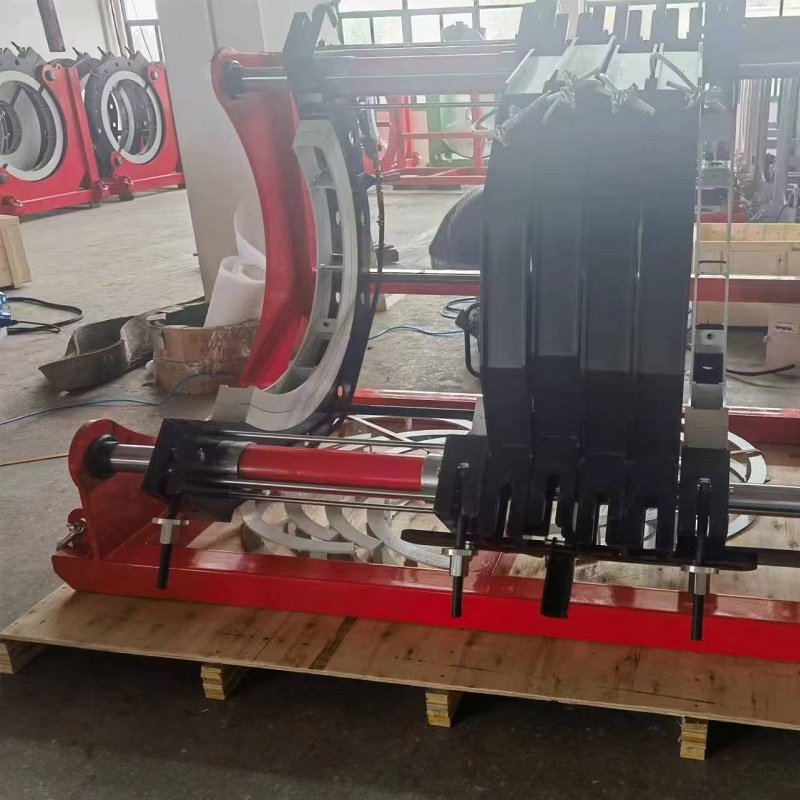

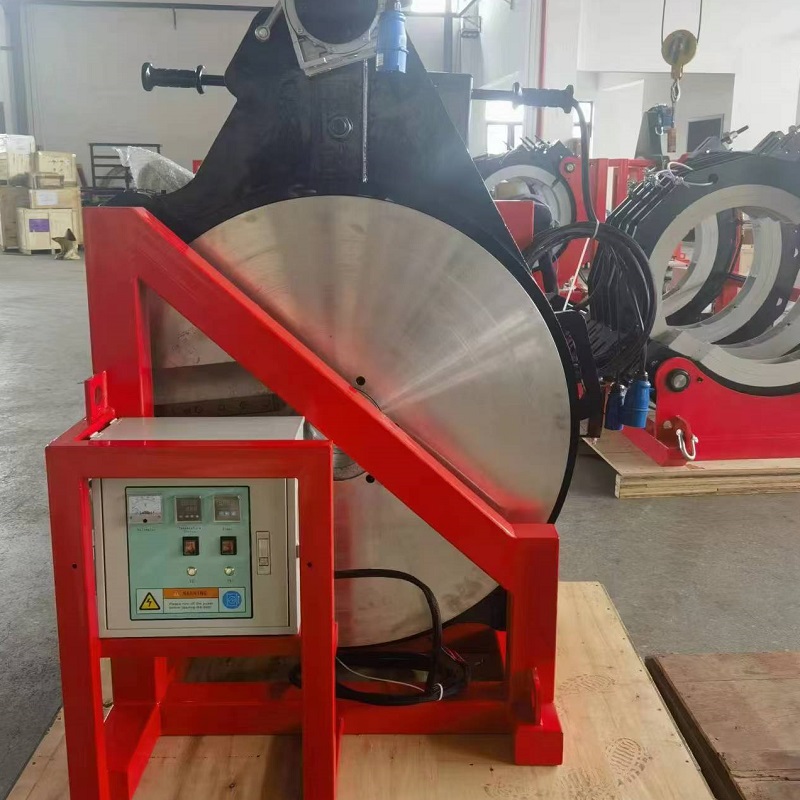

Pipe butt fusion welding machine 1000mm is for big size plastic PE pipe welding. The control cabinet and hydraulic station is united to one single unit, which is easier to operate. Anti-explosion industrial plug adopted, this ensures the safe working. pipe welding machine are equipped with more stable 10cm clamping mould. Seperate temperature controlling system ensure stable temperature and the Daikin teflon painting can stop the tube from sticking to the the mould. Shearing plate is driven by gear which is more stable too. We use two route time meter, can record the heat up and cooling time. The machine comes with high precision anti-vibration pressure meter, it works well in low temperature and the data is precise.

Model	SHJ1000-SHY
Capacity	800，900，1000mm (500,560,630,710 in option)
Voltage	380v±10% 50hz
Environment temperature	minus5 to 40 ℃
IP standard	IP54
Pipe material	PE,PP,PVDF
Ground resistance	more than 1MΩ
Max.working pressure	6.3Mpa
Heating plate max.temperature	270 degree
Heating plate temperature variation	±10℃
Hydraulic cylinder piston size	50.24cm2
Oil tank	8L
Total power	23.2kw
Heating plate power	18kw
Shearing plate power	3kw
Hydraulic station power	2.2kw
Weight of main frame	1200kgs
Weight of heating & shearing plate	564kgs
Weight of hydraulic station	60kgs
Packing size of main frame	235x180x174cm
Packing size of heating & shearing plate	210x145x104cm
Packing size of hydraulic station	80x59x50cm

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
