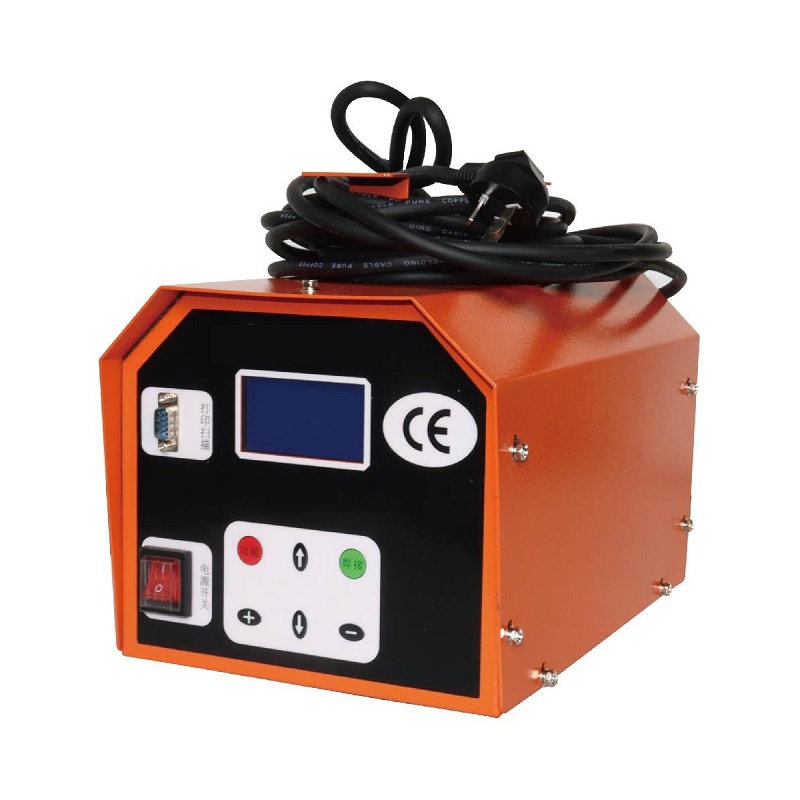

Electrofusion pipe welding machine

Category hydraulic pipe butt fusion welding machine

Strong and durable Joints: Electrofusion welding creates a fusion joint that is as strong as the pipe itself, ensuring a reliable and long-lasting connection.
Precisely controlled process: The welding parameters can be precisely controlled and monitored, allowing for consistent and reliable welds.
Versatility: Electrofusion welding is suitable for a wide range of pipe sizes and materials, making it adaptable to various applications.
Leak-free joints: The fusion joint formed by electrofusion welding is typically leak-free, as the melted material solidifies without gaps or voids.

Electrofusion pipe welding machine

INTRODUCTION OF ELECTROFUSION PIPE WELDING MACHINE

Electrofusion welding machines having been used in water supply, gas distribution, and industrial piping systems industry.
It offer an effective way for joining plastic pipe fittings, ensuring the good performance of the overall piping system.
Suitable for PE,PP,PVDF,PPR pipes electro fusion welding.

TECHNICAL DATA OF ELECTROFUSION PIPE WELDING MACHINE

Model: 350A
Welding Range (mm): 20-315
Input Voltage: 220V+/-20% 50-60Hz Single phase
Outpower Power: 3.5Kw
Output Voltage: DC60V
Output Current: DC60A
Work environment: -5-50℃
Relative humidity: no more than 80%
Protection grade: IP54
Time Range: 1-9999 seconds
Time accuracy: no more than 1%
Packaging size: 39×25.5x32cm
Weight: 23kgs

OPERATION OF ELECTROFUSION PIPE WELDING MACHINE

Measure the depth of the pipe fitting.
Mark the corresponding length on the pipe.

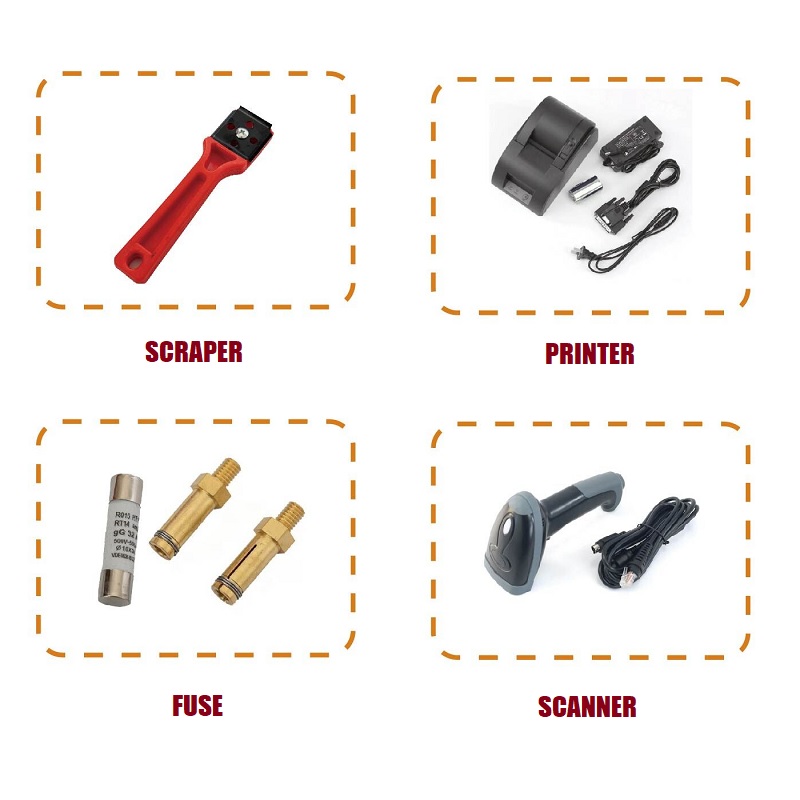

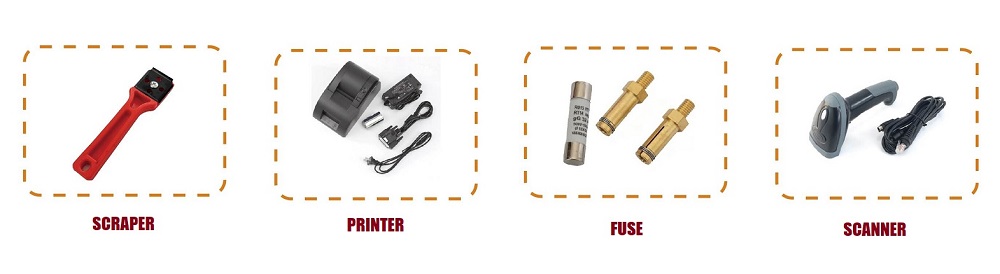

Use the scraper standard with machine to remove the oxide layer on the pipe surface.
Insert the two pipes into the pipe fittings.
Insert the output wire of electrofusion pipe welding machine into the electrofusion fitting.
Connect the scanner.
Scan the parameters on the pipe fittings, the parameter of pipe fitting will be recgonized automatically by machine without manual setting.
Press the welding button to start welding process.
After welding is completed, print the welding data.

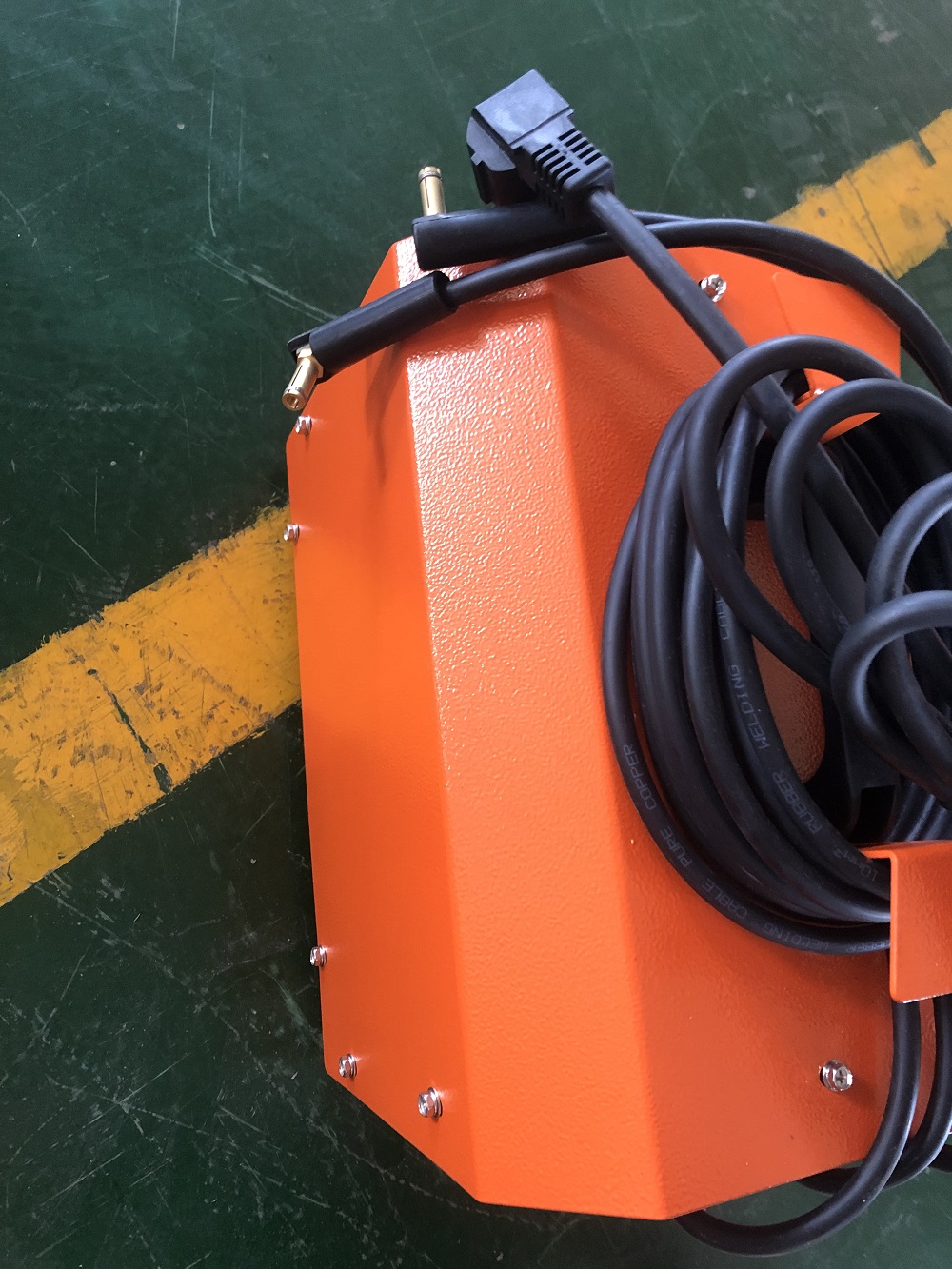

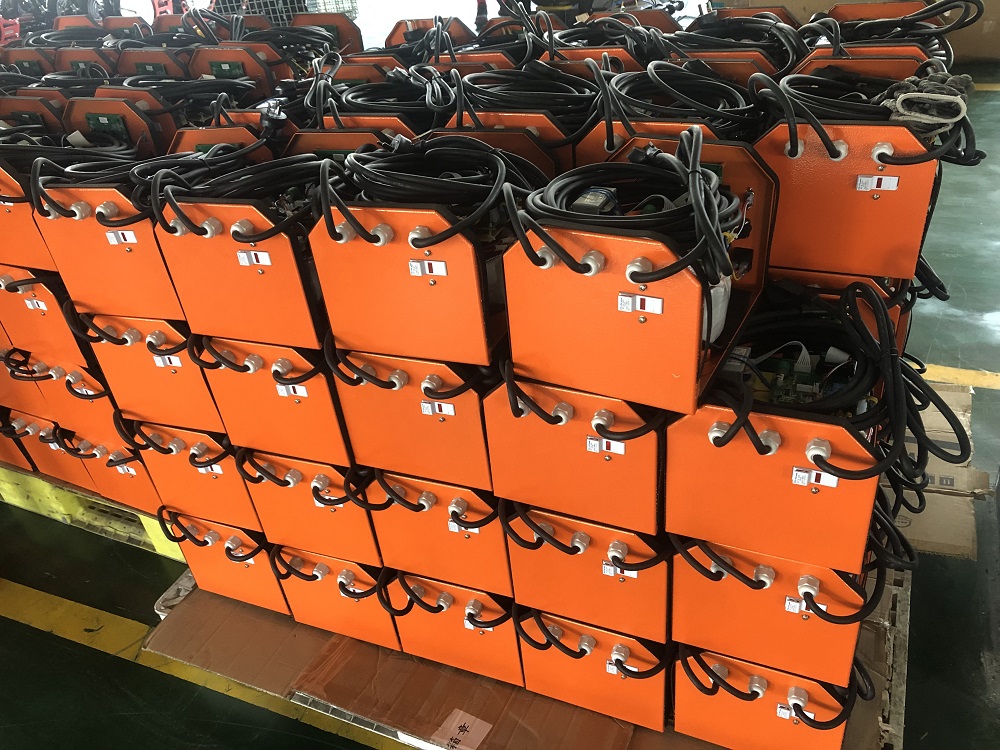

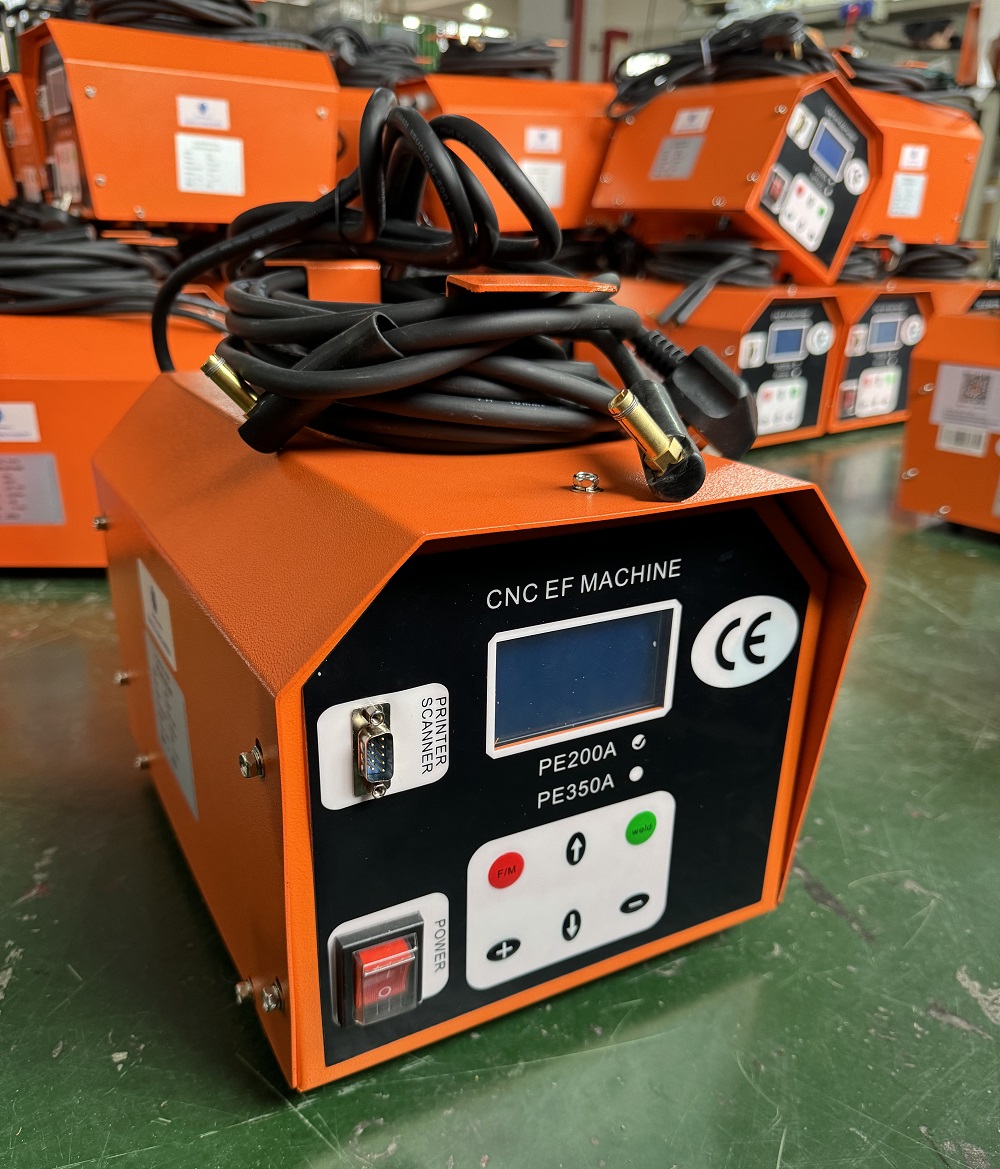

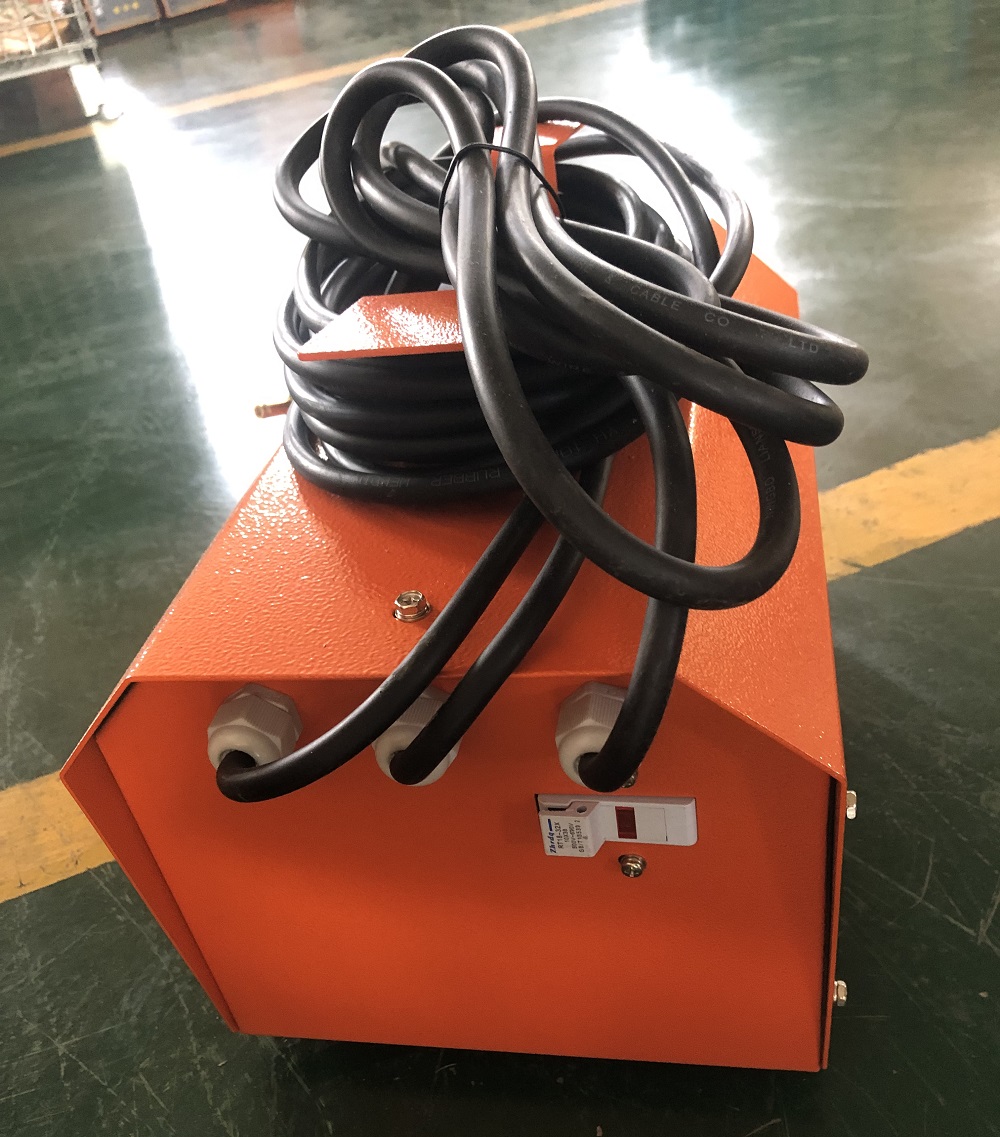

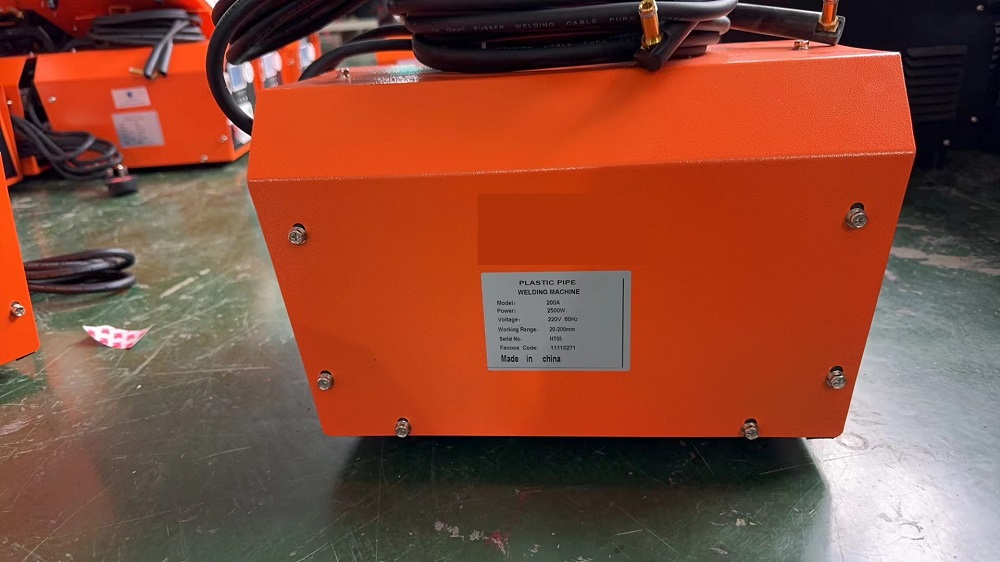

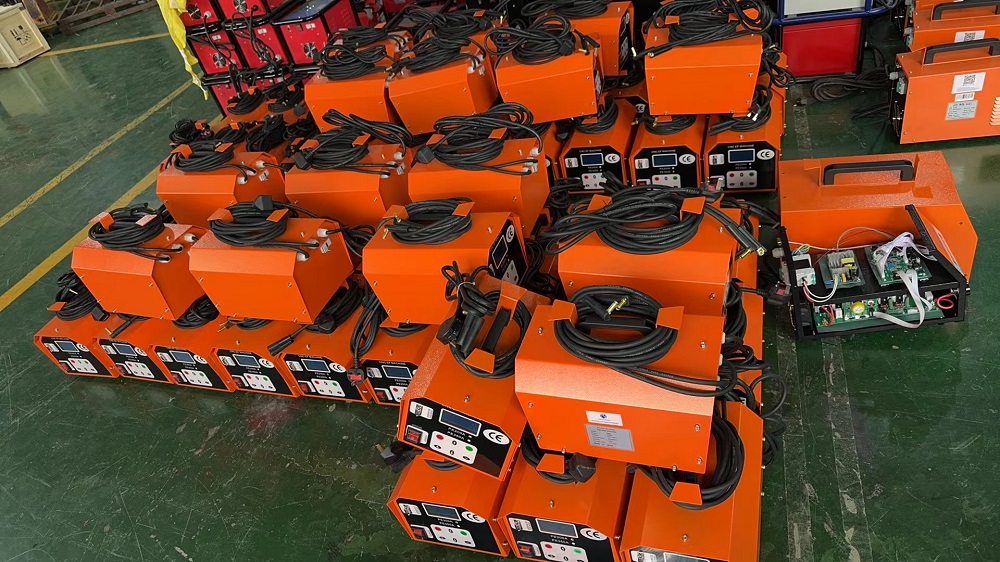

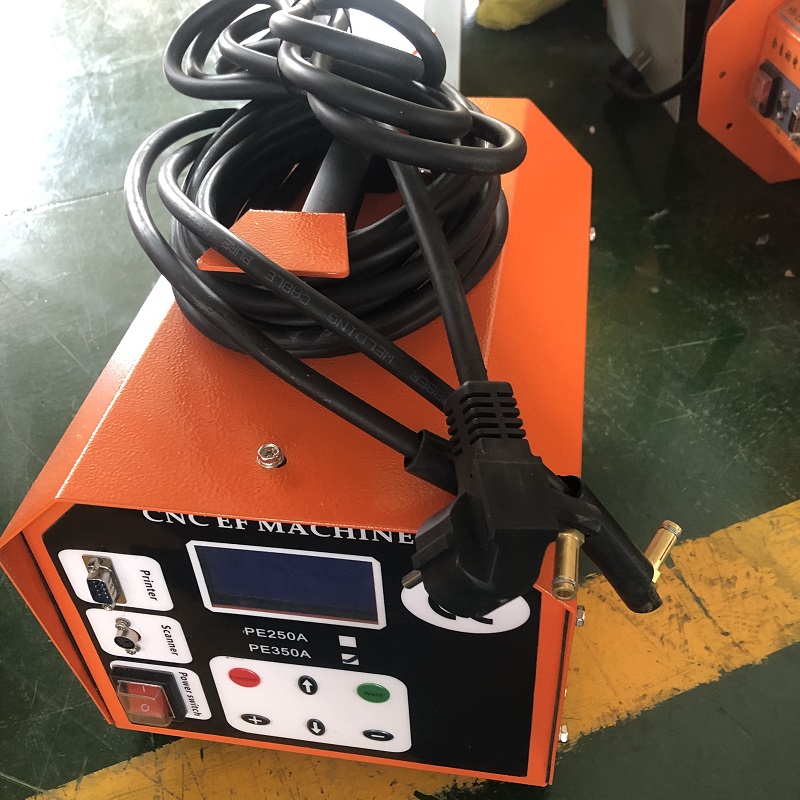

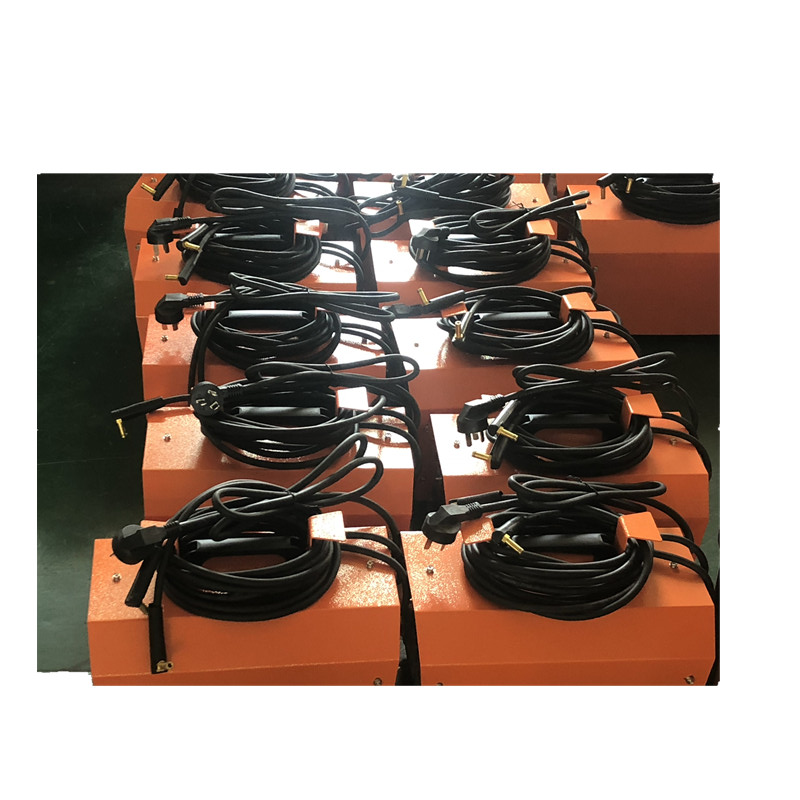

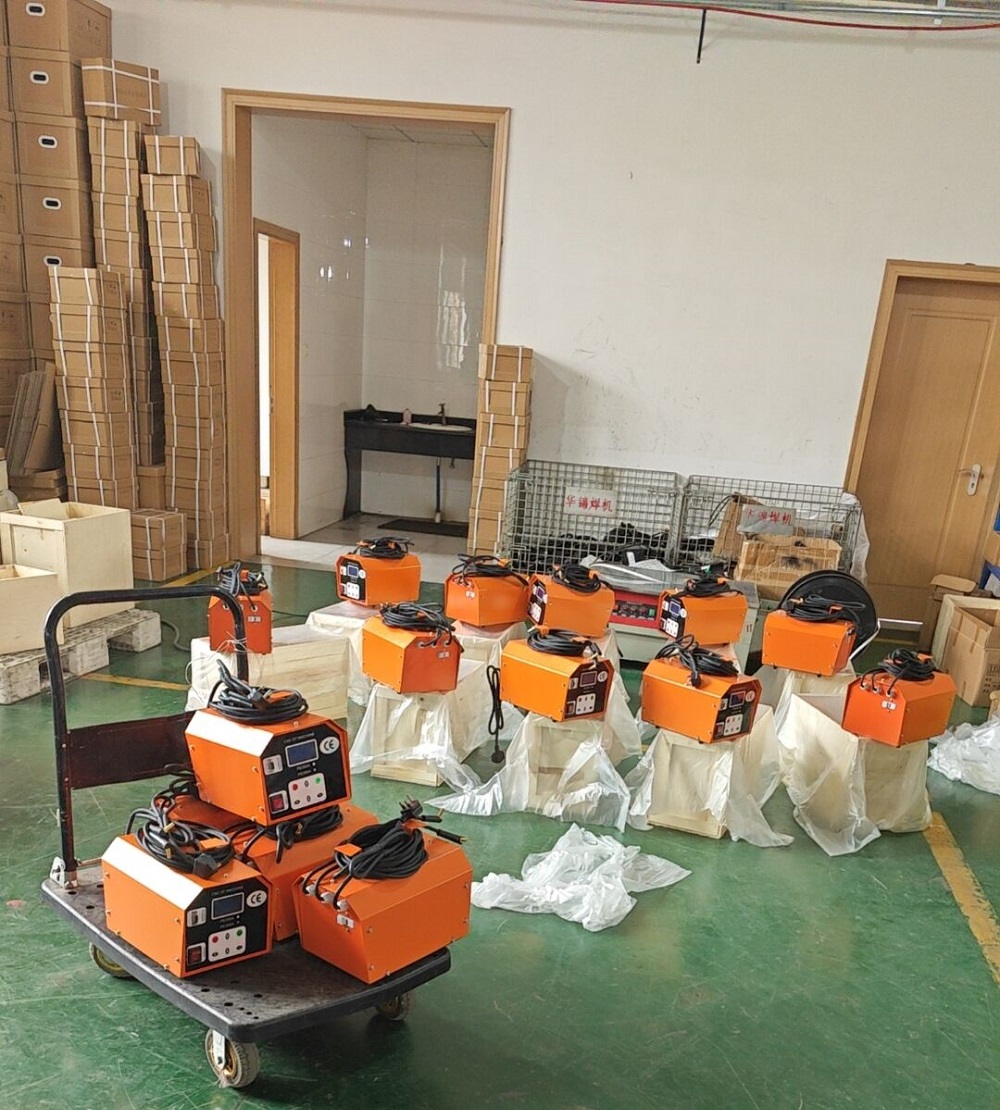

PICTURES OF ELECTROFUSION PIPE WELDING MACHINE

Connect the electrofusion to the right power source.

SCRAPING
It is very important to note that abrasive materials, should never be used in place of a scraping tool. Clean with a minimum 70% isopropyl

alcohol concentration with a clean cloth, with no additional additives, the pipe and the fitting.

INSERT
Insert the pipe inside the fitting. Select the right size pipe and the right size fitting that you are going to weld.

ALIGNMENT
Place the pipe with the fitting on the area to be fused. Ensure that the pen mark in the pipe is visible. Make sure to set the alignment in the right

position and be ready to align the pipe with the right clamp.
