PE pipe threading machine

Categories hydraulic pipe butt fusion welding machine, PE Pipe Welding Machine

CNC pipe threading machine for all kinds of plastic pipe such as PE pipe, PVC pipes.
Both inner side and outer side threading on plastic pipe.

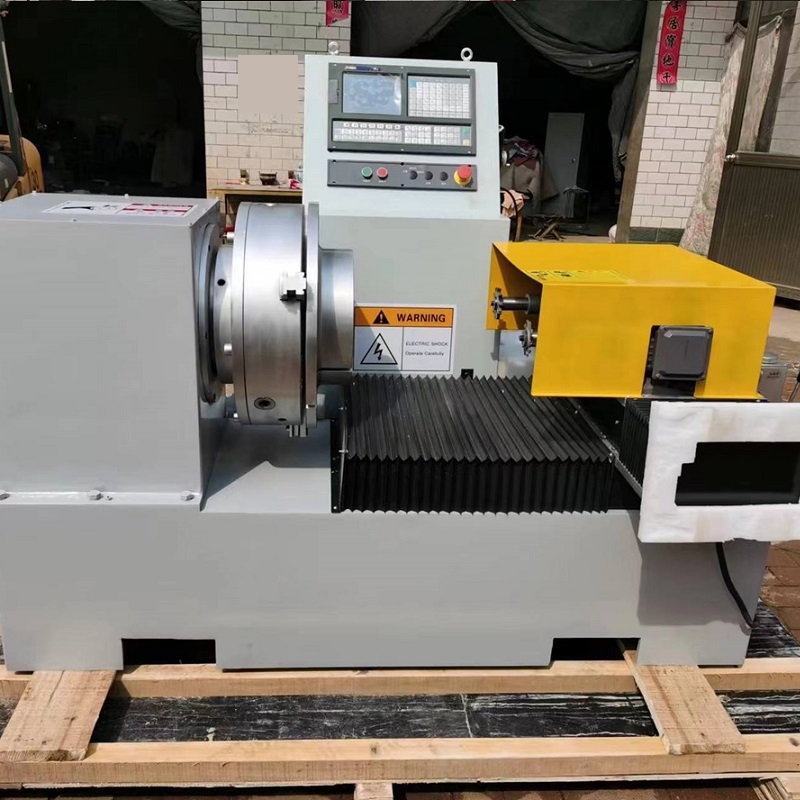

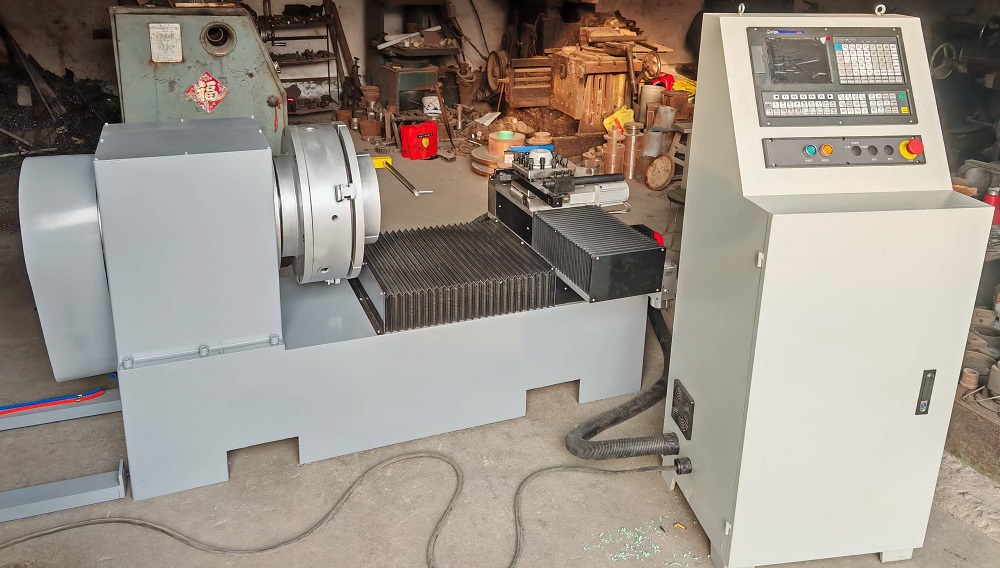

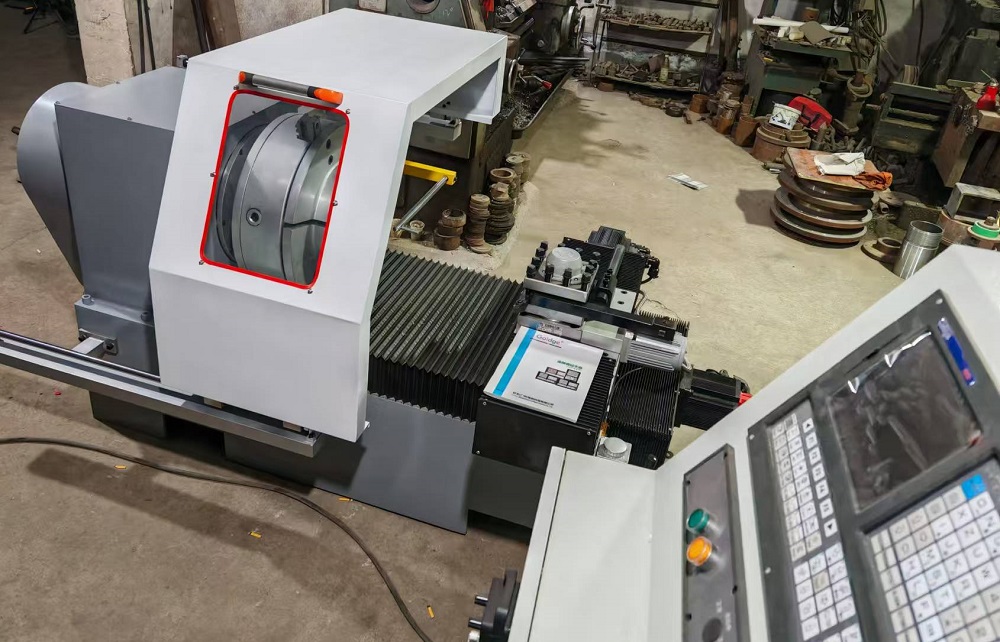

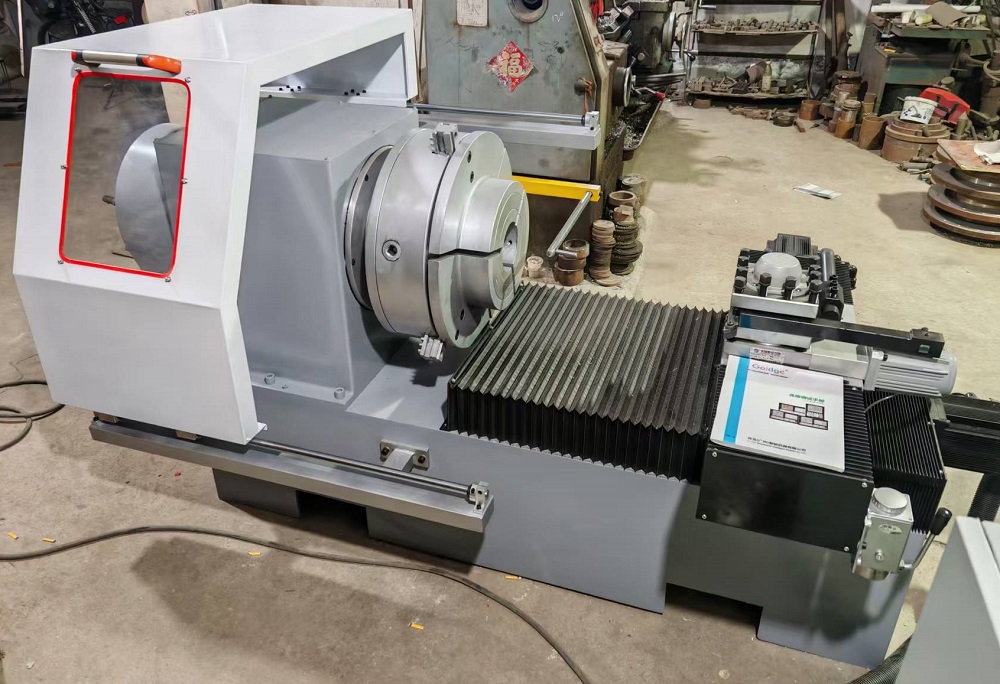

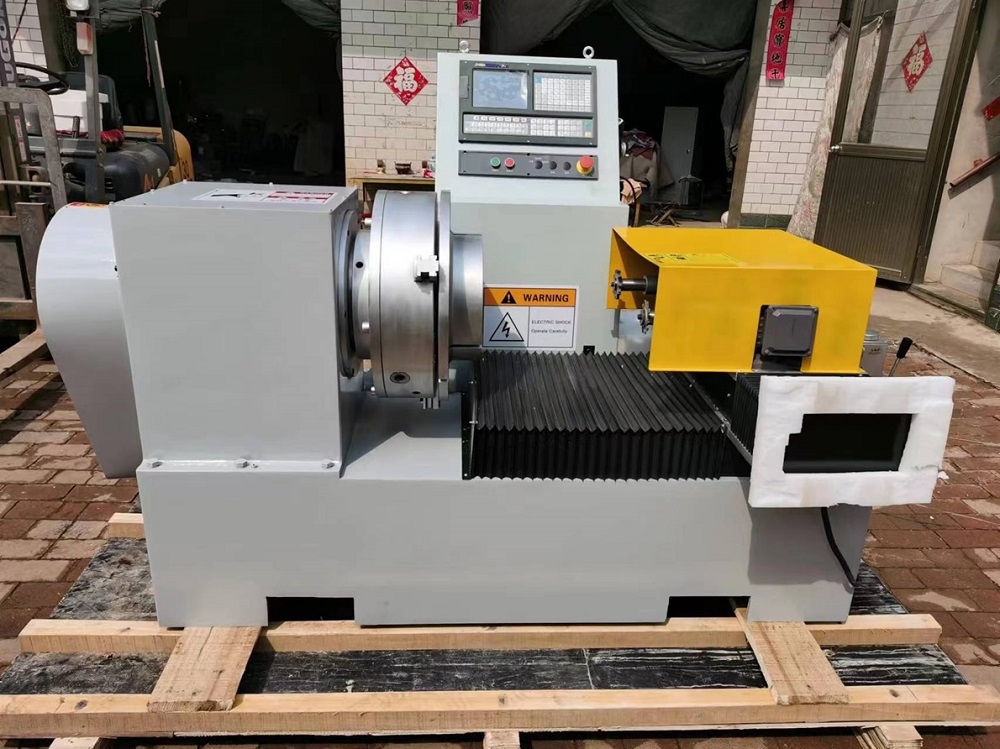

PE pipe threading machine

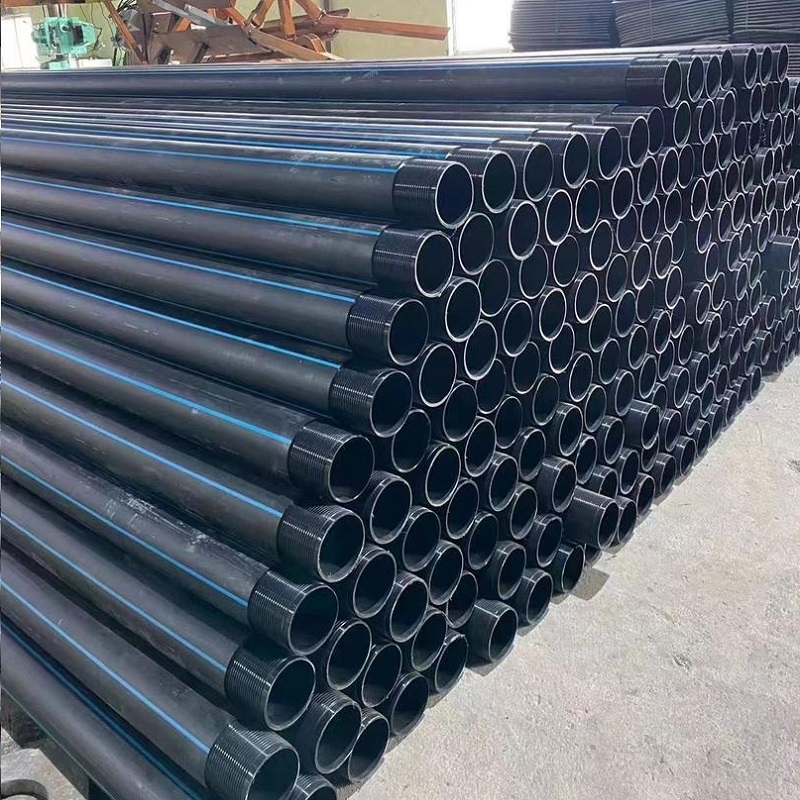

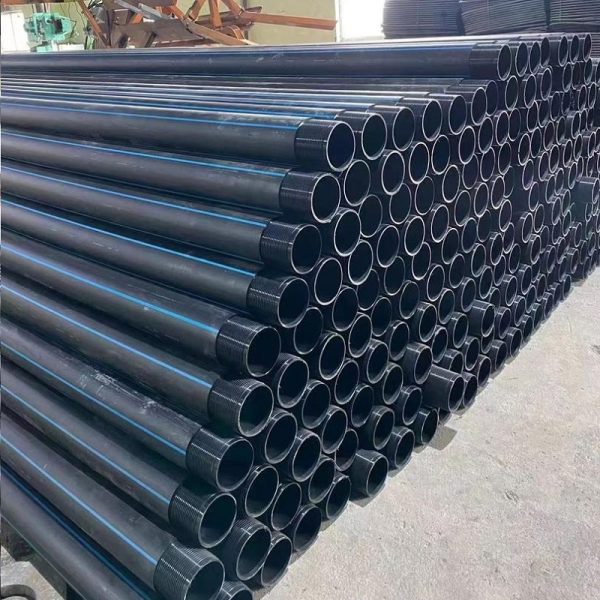

Plastic pipe threading machine is for cutting both inner and outer thread on PE pipes and tubes.

TECHNICAL DATA

No.	Name	Unit	Data
1	Control system		CNC
2	Machining diameter	mm	110-200
3	Machining length	mm	Maximum 180
4	Pipe length	cm	30cm-600cm

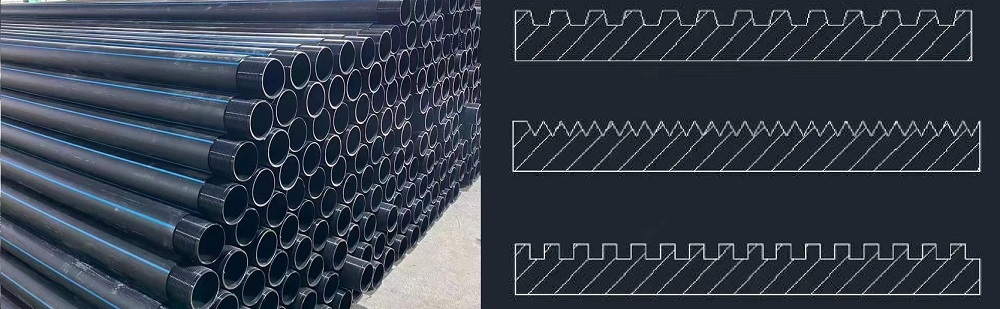

5	Threading teeth shape		30ºT-shape, 60ºV-shape, 90ºSquare-shape,
6	Thread teeth distance	mm	1-12
7	Automation grade		Semi-automatic, need worker to feed and pick out pipe, the other process like threading are fully automatic
8	Main motor	kw	3kw main motor 1pc

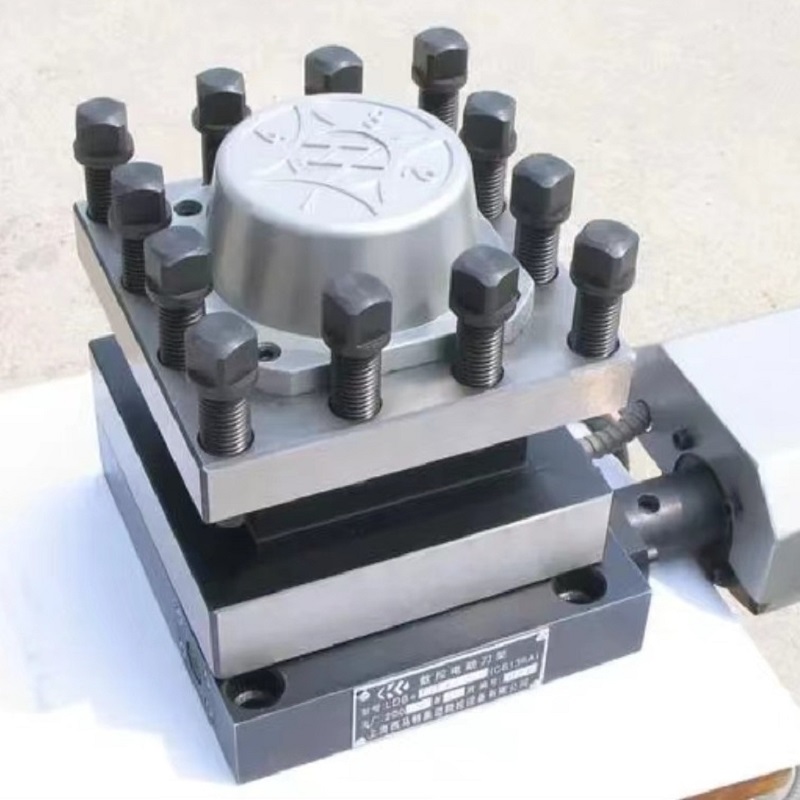

9	Blade motor		4 station numerical blade 1pc
10	Servo motor		7.7NM, 2.0kw x 2pcs
11	Blade moving method		Precise ball screw rod driven

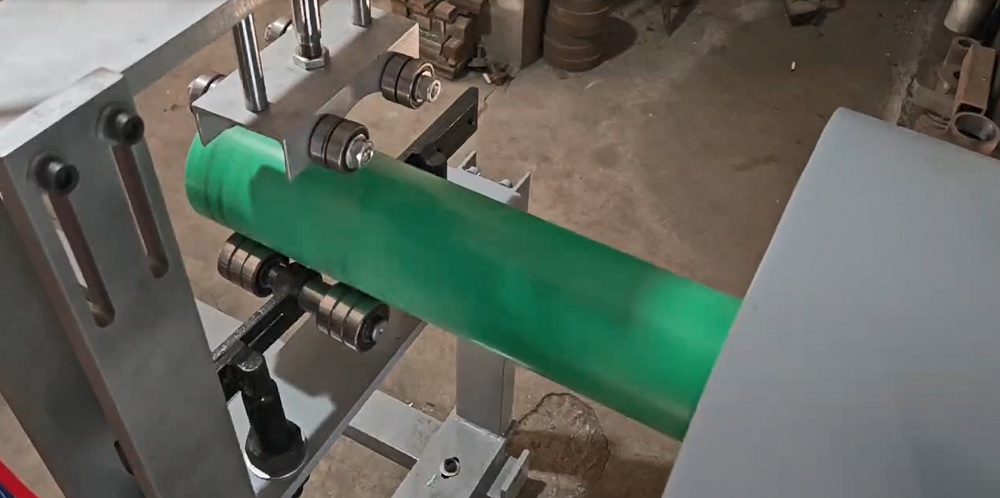

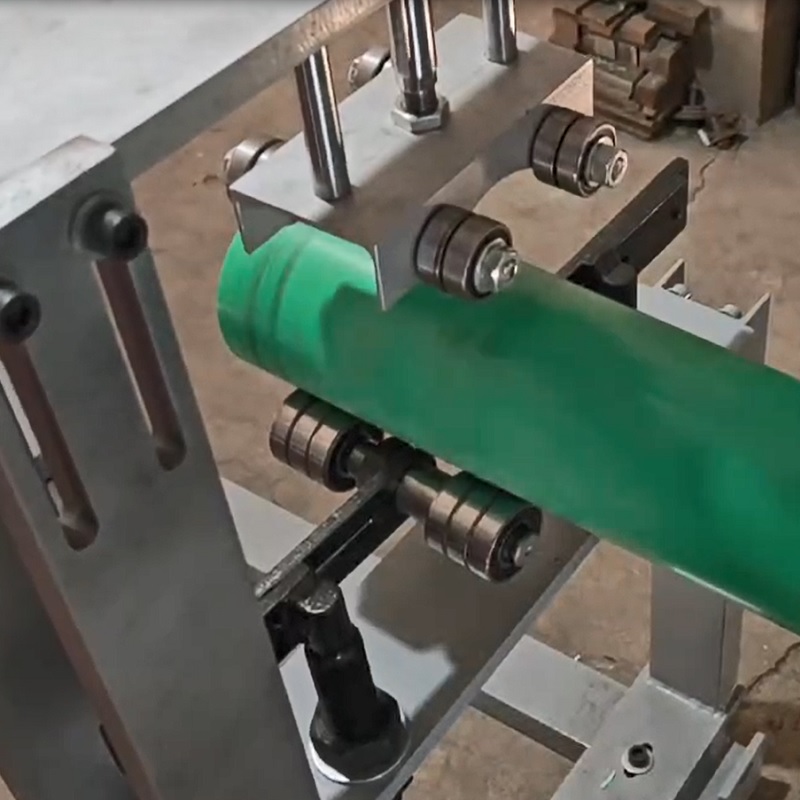

12	Clamping pipe method		Manual operating centerline clamp
13	Machine size	cm	240x150x170(H)

VIDEO

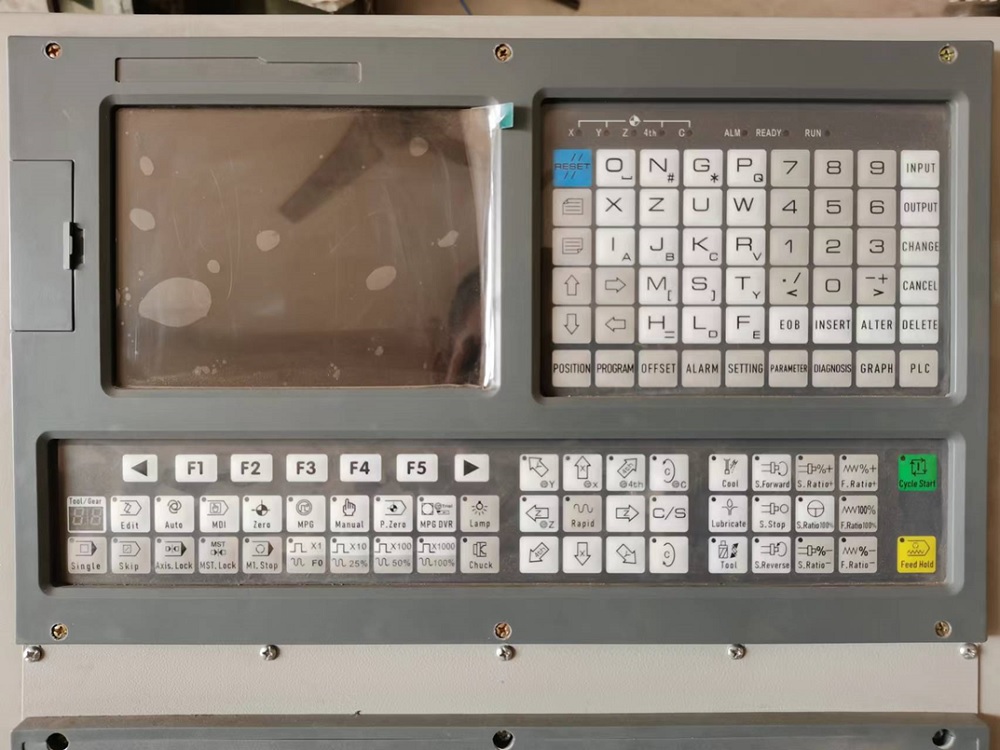

CNC controlled, high precision plastic pipe threading.
Easy to operate, one-button operation can realize automatic positioning from the end face, automatic processing and thread processing and automatic exit of all processing actions of the tool (semi-automatic, manual loading and unloading, automatic thread processing)
High efficiency, inner and outer diameters and threads are processed in one time, no need for tool back and forth processing
High thread quality, one-time forming with forming tools, thread angle and depth can achieve the best effect at one time
Easy to adjust, our factory engineers set the program and store it in the control panel before leaving the factory, customers can freely adjust and replace the forming tool according to the pipe diameter, processing pitch and length

Stable processing, no manual positioning is required for processing pipes using this machine, the tool automatically processes the end face and thread, no need to worry about dimensional deviation due to inaccurate positioning
This machine is a thread processing equipment dedicated to plastic pipes, with good thread processing effect, high efficiency and no damage to pipes
