Roll pipe groover 6 inch compatible with 916

Category Pipe Grooving Machine

Cam-type feed actuation — translated into minimum operator effort to form roll grooves.
Durable cast-iron housing withstands extensive field use.
Light weight, only 17kg without RIDGID300 power drive.
Integral feed handle is part of overall unit, no extra tools required.
Easy serviceability – drive and groove rolls are easy to change.

Roll pipe groover 6 inch compatible with 916

INTRODUCTION OF 6 INCH PIPE GROOVING MACHINE

Roll pipe groover 6″ compatible with 916 is used to form standard roll grooves in steel, stainless steel and aluminum pipes. It is a portable

lightweight roll groover designed for 11/4” – 6” Schedule 10 pipe (11/4” – 3” Schedule 40 pipe). The grooves are formed by a grooving roll

fed into a drive roll according to the specifications required for mechanical coupling systems. Only depth of the groove adjustment is needed.

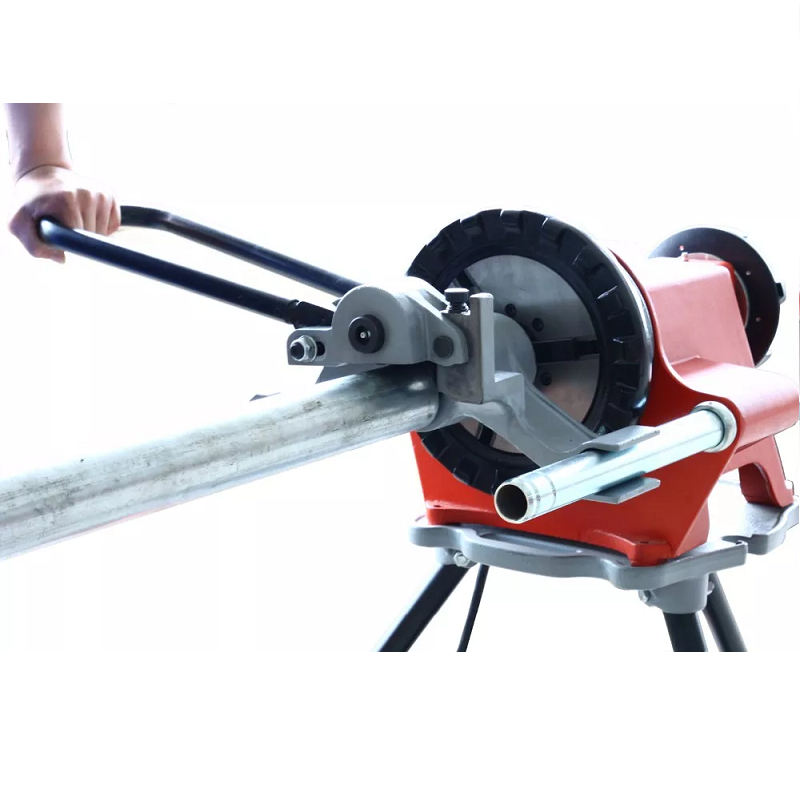

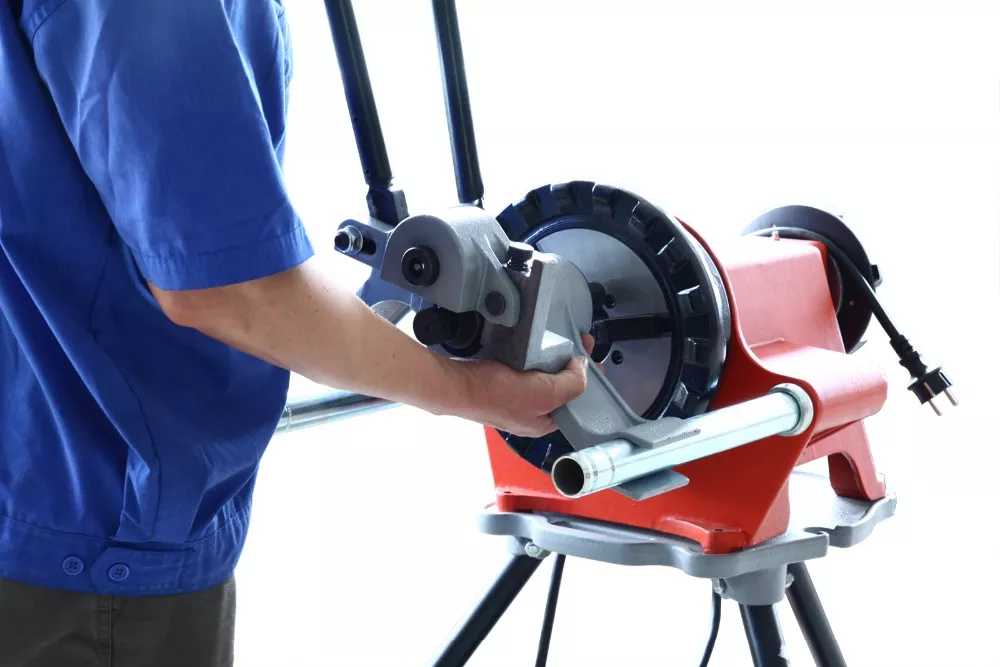

The STGC02 Roll Groover can also be used with the RIDGID300 Power Drive.

The model STGC02 roll groover is one of the most durable, high-efficiency and light weight portable unit available.

It is built with a solid, durable cast-iron housing, yet is light enough for easy transportation.

The STGC02 features a single stroke feed mechanism that allows for accurate operation quickly and effortlessly.

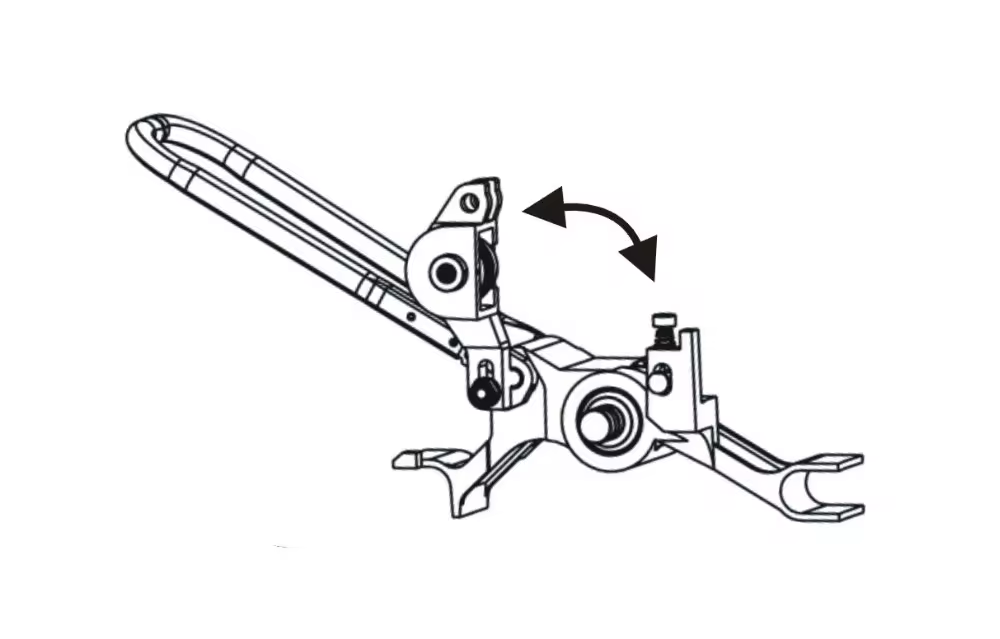

Cam-type feed actuation – translated into minimum operator effort to form the rolled grooves.

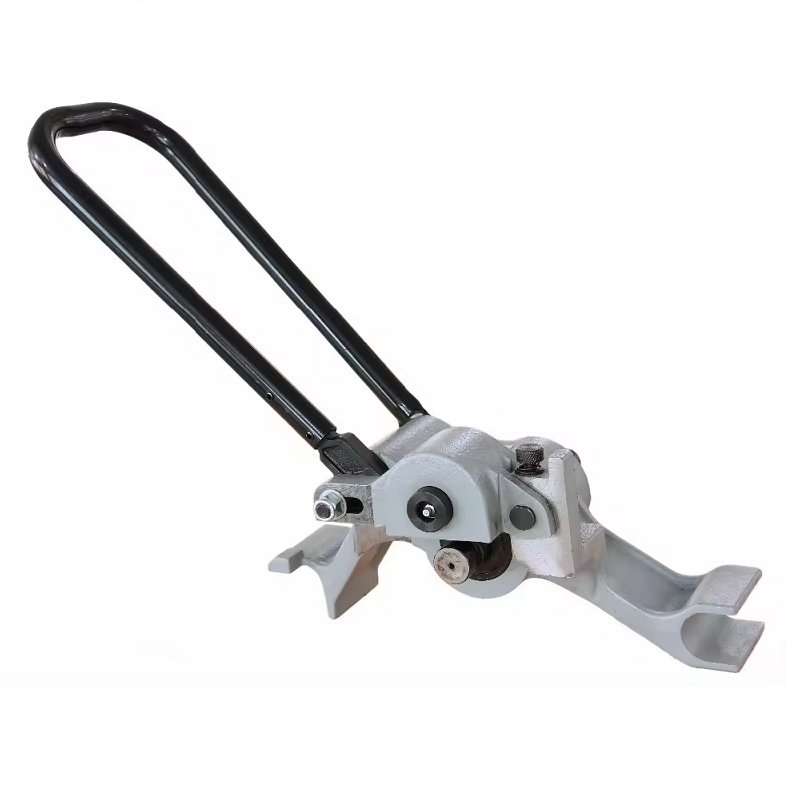

Light weight, only 17kg. Integral feed handle is part of overall unit, no extra tools required.

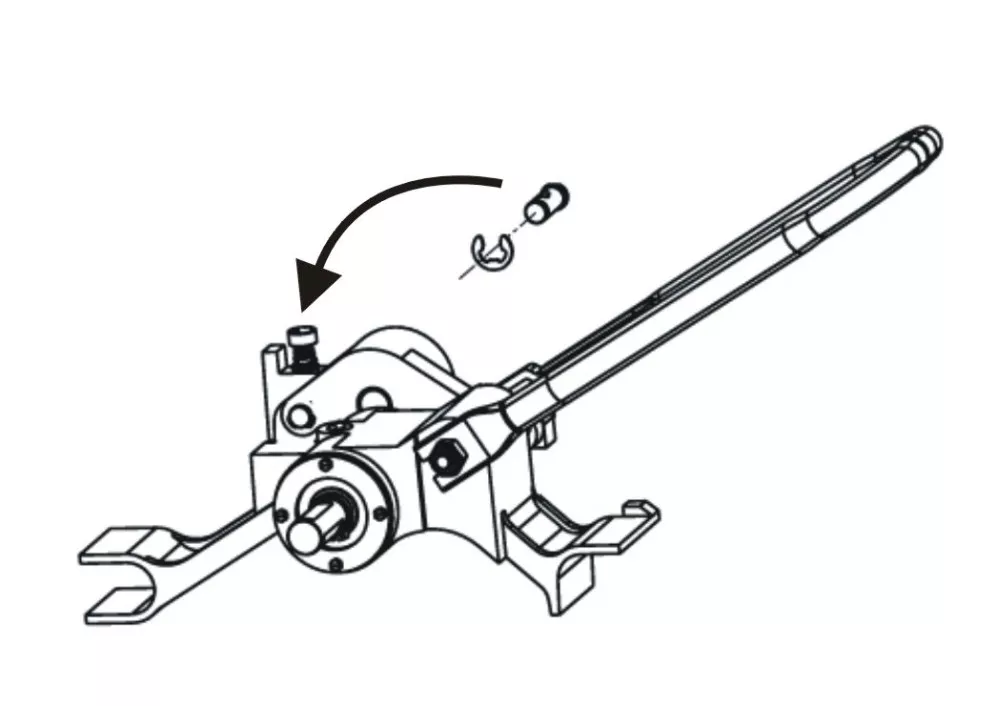

The drive and groove rolls are easy to change.

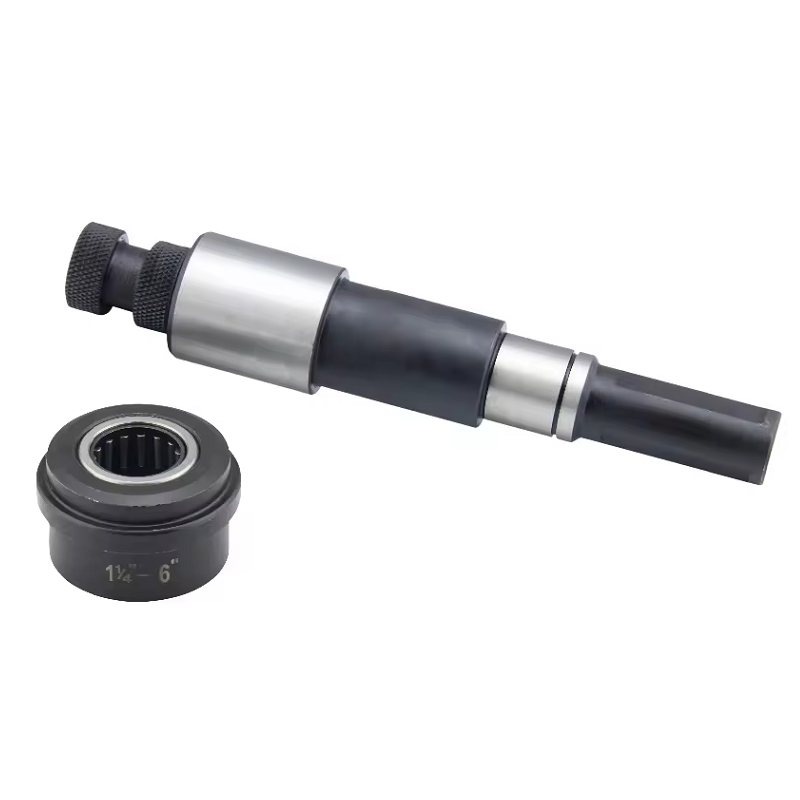

Standard with one 1 1/4″-6″ roll groove set for steel. (1¼”-6″ Sch. 10,1¼”-3″ Sch. 40)

TECHNICAL DATA OF 6 INCH PIPE GROOVING MACHINE

Roll pipe groover 6″ compatible with 916
Model: STG02
Capacity: 1 1/4″-6″ Sch.10 steel, stainless steel
1 1/4″-3″ Sch.40 steel, stainless steel
Motor: 1500w universal type
Speed: 36 RPM
Chuck: Hammer type with replaceable, rocker-action jaw inserts
Roll set: 1 1/4″-6″
Pipe support is optional
Weight(power drive and grooving part): (54+21.5)/(44+17)kgs
Size: (61x52x47)+(74x30x23)cm

VIDEO OF 6 INCH PIPE GROOVING MACHINE

Specifically designed for field service.
Cam-type feed actuation.
The grooving part is light weight, only 17kgs.
Integral feed handle is part of overall unit, no extra tools required.

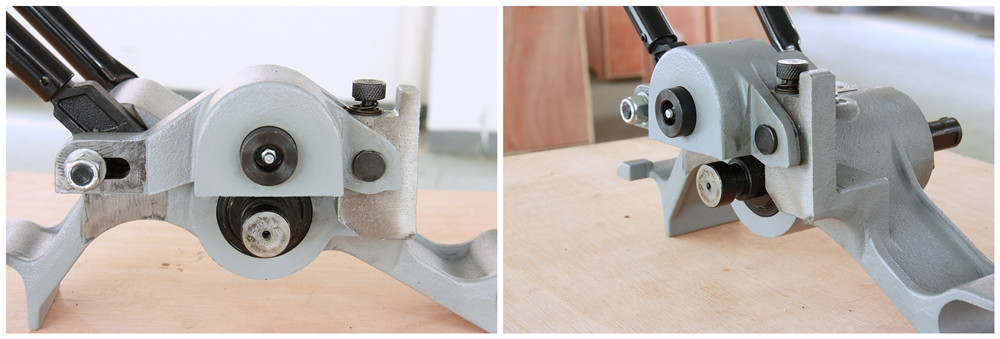

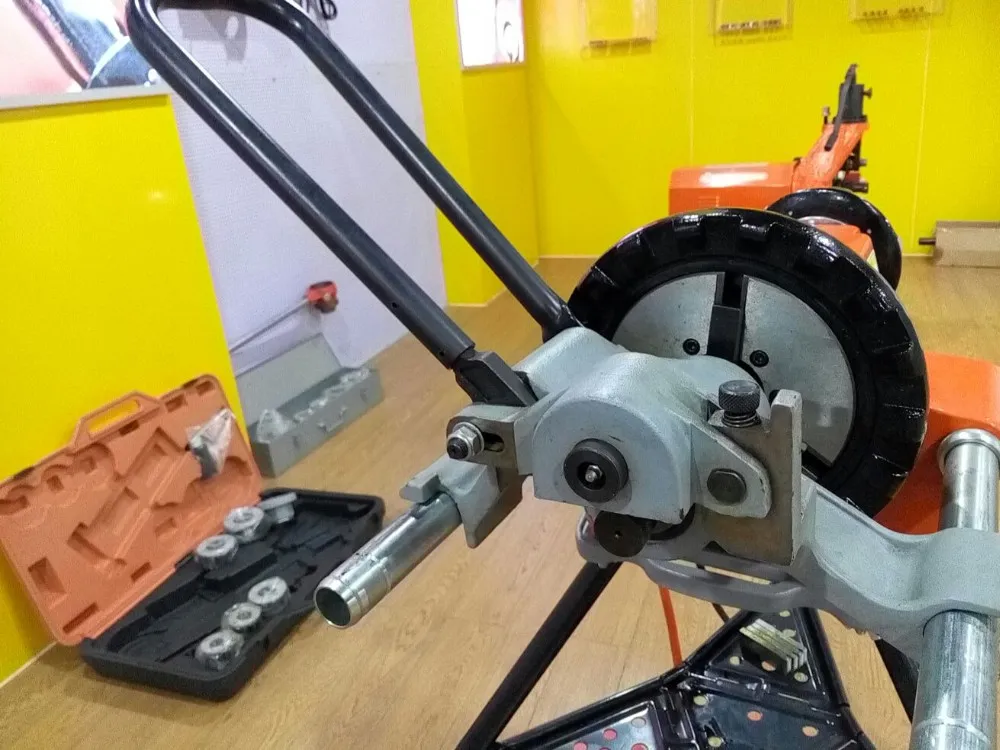

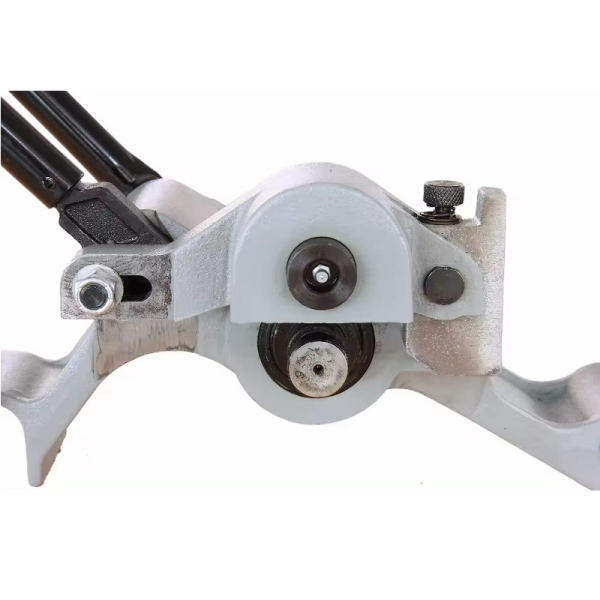

PICTURES OF 6 INCH PIPE GROOVING MACHINE

Buy an extra threading head, the machine will become 2 in 1 threading and grooving machine.

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
