1″-12″ Roll Grooving Machine
- Starts from one inch to twelve inch grooving.
- 1100w powerful motor.
- Special technique in hydraulic pump building, no oil leaking.
1″-12″ Roll Grooving Machine
INTRODUCTION OF 12 INCH PIPE GROOVING MACHINE
STG-5X 1″-12″ Roll grooving machine is a motor driven roll groover designed with an advanced hydraulic feeding system. It can form roll
grooves in carbon steel and stainless steel pipe of 1″ thru 8″ diameter SCH10/40 and 10″ thru 12″ SCH10/20 pipes. The grooves are formed

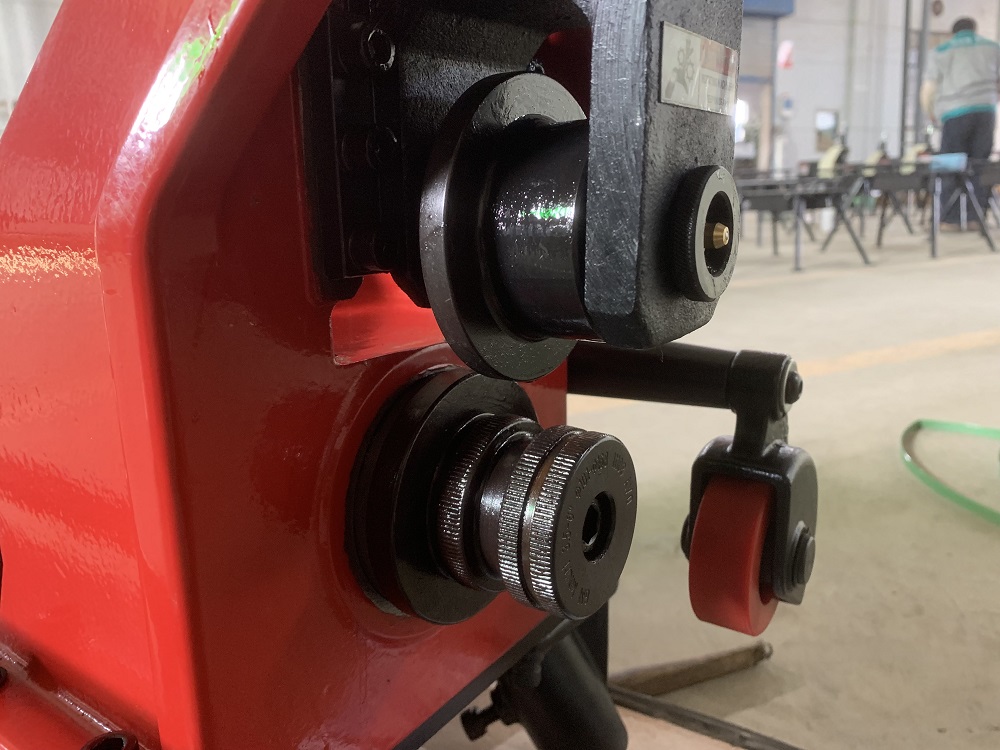

by mechanically advancing a grooving roller into the pipe which is supported by a knurl drive roller. The only adjustment necessary is for the
depth of the groove. Unique integrated drive roller with draft shaft reduces the chance of drive shaft break. The STG-5X Electric Hydraulic
Roll Groover is an ideal tool for light and medium volume work on job site and for workshop in-house fabrication on all 1″~12″ pipes.
TECHNICAL DATA OF 12 INCH PIPE GROOVING MACHINE
Model: STG-5X
Universal electrical hydraulic 1″-12″ roll grooving machine
Single phase motor 1100W
Max pipe wall thickness (mm): 8.0mm

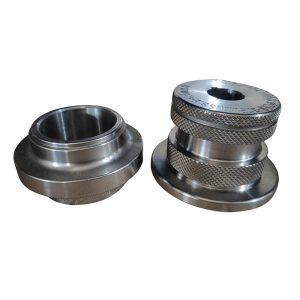

Roller set for 1″ ~1½”
Roller set for 2″ ~ 6″
Roller set for 8″ ~ 12″
5-feet joint-ball pipe support 1″~12″
Foot switch and Pipe stabilizer

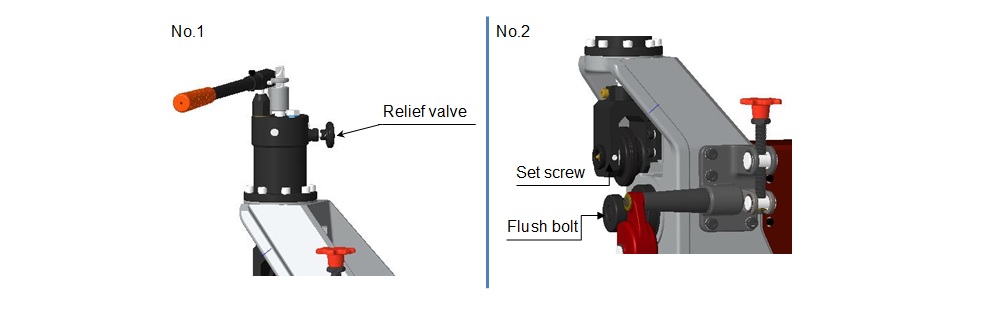

How to change the roll sets
1. Open the relief valve on hydraulic pump counter-clockwise and raise the groove roller to the top position. Refer to No. 1.
2. Remove Groove Roll. Loose the setscrew on the side block with a 3/16” (5mm) hex wrench. Grasp the groove roller steady and draw out
the groove shaft from the side block. Refer to No. 2.
3. Remove Drive Roll. Loose the flush bolt in the center of drive shaft with a 5/16”(10mm) hex wrench. Grasp the knurl drive roller and draw
the drive shaft out.
4. Reverse step 2 & 3, install suitable groove roller and drive roller shaft as demanded.
All rollers may use flat bearing. Do not drop the bearings and covers.

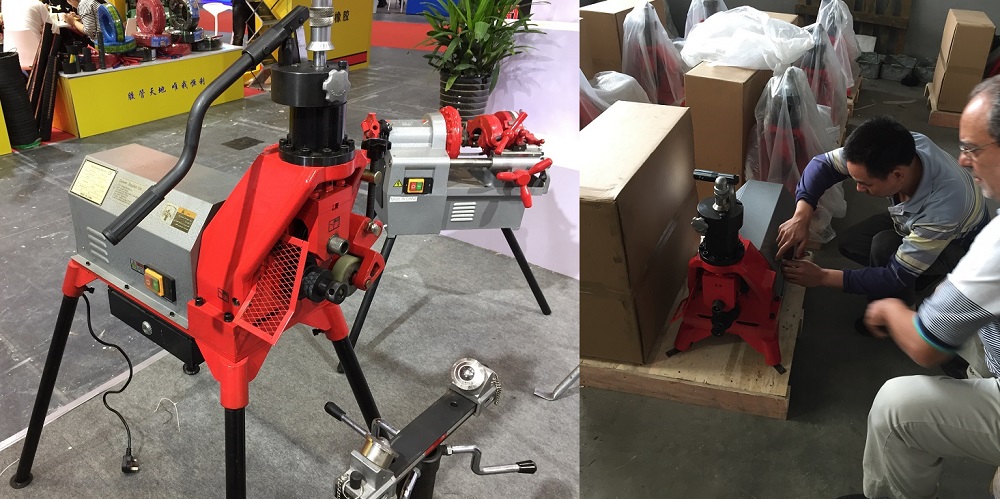

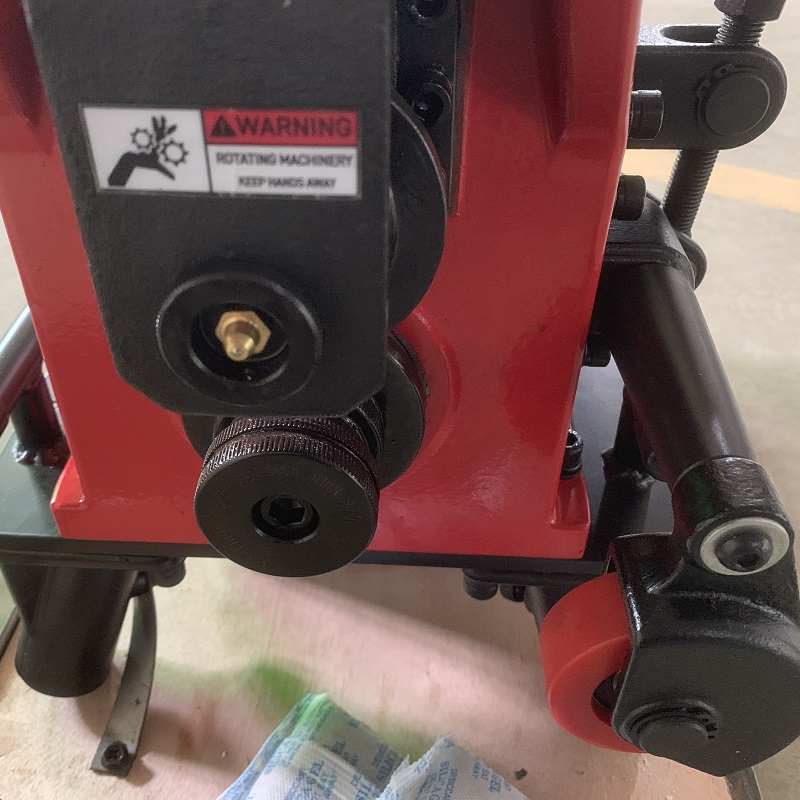

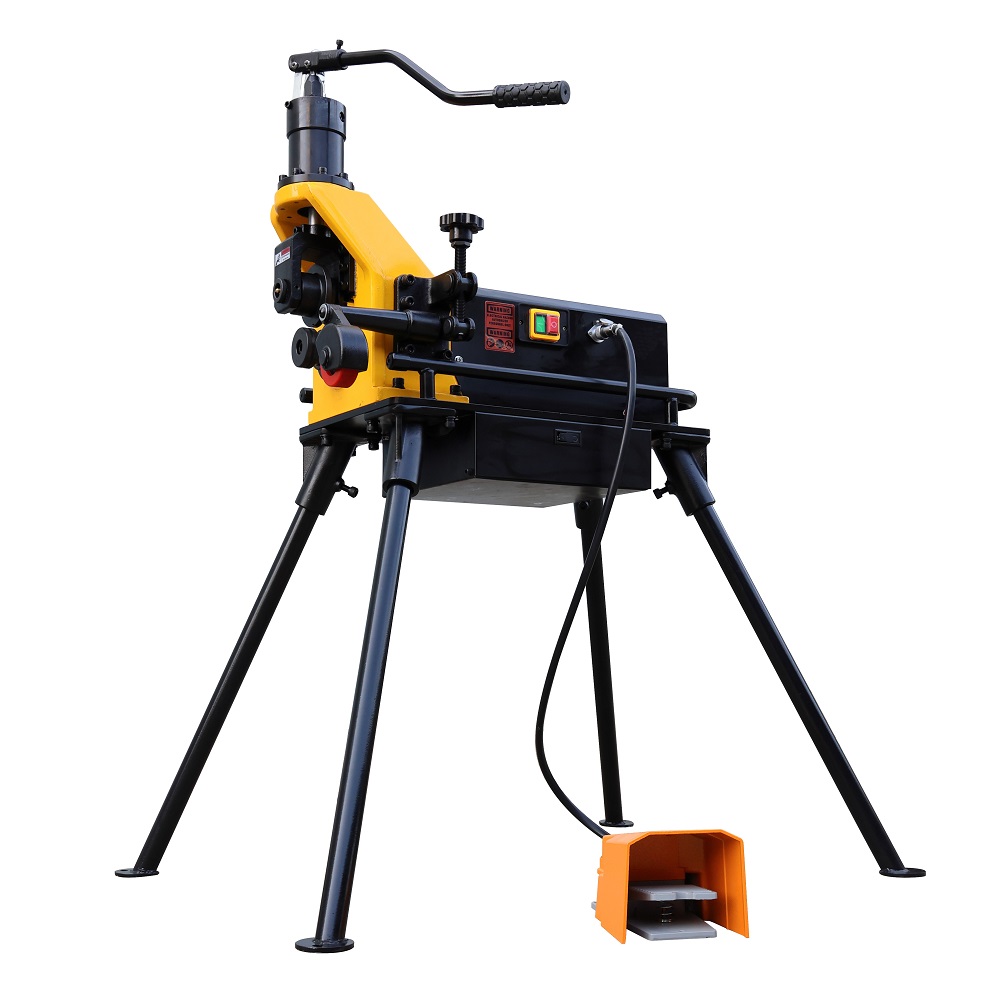

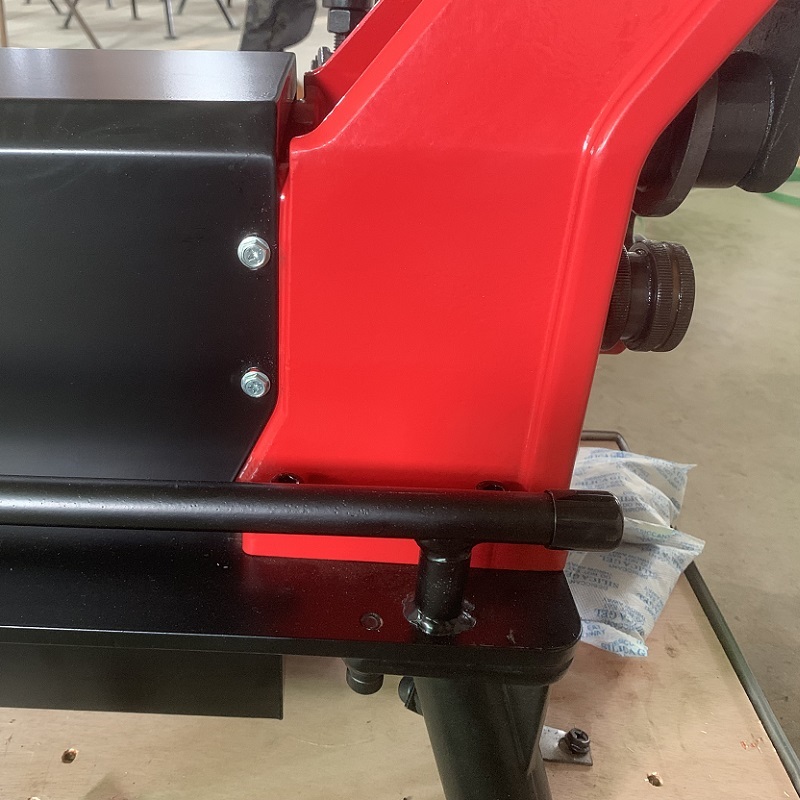

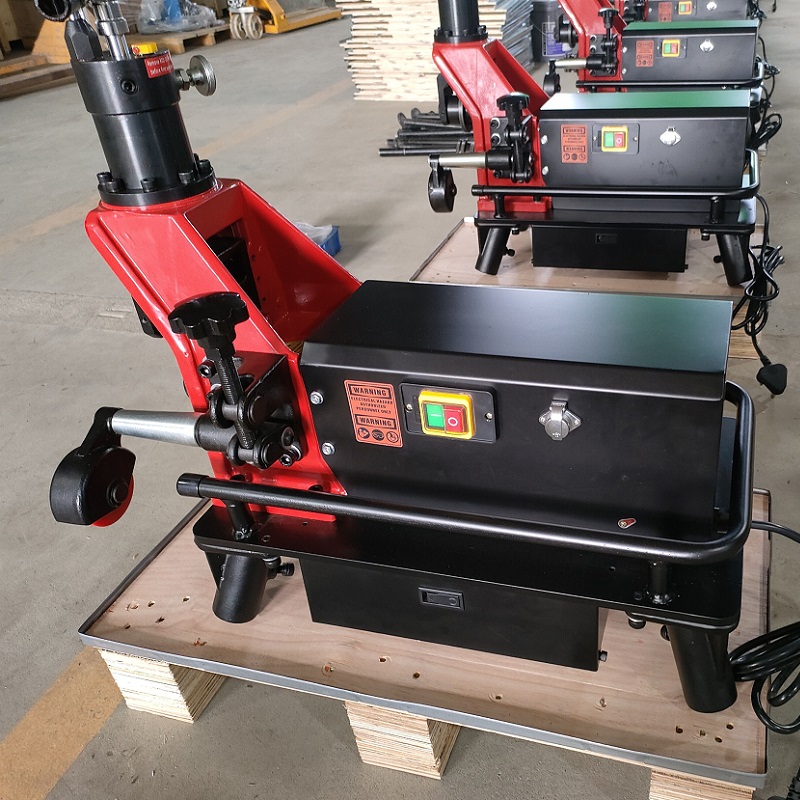

PICTURES OF 12 INCH PIPE GROOVING MACHINE

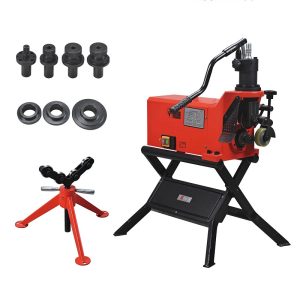

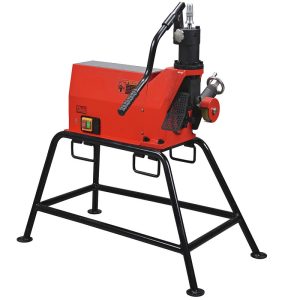

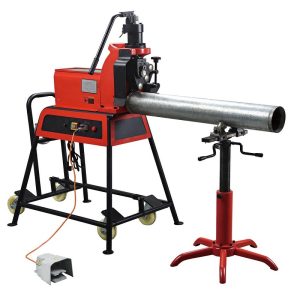

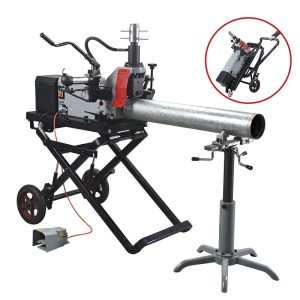

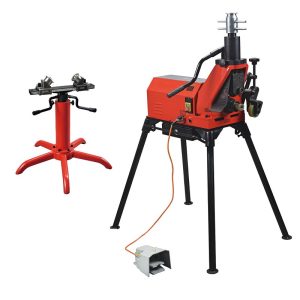

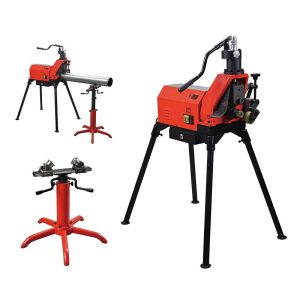

Below model roll grooving machine 2″-12″ is in option.
F.A.Q.
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

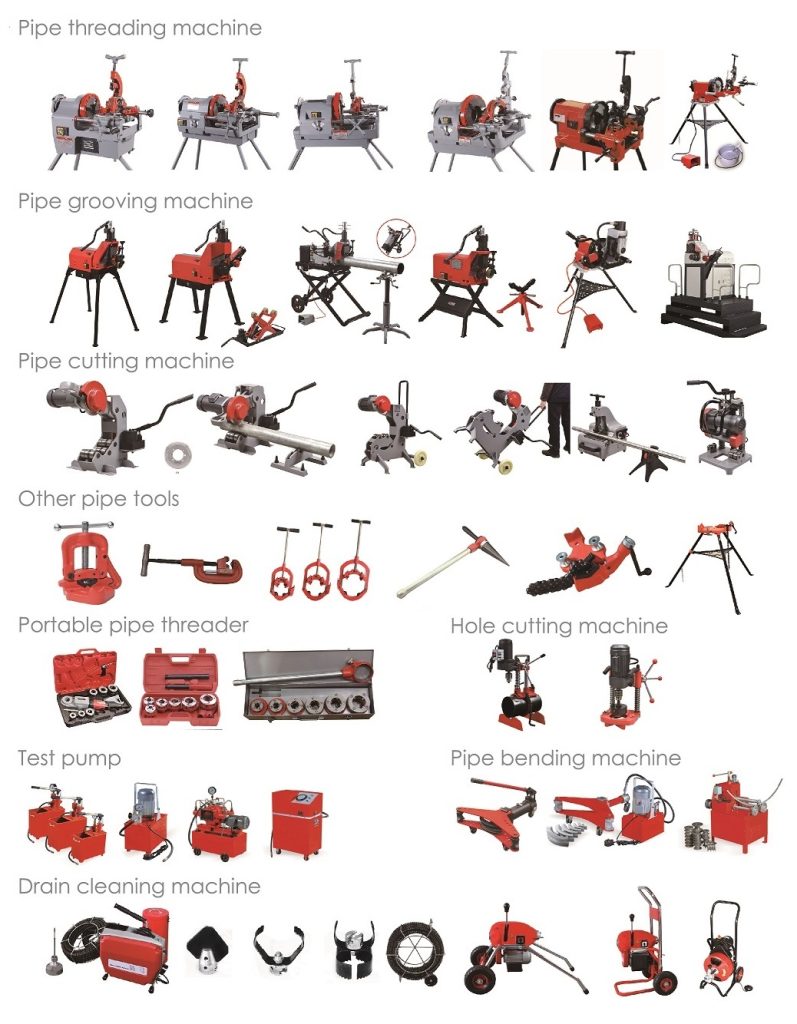

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
