Pipe threader 1/2″-2″ compatible with ridgid 300 power unit

Categories pipe threader dies compatible with RIDGID REX ASADA, Pipe Threading Machine

Pipe threader 1/2″-2″ compatible with ridgid 300 power unit
Threading and grooving machine 2in1
916 918 grooving machine groover mounted

Pipe threader 1/2″-2″ compatible with ridgid 300 power unit

INTRODUCTION OF THREADING MACHINE INTERCHANGEABLE WITH RIDGID PIPE THREADER DIES

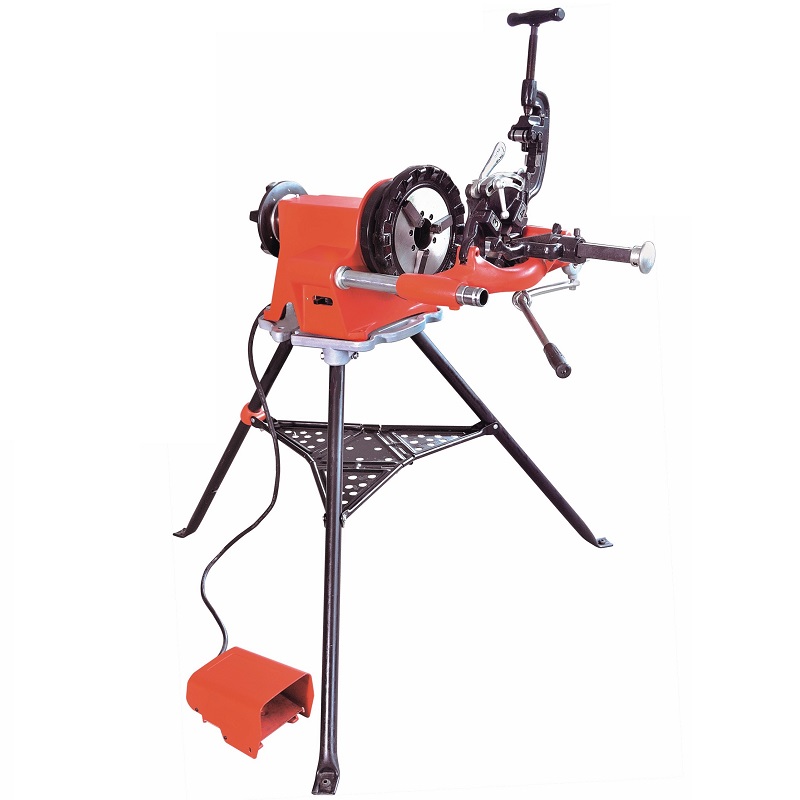

Pipe threader 1/2″-2″ compatible with ridgid 300 power unit

Heavy-duty proven performance.

Threads ¼”-2” pipe at 38RPM

Machine is work with the RIDGID ® 811A die head.

Machine is comingwith a Foot Petal. Free up your hands, safe work.

Each Parts on this machine are work with the RIDGID ® Model 300

Power drive isinterchangeable with RIDGID ® 300 Power Drive

Cutter Assembly work with RIDGID ® 360 Cutter

5 Flute Reamer Assembly work with RIDGID® 341 Reamer

Carriage work with RIDGID ® 311 carriage

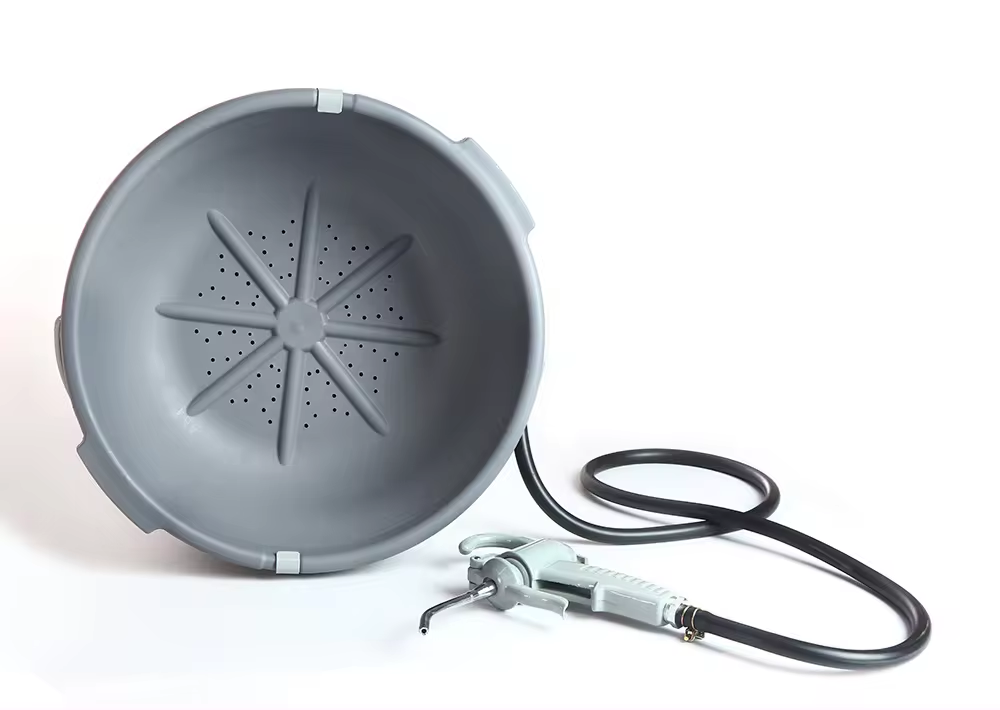

Oiler work with RIDGID ® 418 oiler

Stand work with RIDGID ® 1206 Three LeggedStand Tri Stand

Precision thread cutting for NPT/BSPT/Metric/BSPP/NPSM

Approved by CSA and CE standards.

TECHNICAL DATA OF THREADING MACHINE COMPATIBLE WITH RIDGID PIPE THREADER DIES

Pipe threader 1/2″-2″ compatible with ridgid 300 power unit

Model: STT50D

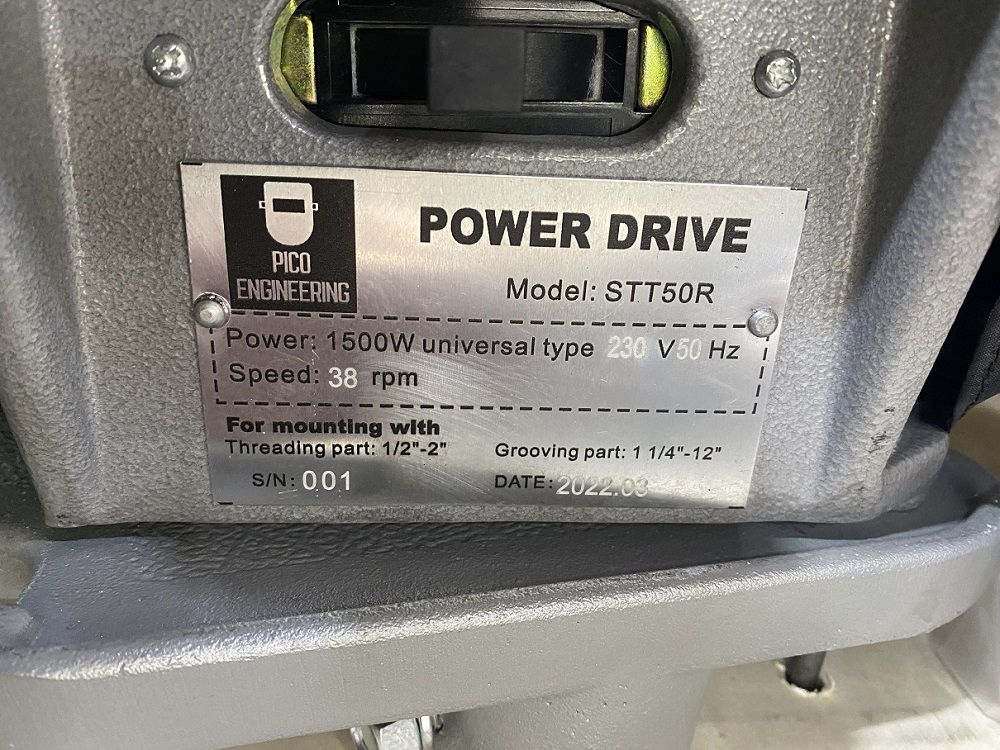

Motor: 1500w universal type

Speed: 38 RPM （57RPM is optional）

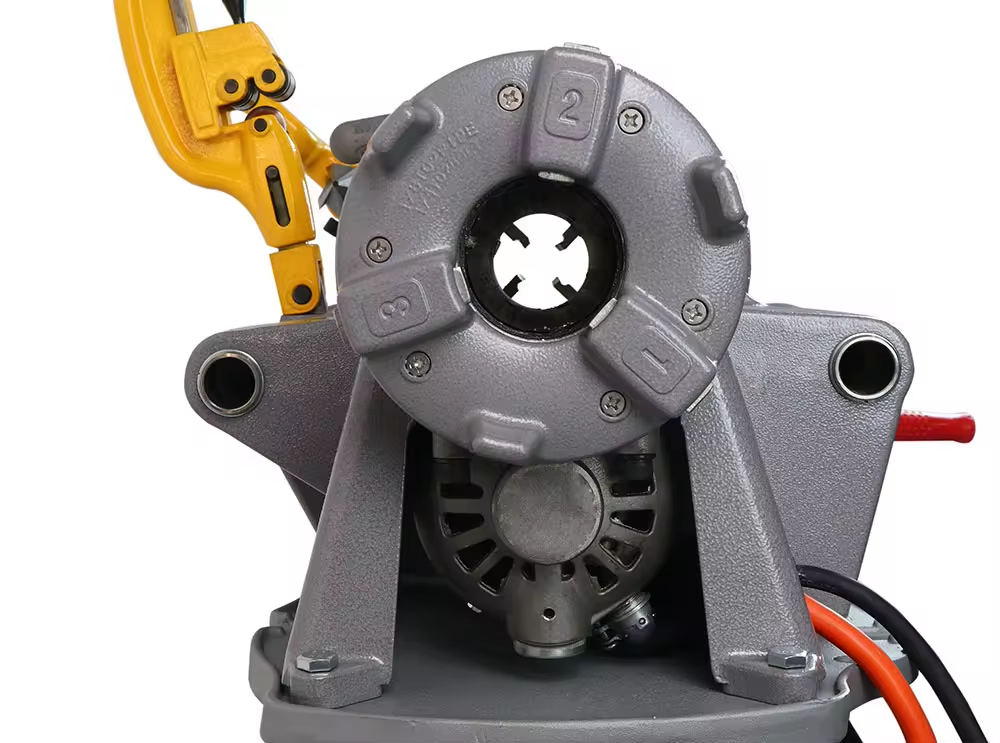

Die head (1/2″-2″): quick-open type, standard 811A (also compatible with RIDGID 815A)

Chuck: Hammer type with replaceable, rocker-action jaw inserts

Rear centering device: Cam action

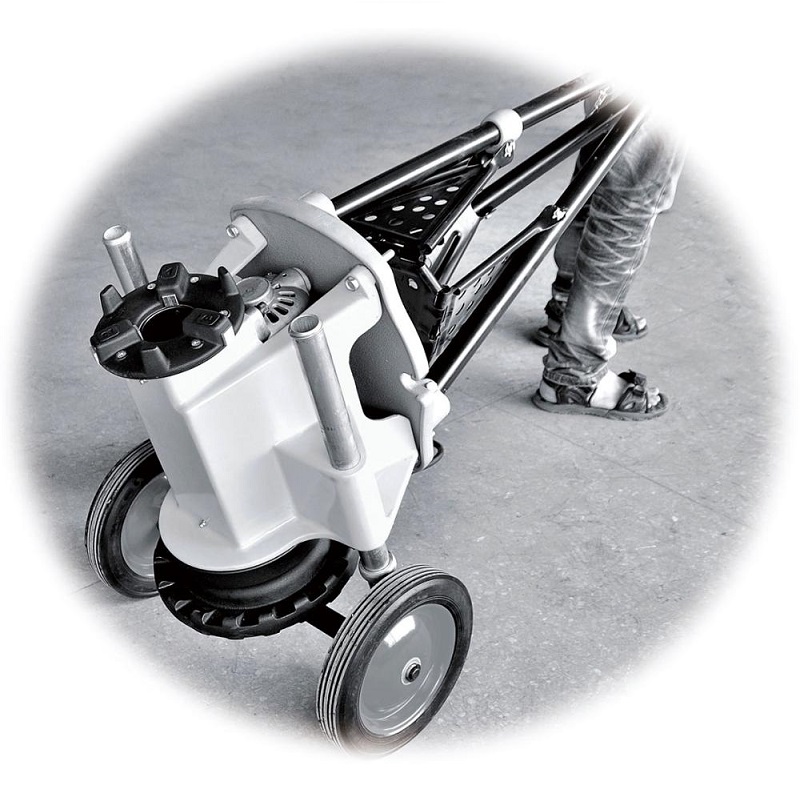

Standard equipment including: 1206 tri-stand, 418 oiler, foot switch, dolly

Standard with HSS dies

Can add grooving part to become grooving machine RIDGID916 and RIDGID918 type

CE & CSA certifiedPackage:

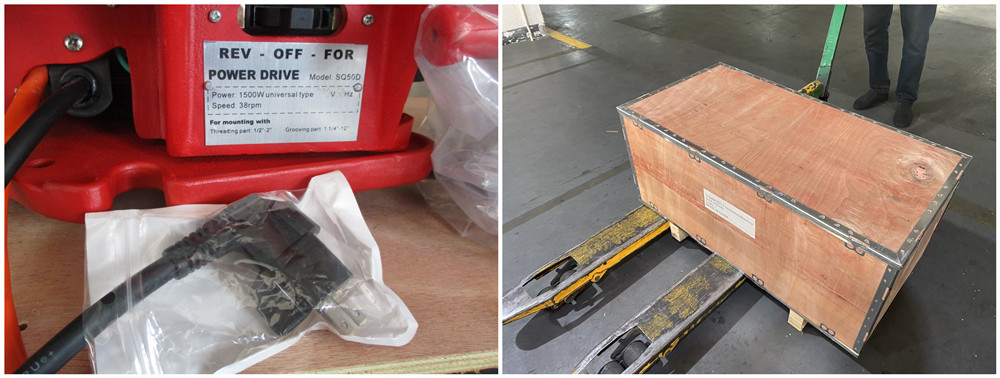

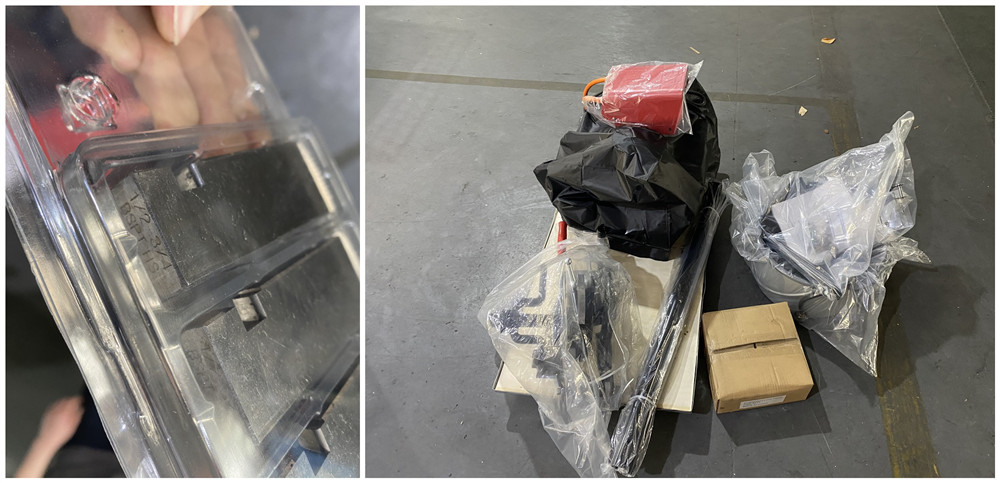

Packaging: 1 plywood case/set

G.W./N.W.: 93/80kgs (including accessories)

Packing size: 100x52x47cm

Cat no.	Size	Material	Weight
	1/4-3/8 BSPT(optional)	HSS	0.75KG
	1/2-3/4 BSPT	HSS	0.75KG
	1-2 BSPT	HSS	0.75KG
	1/4-3/8 NPT(optional)	HSS	0.75KG
	1/2-3/4 NPT	HSS	0.75KG
	1-2 NPT	HSS	0.75KG
	1-2BSPP	HSS	0.75KG

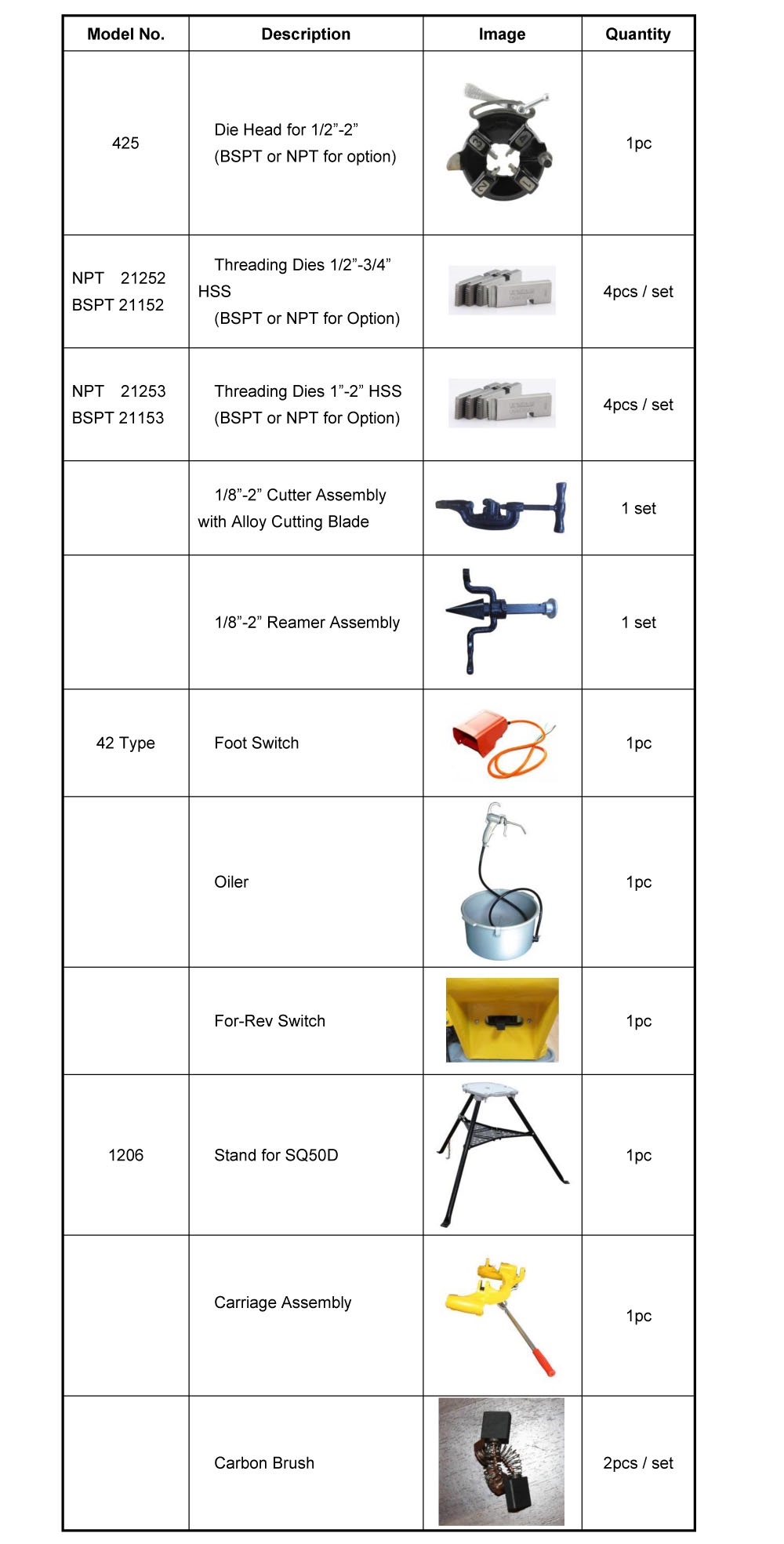

Standard equipment：

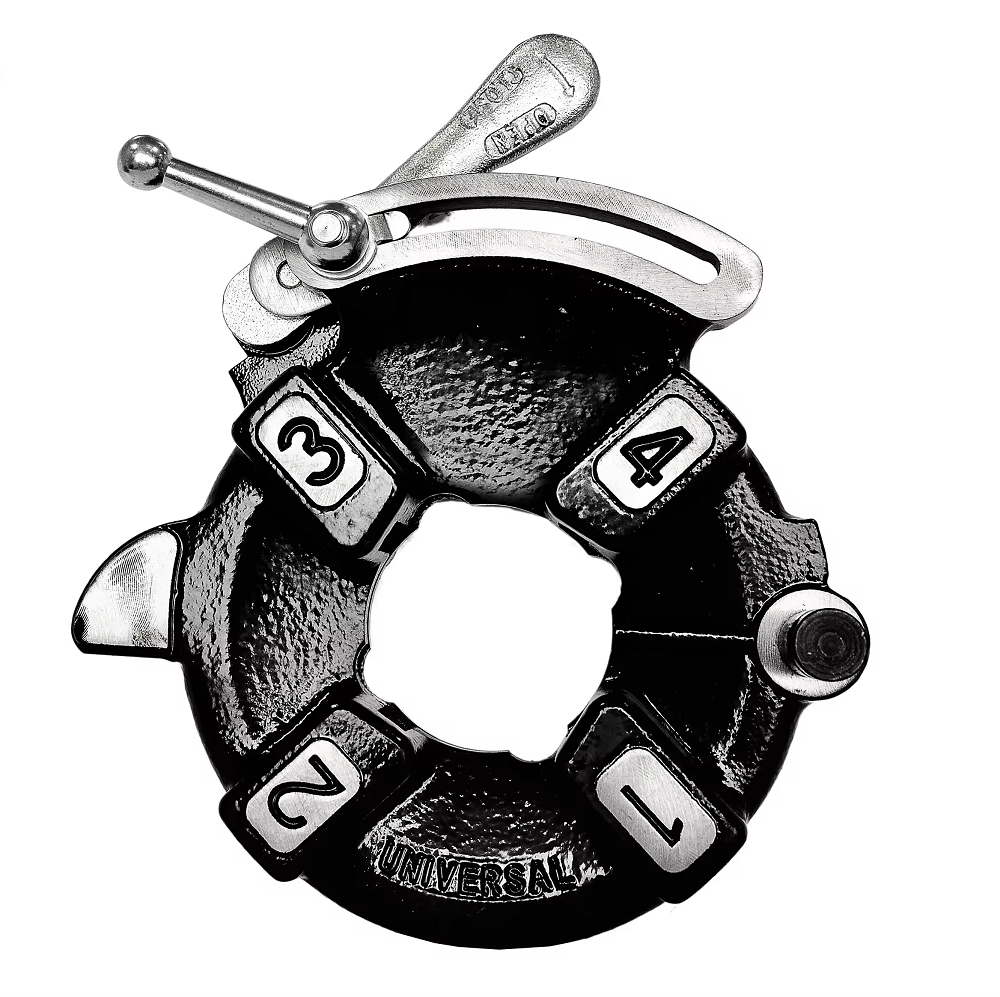

Die head (1/2″-2″) quick-open type 811A

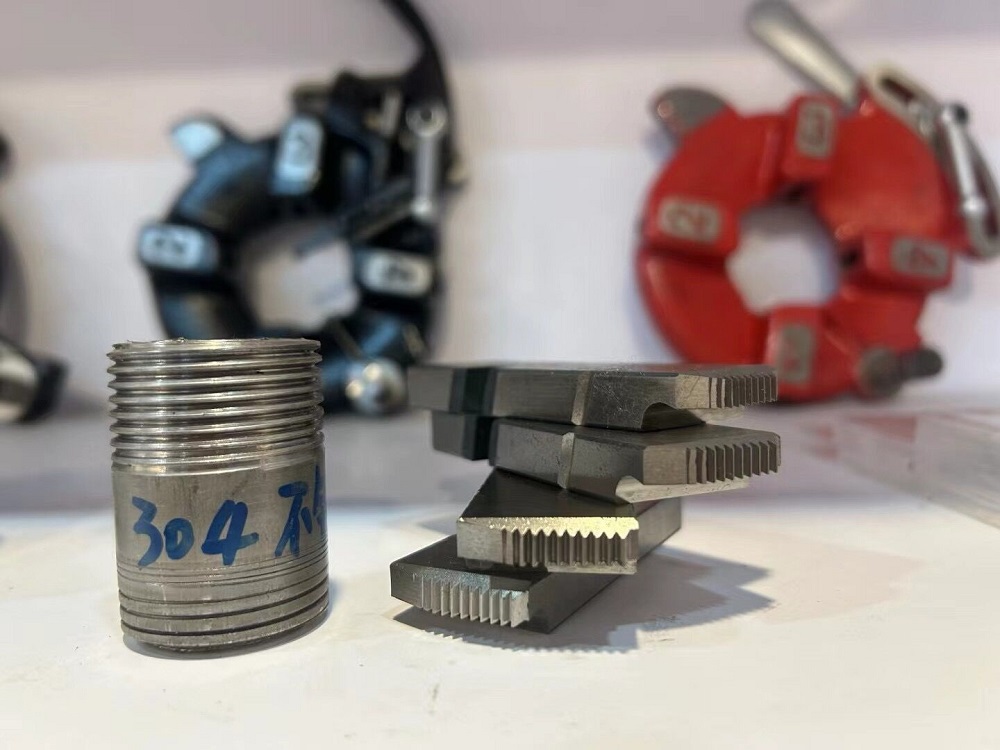

1/2″-3/4”universal HSS dies set
1-2 universal HSS dies set
Cutter capacity 1/8″-2″(6mm-50mm) pipe

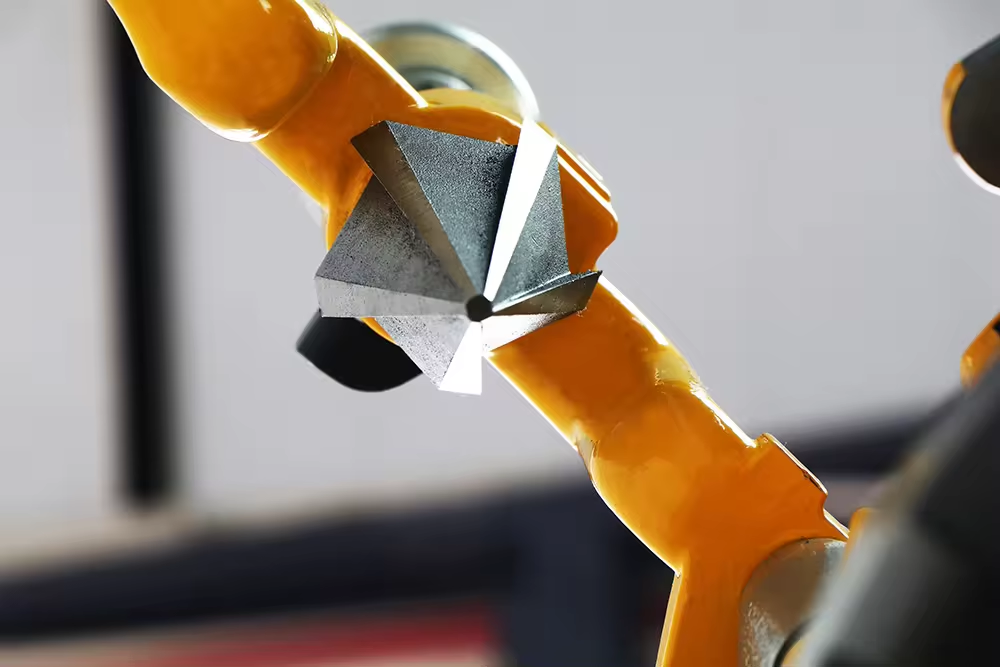

Reamer positive-locking, 5-flute cone, right-hand 1/8″-2″(6mm-50mm)
1206 tri-stand
418 oiler

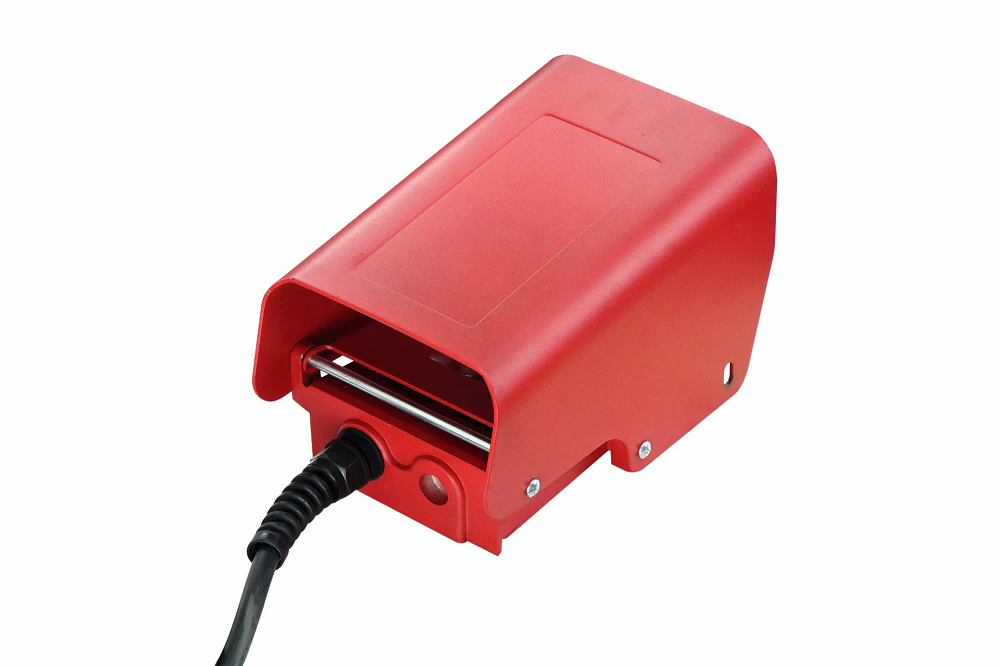

Foot switch

FEATURE OF THREADING MACHINE COMPATIBLE WITH RIDGID PIPE THREADER DIES

On/Off/Reverse switch.
The STT50D power drive is ideal for use with roll groovers.
Motor power is 1500W Universal, reversible motor, single-phase,110V or 220V, 50/60Hz.
Heavy-duty FOR/OFF/REV and Integral Foot Switch.
Speed chuck with replaceable rocker-action jaws.
Spindle Speed is 38 RPM (57 RPM in option)
Rear centering device is cam-action turns with chuck.
Support bar is heavy-duty

VIDEO OF THREADING MACHINE COMPATIBLE WITH RIDGID PIPE THREADER DIES

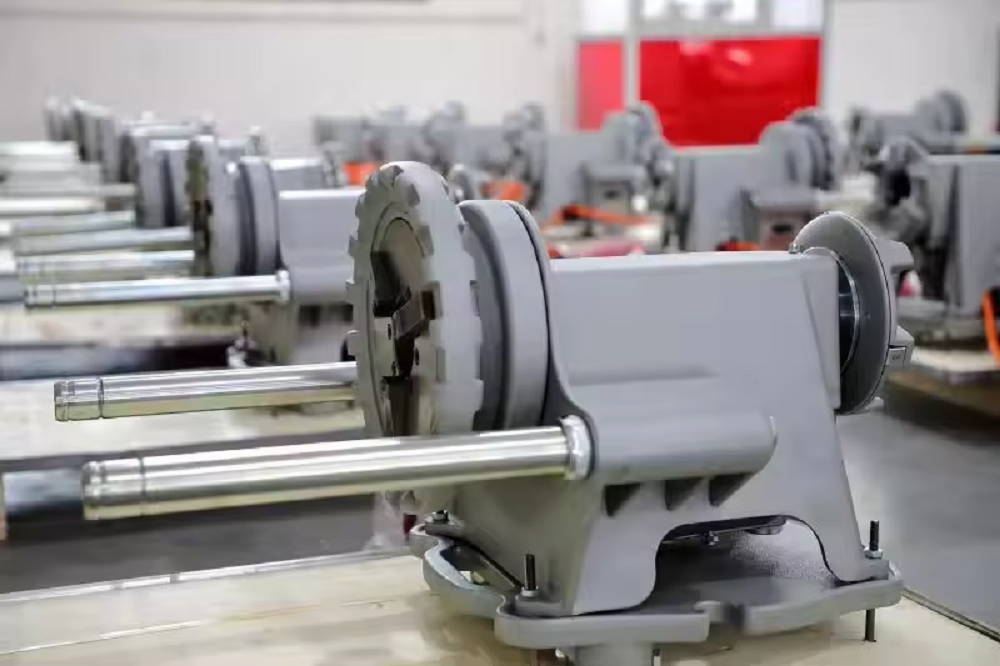

PICTURE OF THREADING MACHINE COMPATIBLE WITH RIDGID PIPE THREADER DIES

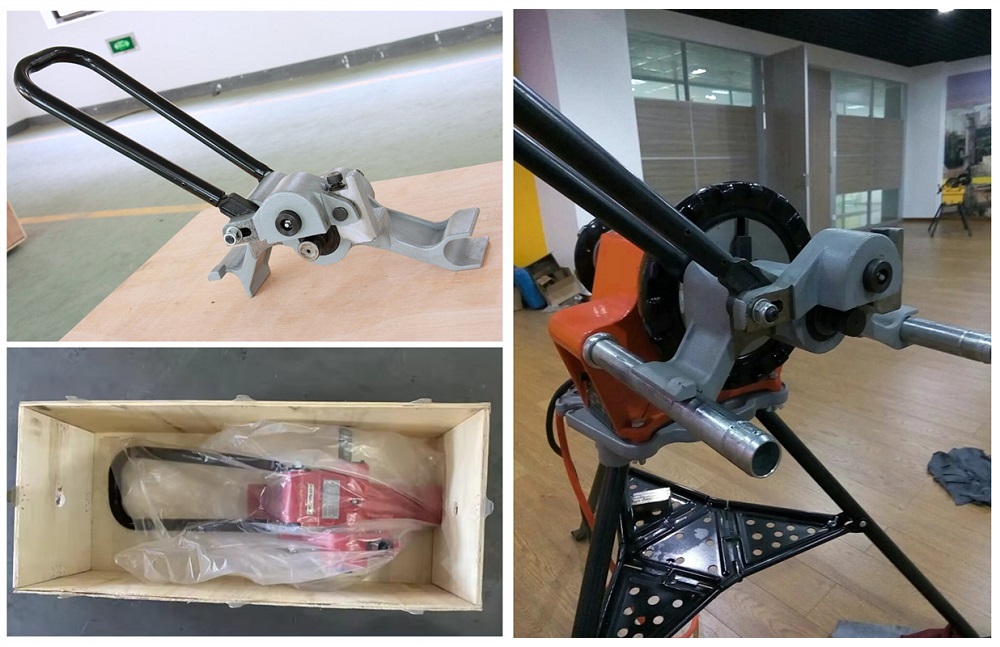

We can take off the threading head of this power drive and put on a grooving unit, to become an 1 1/4″-6″ roll groover.

F.A.Q.

1. Who are we?

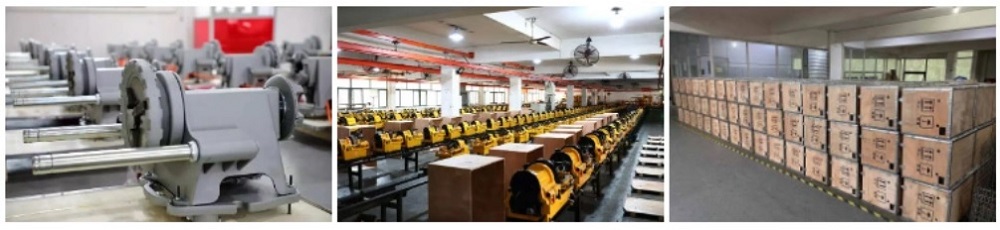

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
