Pipe Hole Cutting Machine
- This machine cut maximum 6 inch diameter holes.
- The max. pipe diameter can be up to 12 inch.
Pipe Hole Cutting Machine
INTRODUCTION OF ELECTRIC PIPE DRILL
Pipe hole cutting machine is not standard with arbor and hole saw, you can buy in local market or buy from us.
1) Designed for pipe hole cutting up to 152mm into steel pipe. The multiple hole sizes allow the use of mechanical fittings for branching
unpressurized pipe lines.
2) It has a 5/8″(16mm) capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors. An integral motor and gear reduction
optimizes performance of large diameter hole saws. The two feed handles allows the operator to use the hole cutting tool from either the left
or right side.
Application
Cutting Hole on steel pipes or other steel materials
Working together with hole saws

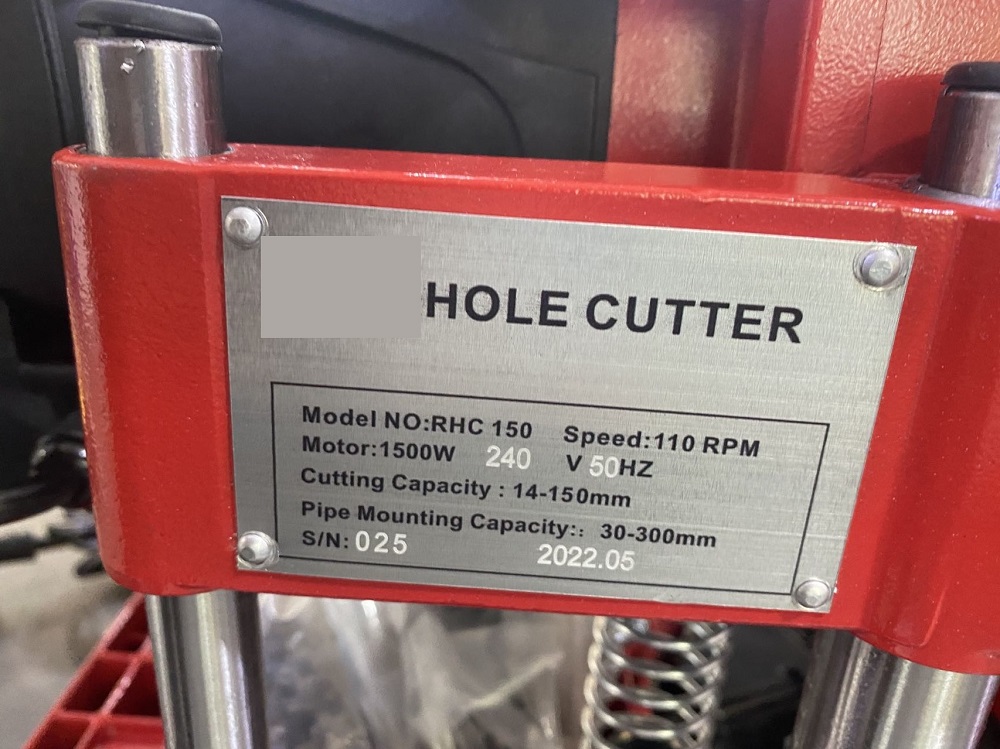

TECHNICAL DATA OF ELECTRIC PIPE DRILL
Pipe Hole Cutting Machine
Model: STJK150
Capacity: 6″ (dia152mm) hole size on steel pipe
Pipe mounting capacity: 1 1/4″-12″ (30mm-300mm)
Drill chuck capacity: 3-16mm
Drill chuck speed: 110rpm (no load)
Motor: induction:1500w
G.W./N.W.: 20.4/20kgs

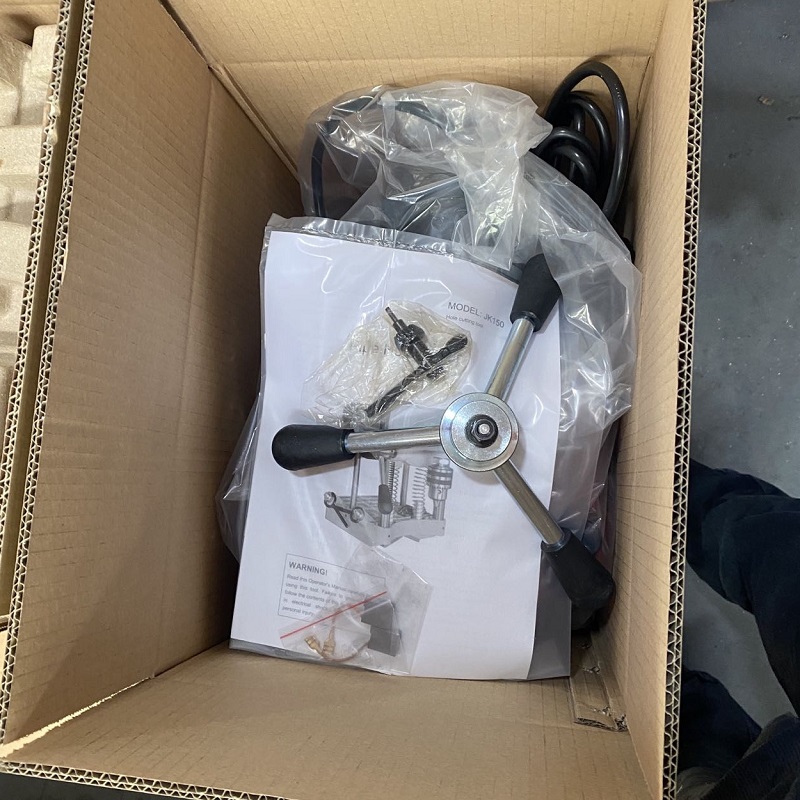

Packaging: Carton(40x30x35cm)/set
FEATURE OF ELECTRIC PIPE DRILL
Four support arms and compact design for steady operation.
Work on pipes from 1 1/4″-12″.
The chain design makes it fixed on the pipes and suitable for working high above the ground.
An integral motor and gear reduction optimizes performance of large diameter hole saws.
The two feed handles allows the operator to use this hole cutter from either the left or right side.
VIDEO OF ELECTRIC PIPE DRILL

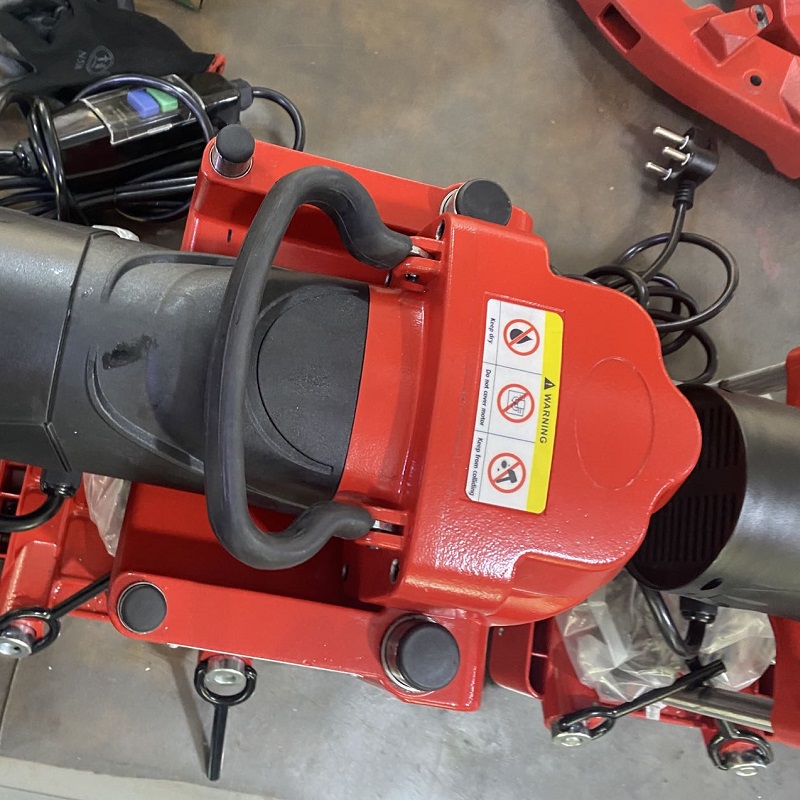

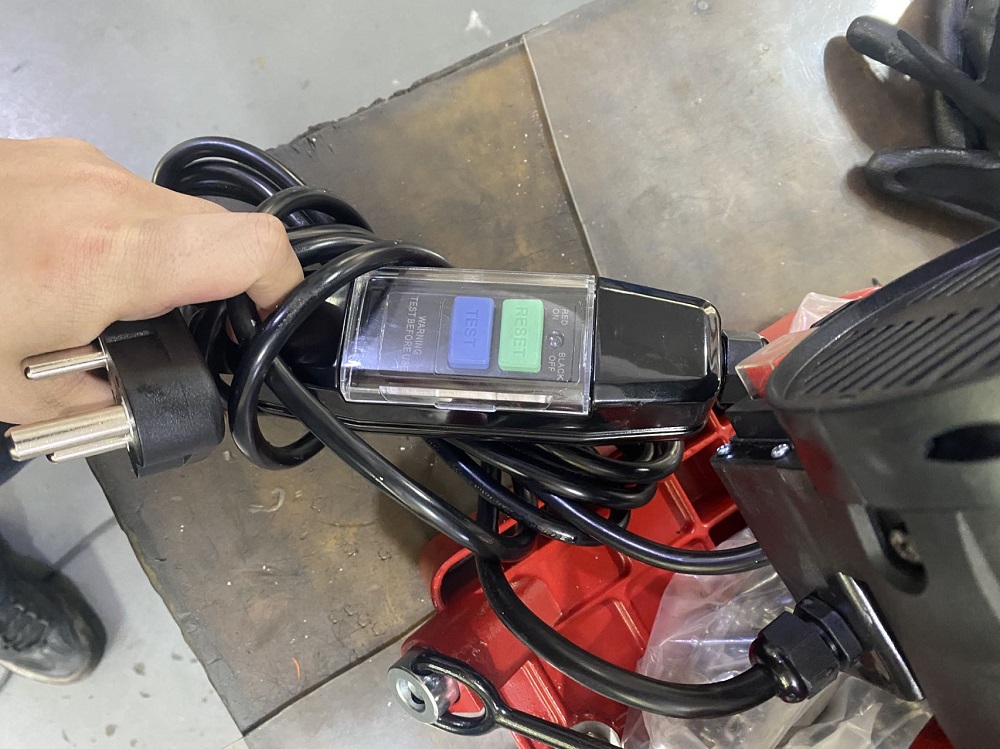

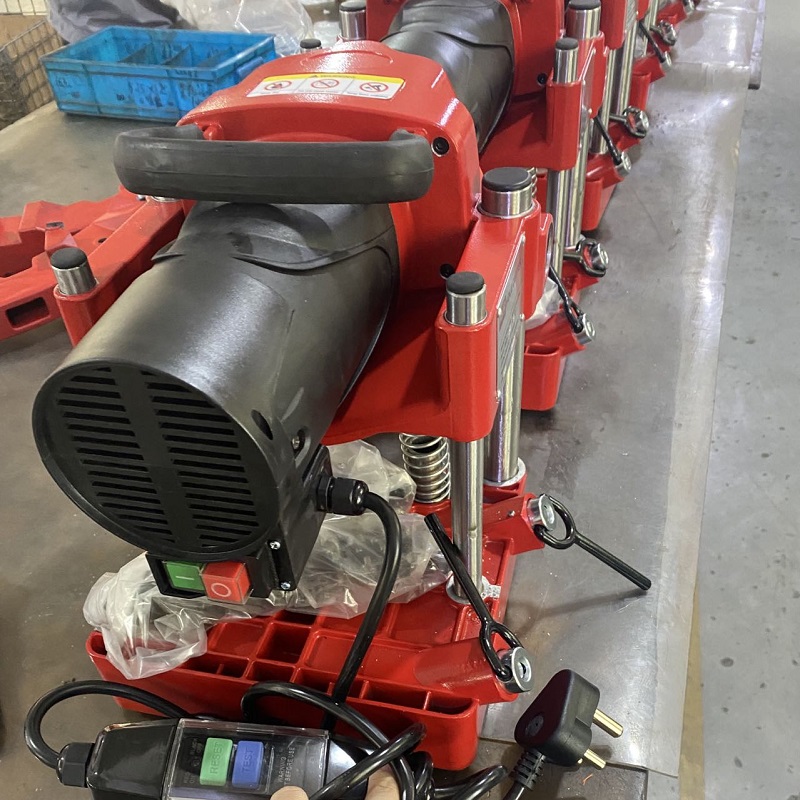

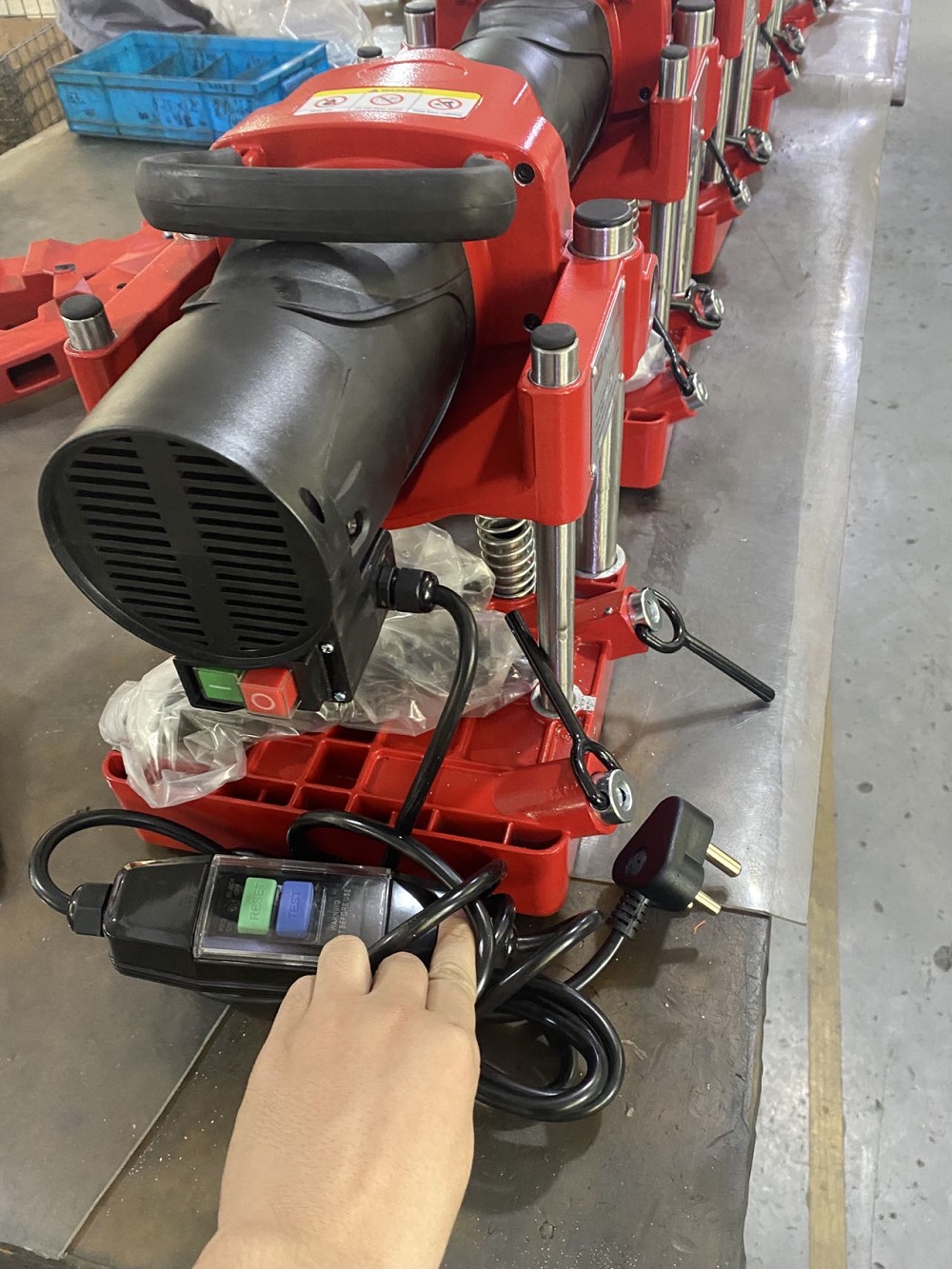

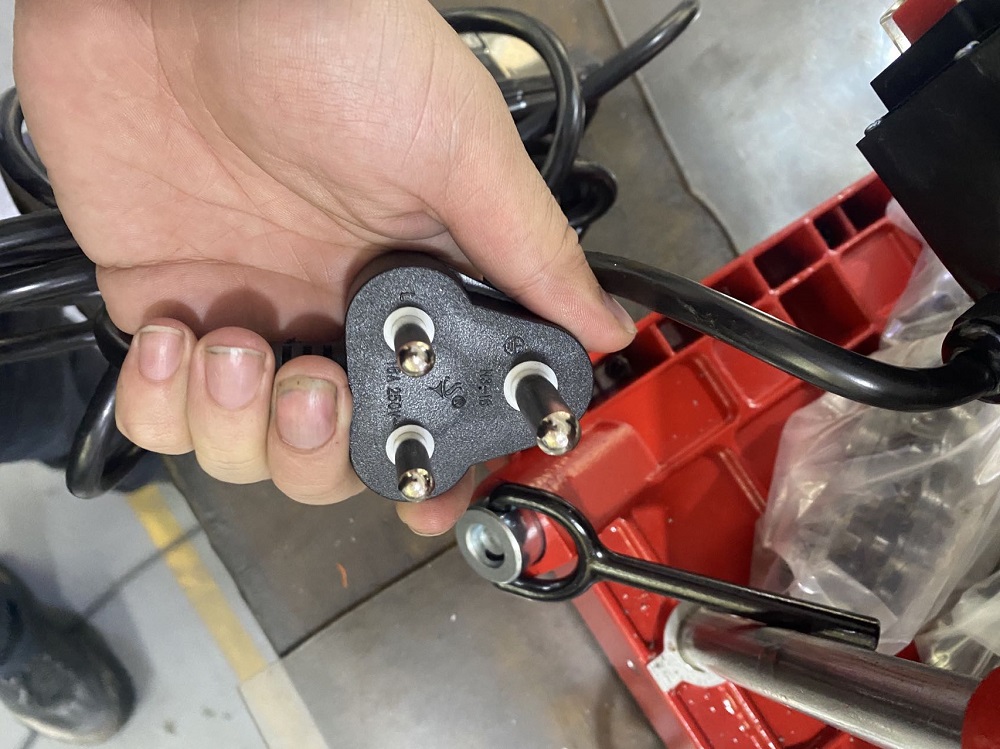

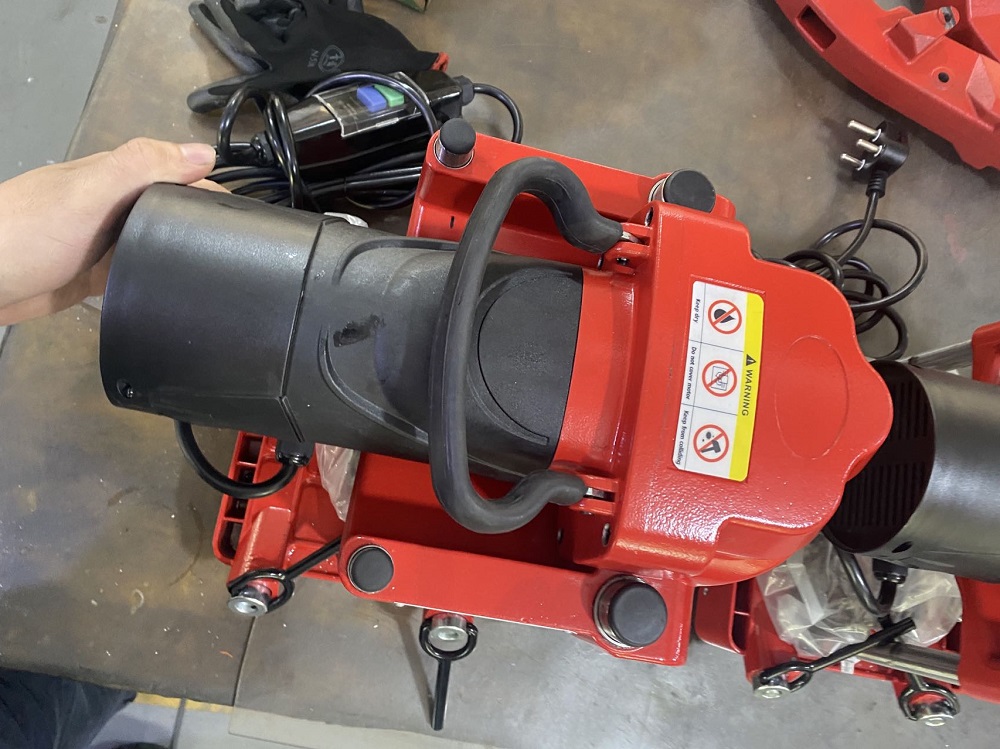

PICTURE OF ELECTRIC PIPE DRILL
Spares Hole Saws Selecting Chart
Dia. MM | M3 | M42 | Height |
14 | 0.63 | 0.74 | 55.5mm |
15 | 0.68 | 0.79 | 55.5mm |
16 | 0.73 | 0.83 | 55.5mm |
17 | 0.77 | 0.89 | 55.5mm |
18 | 0.82 | 0.95 | 55.5mm |
19 | 0.87 | 0.99 | 53.5mm |
20 | 0.90 | 1.05 | 49.5mm |
21 | 0.95 | 1.09 | 49.5mm |
22 | 1.00 | 1.15 | 49.5mm |
23 | 1.05 | 1.20 | 49.5mm |
24 | 1.09 | 1.25 | 49.5mm |
25 | 1.14 | 1.31 | 49.5mm |
26 | 1.18 | 1.36 | 49.5mm |
27 | 1.22 | 1.41 | 49.5mm |
29 | 1.32 | 1.51 | 49.5mm |
30 | 1.37 | 1.57 | 49.5mm |
32 | 1.45 | 1.67 | 49.5mm |
33 | 1.50 | 1.72 | 49.5mm |
35 | 1.59 | 1.83 | 49.5mm |
37 | 1.53 | 1.76 | 43.5mm |
38 | 1.58 | 1.81 | 43.5mm |
40 | 1.66 | 1.90 | 43.5mm |
41 | 1.70 | 1.95 | 43.5mm |
43 | 1.78 | 2.05 | 43.5mm |
44 | 1.83 | 2.10 | 43.5mm |
46 | 1.90 | 2.20 | 43.5mm |
48 | 1.98 | 2.29 | 43.5mm |
51 | 2.11 | 2.43 | 43.5mm |
52 | 2.15 | 2.48 | 43.5mm |
54 | 2.23 | 2.58 | 43.5mm |
57 | 2.36 | 2.72 | 43.5mm |
59 | 2.45 | 2.81 | 43.5mm |
60 | 2.48 | 2.86 | 43.5mm |
64 | 2.61 | 3.00 | 43.5mm |
65 | 2.65 | 3.05 | 43.5mm |
67 | 2.73 | 3.15 | 43.5mm |
68 | 2.78 | 3.19 | 43.5mm |
70 | 2.86 | 3.29 | 43.5mm |
73 | 2.98 | 3.43 | 43.5mm |
76 | 3.10 | 3.56 | 43.5mm |
79 | 3.23 | 3.70 | 43.5mm |
83 | 3.38 | 3.89 | 43.5mm |
84 | 3.43 | 43.5mm | |
85 | 3.48 | 43.5mm | |
86 | 3.51 | 4.04 | 43.5mm |
89 | 3.63 | 4.18 | 43.5mm |
92 | 3.75 | 4.32 | 43.5mm |
93 | 3.80 | 43.5mm | |
94 | 3.84 | 43.5mm | |
95 | 3.88 | 4.46 | 43.5mm |
98 | 4.00 | 4.59 | 43.5mm |
99 | 4.05 | 43.5mm | |
100 | 4.09 | 43.5mm | |
101 | 4.13 | 43.5mm | |
102 | 4.17 | 4.78 | 43.5mm |
103 | 4.24 | 43.5mm | |
104 | 4.27 | 43.5mm | |
105 | 4.29 | 4.93 | 43.5mm |
108 | 4.40 | 5.07 | 43.5mm |
111 | 4.54 | 5.21 | 43.5mm |
112 | 4.58 | 43.5mm | |
113 | 4.62 | 43.5mm | |
114 | 4.65 | 5.35 | 43.5mm |
115 | 4.70 | 43.5mm | |
116 | 4.74 | 43.5mm | |
117 | 4.78 | 43.5mm | |
118 | 4.82 | 43.5mm | |
119 | 4.87 | 43.5mm | |
120 | 4.91 | 5.64 | 43.5mm |
121 | 4.94 | 5.67 | 43.5mm |
127 | 5.19 | 5.96 | 43.5mm |
133 | 5.43 | 6.24 | 43.5mm |
140 | 5.71 | 6.58 | 43.5mm |
146 | 5.96 | 6.85 | 43.5mm |
152 | 6.21 | 7.13 | 43.5mm |
160 | 6.53 | 7.52 | 43.5mm |
165 | 6.73 | 7.74 | 43.5mm |
168 | 6.86 | 7.88 | 43.5mm |
177 | 7.23 | 7.96 | 43.5mm |
200 | 8.17 | 9.39 | 43.5mm |
210 | 8.57 | 9.85 | 43.5mm |

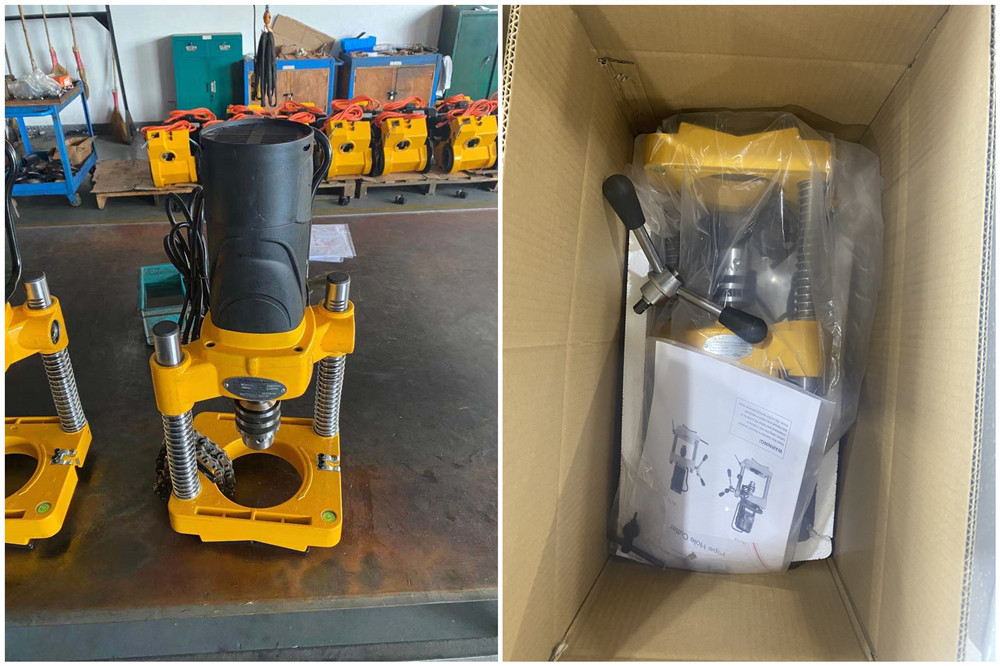

Find here other optional size pipe hole cutting machine such as 4″ 114mm hole cutter.
