Economic pipe hole driller 114mm

Category Pipe Hole Cutting Machine

Maximum 114mm hole cutting on steel pipe.
Amazing price USD125.00!

Economic pipe hole driller 114mm

INTRODUCTION OF ECONOMIC PIPE HOLE DRILLER 114MM

Economic pipe hole driller 114mm is designed for pipe hole cutting up to 114mm into steel pipe. The multiple hole sizes allow the use of mechanical fittings for branching unpressurized pipe lines. It is light weight for easy transportation, ideal for the hole cutting in small size. Induction motor ensures quiet working performance.

TECHNICAL DATA OF ECONOMIC PIPE HOLE DRILLER 114MM

Economic pipe hole driller 114mm
Model: STLS-114B
Capacity: 4″ (dia 25-114mm) holes on steel pipe
Pipe mounting capacity: 1 1/4″-8″ (32mm-219mm)
Drill chuck speed: 120rpm
Motor: universal type, 1500w
Gross weight: 13.5kgs

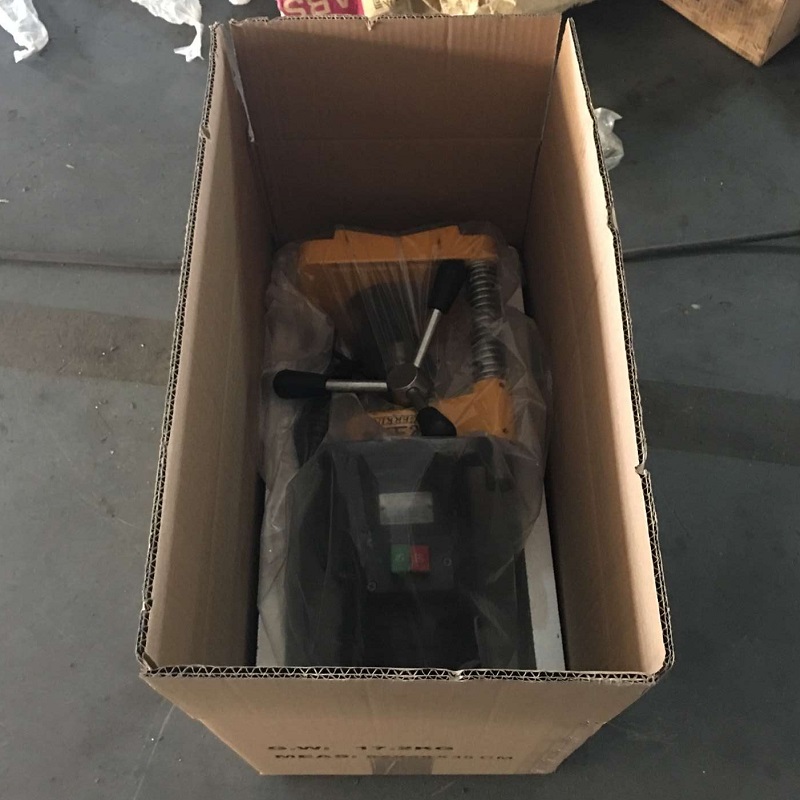

Packaging: Carton (35*31*58cm)/set

1. Connect the power supply, turn on the switch.
2. Adjust the length of the chain surrouding the pipe and fix it with the pin, then tighten the nut at the other end of the chain to firmly fix the machine on the pipe.

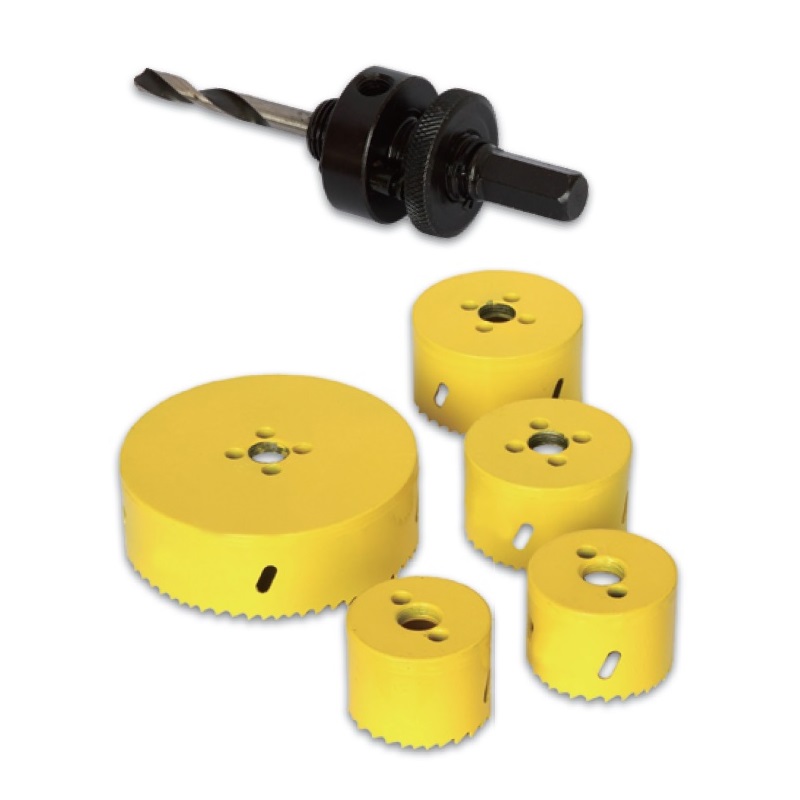

3. Confirm the hole diameter and install the appropriate hole saw.
4. Start the motor and make sure the hole saw are rotating correctly.
5. Pull down the handle let the hole saw going downward. When the hole saw is close to the pipe, check if the hole opening position is correct; otherwise please shut down the machine and readjust the position.
6. When opening the hole, the handle should be pressed down slowly, and the hole saw should not be cooled with coolant.
7. After the hole opening is completed, turn off the switch and remove the machine.

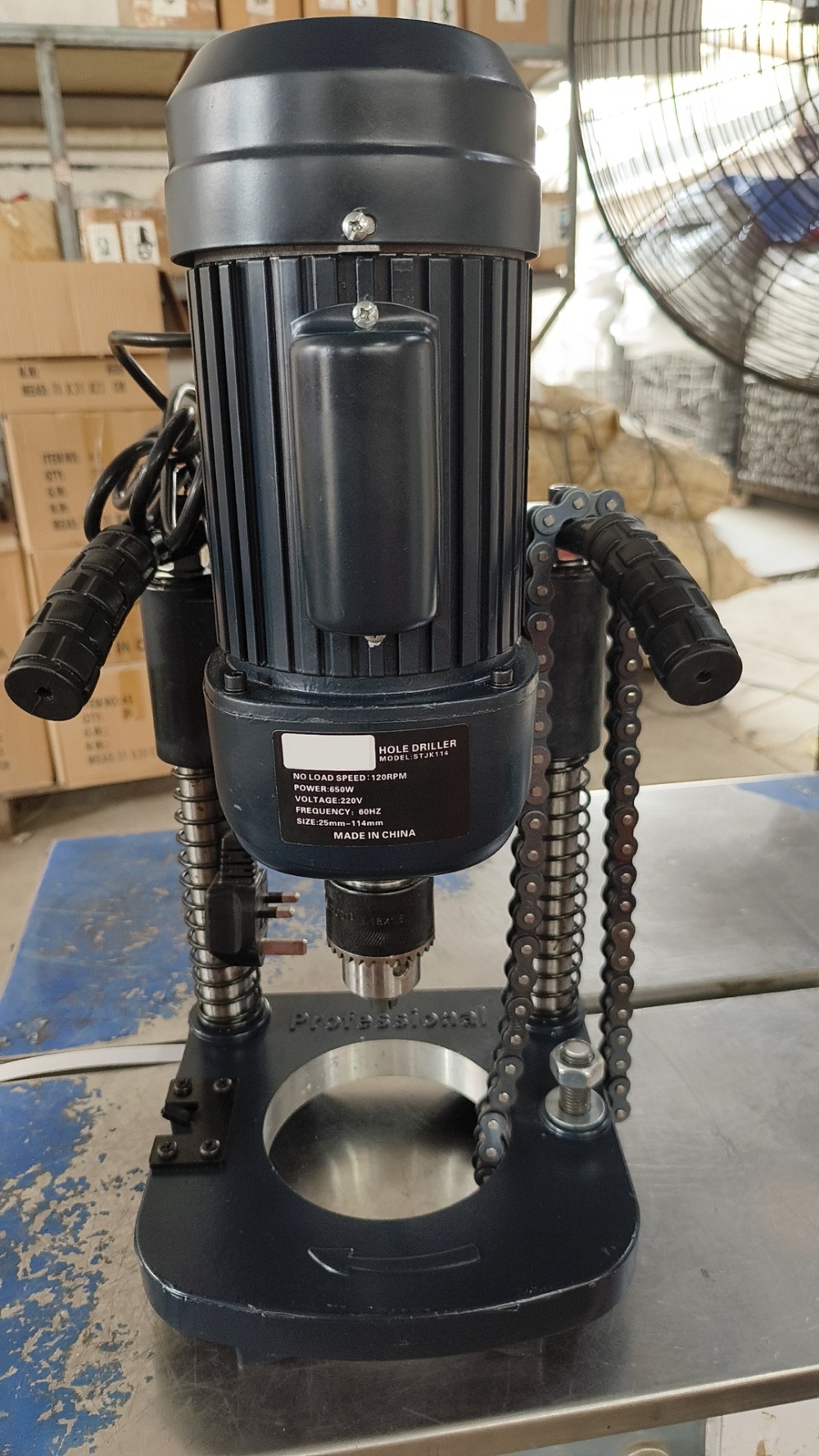

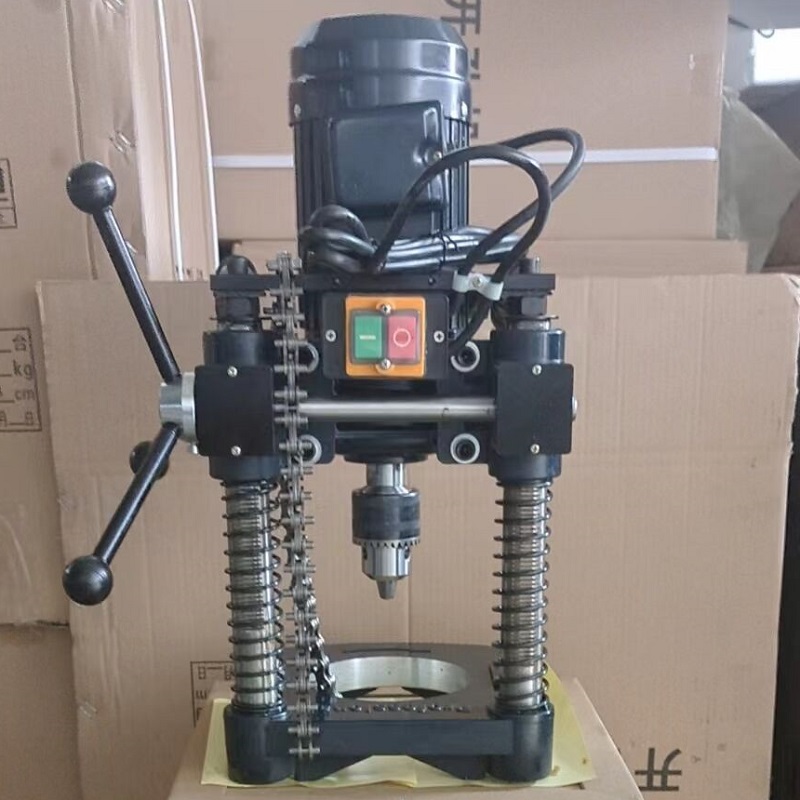

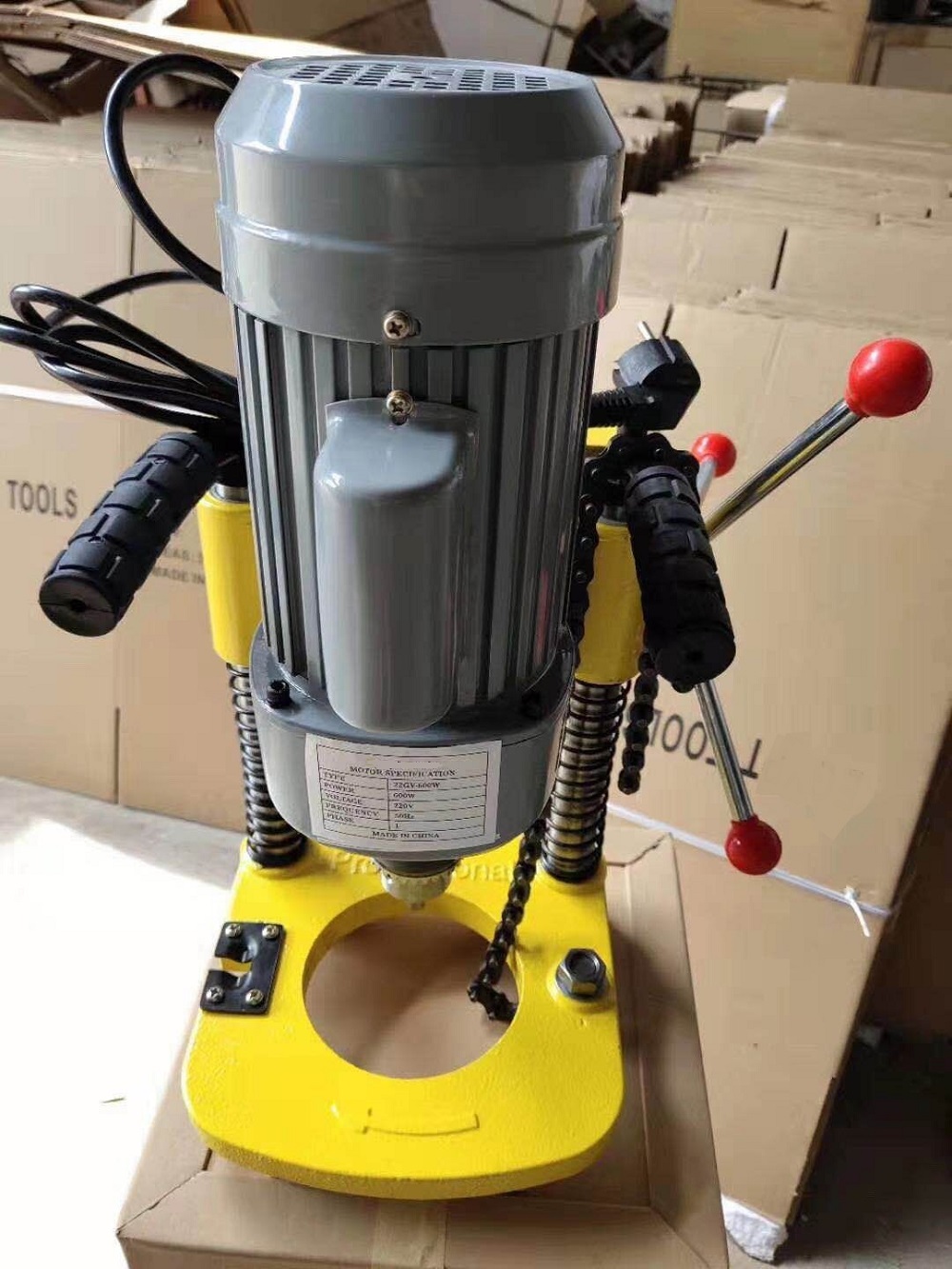

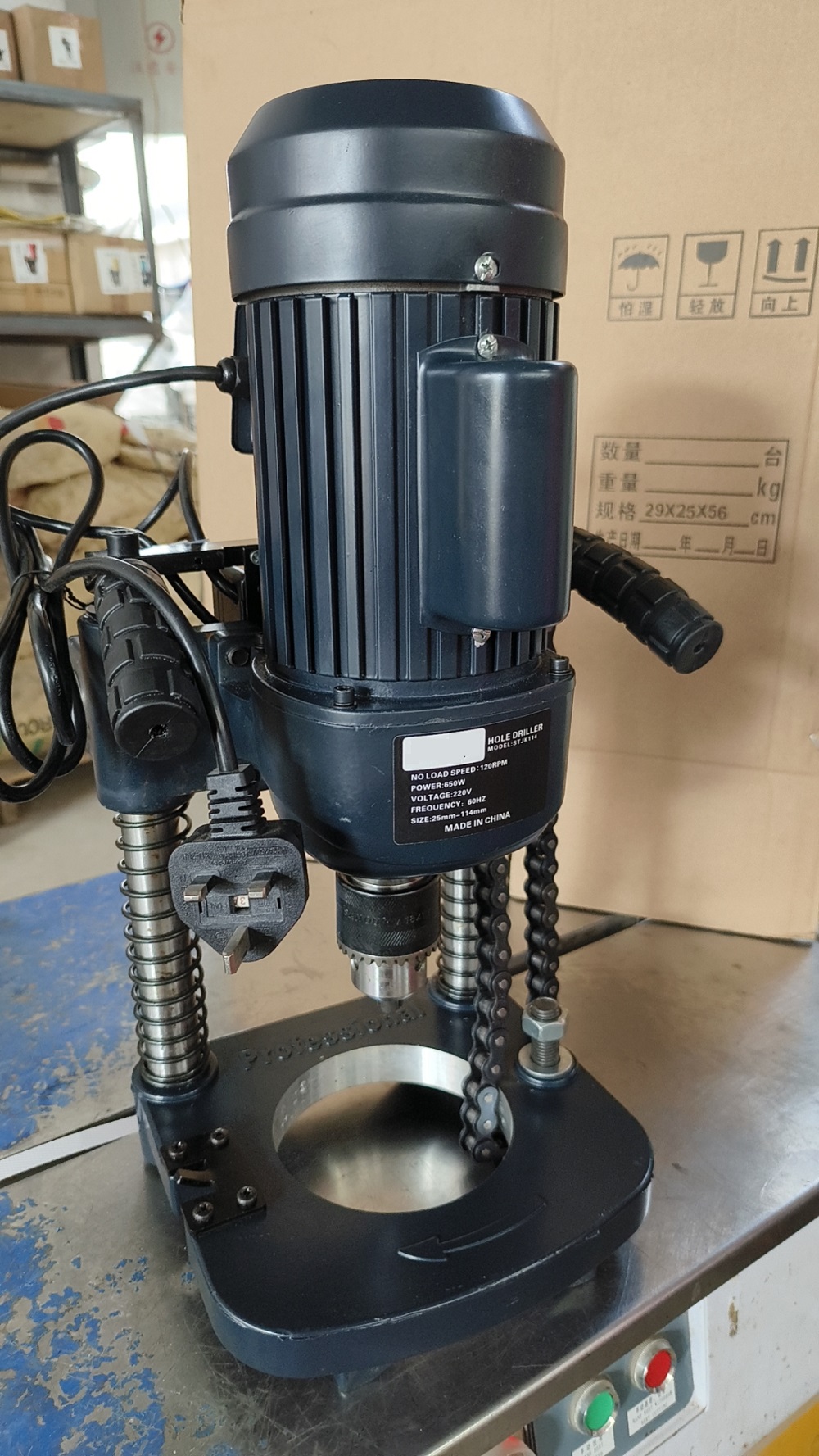

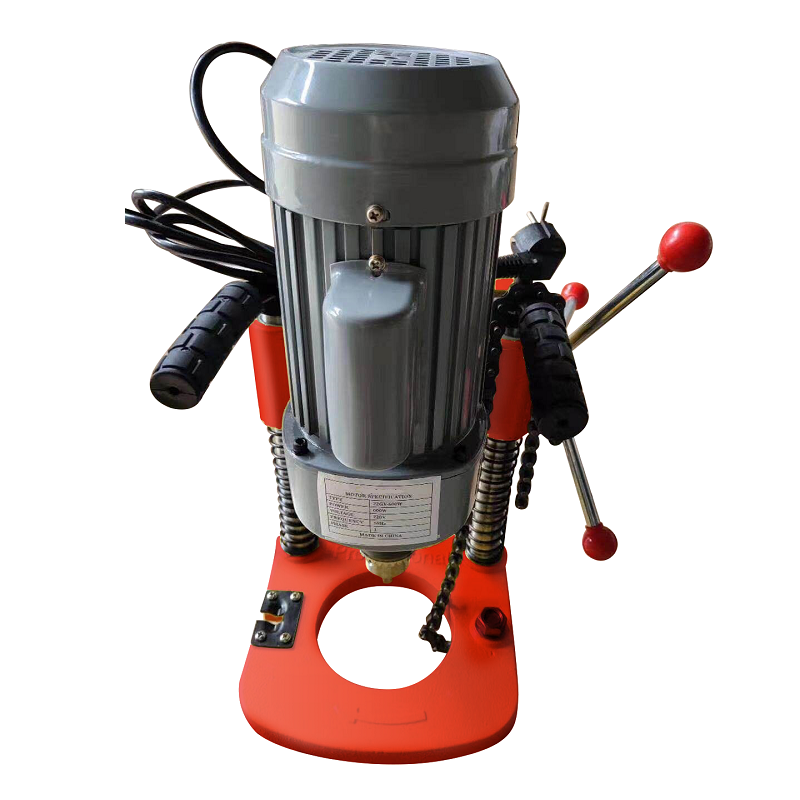

PICTURES OF ECONOMIC PIPE HOLE DRILLER 114MM

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
