114mm Pipe Hole Cutter
- High torque 1500w powerful universal motor
- Best choice for fire fighting pipeline hole cutting.
- Hole saws are not standard with machine, client can choose different hole saw additionally or buy at local market.
114mm Pipe Hole Cutter
INTRODUCTION OF PIPE DRILLING MACHINE

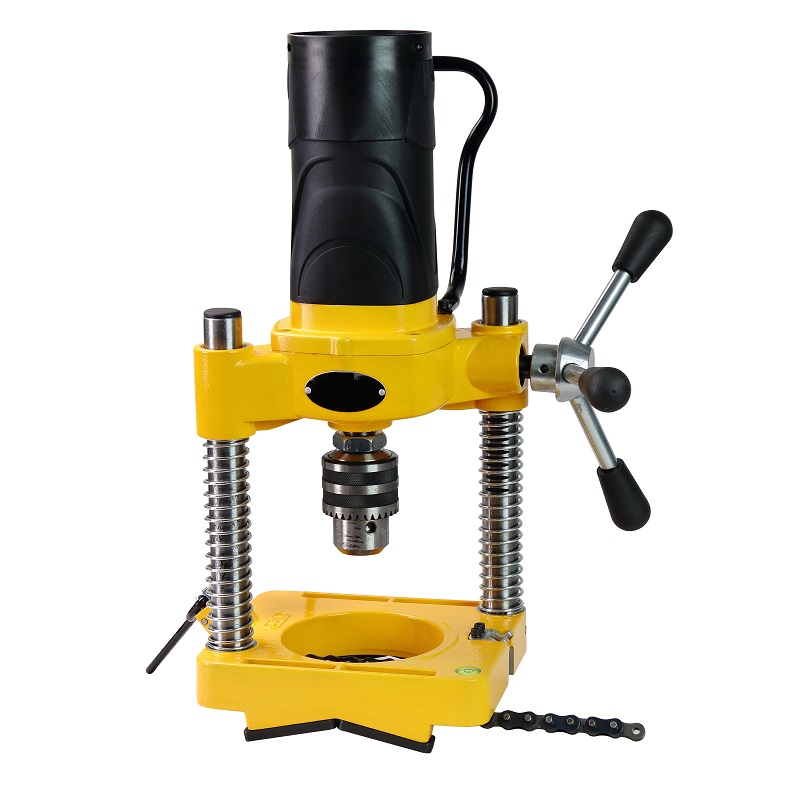

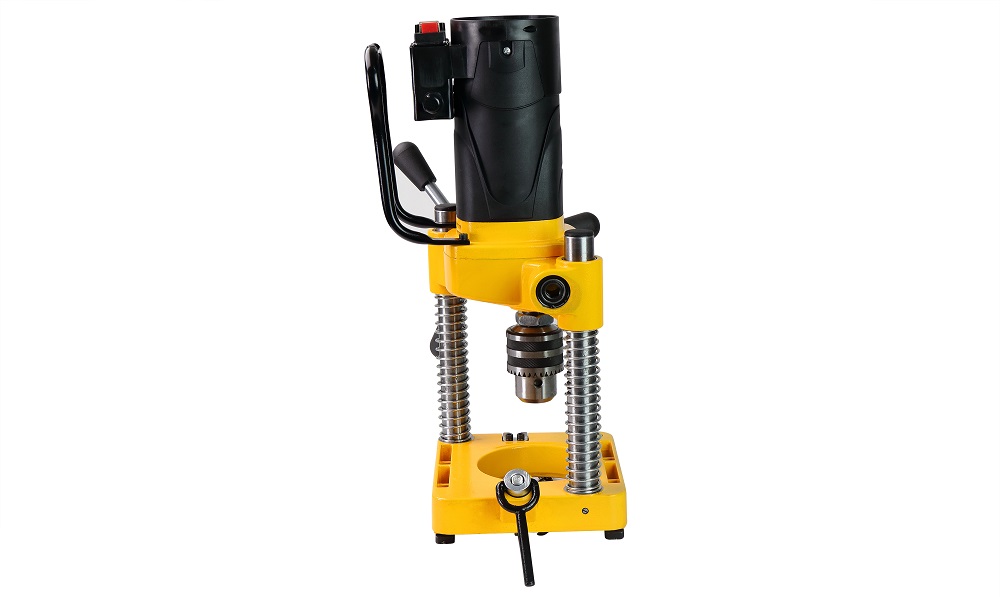

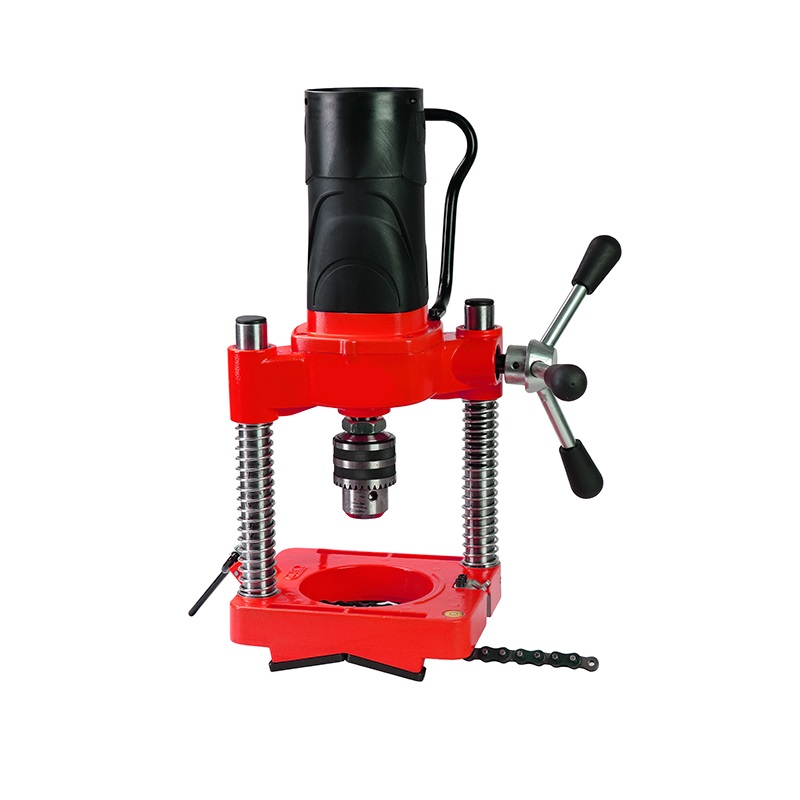

114mm Pipe Hole Cutter Model STKC114 is designed for pipe hole cutting up to 114 mm into steel pipe.
It is light weight for easy transportation, ideal for the hole cutting in small sizes.
The motor is upgraded from induction motor 650w to current universal motor 1500w, the working speed are higher and much more powerful
when you are working on hard pipes.
TECHNICAL DATA OF PIPE DRILLING MACHINE
New pipe hole cutter 4″with upgraded 1500w motor

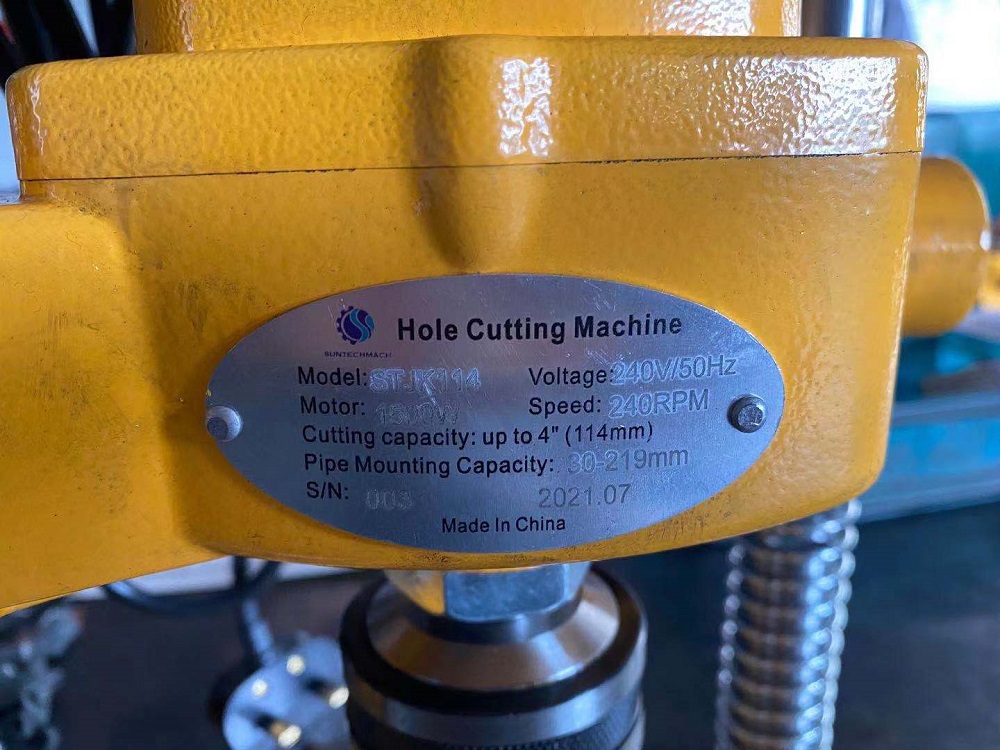

Model: STKC114
Capacity: 4″ (dia114mm) holes on steel pipe
Pipe mounting capacity: 1 1/4″-8″ (32mm-219mm)
Drill chuck capacity: 3-16mm
Drill chuck speed: 240rpm (no load)
Stroke: 100mm
Motor: universal type, 1500w
Weight: 15.56/13.38KGS

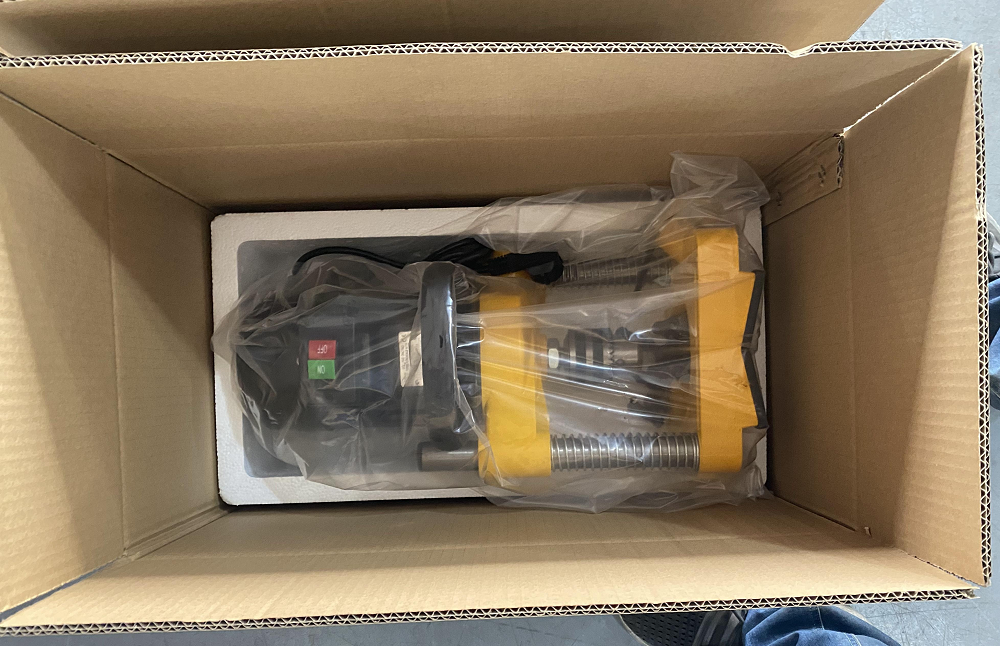

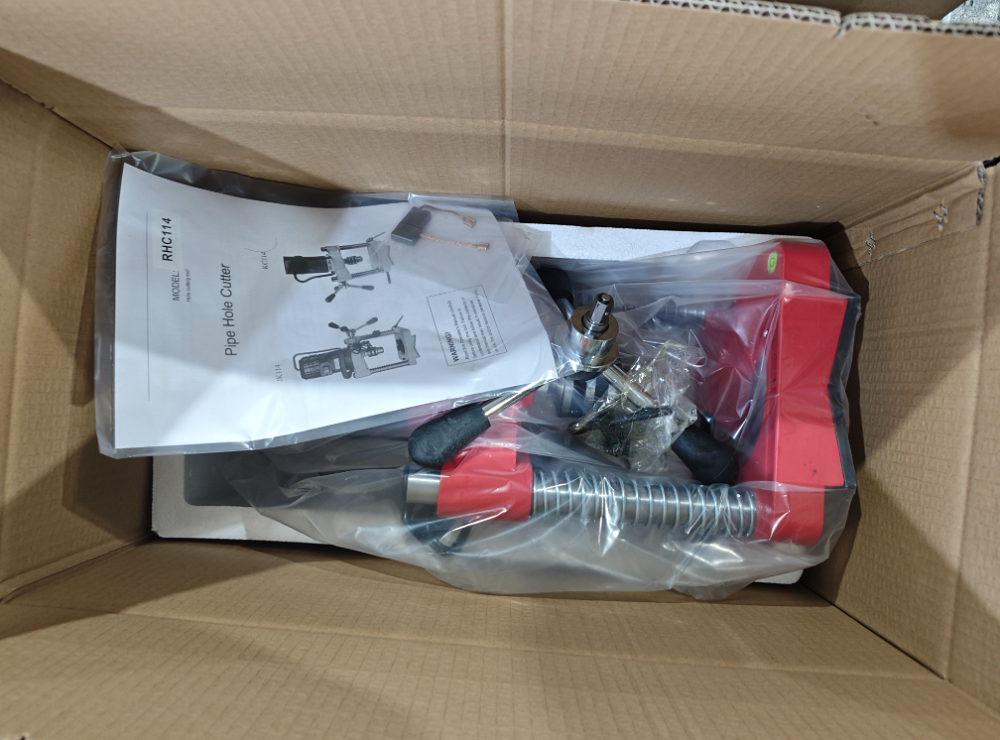

Packaging: Carton (30.5*35.5*55.5cm)/PC
Standard accessories
Handle 1pc
Drill chuck 1pc
VIDEO OF PIPE DRILLING MACHINE
OPERATION OF PIPE DRILLING MACHINE
1. Fixing the pipe hole cutter

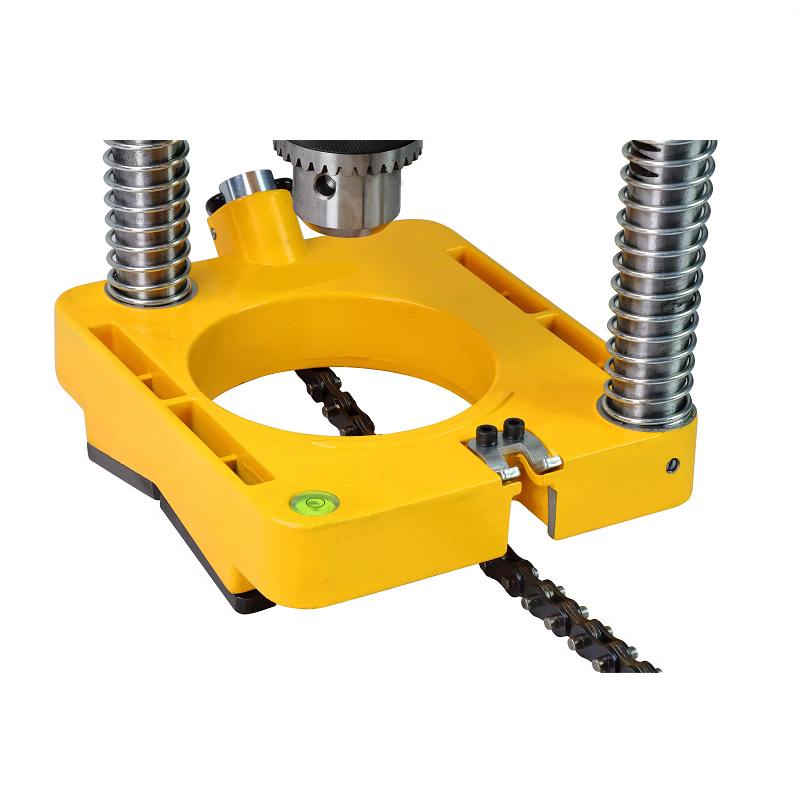

Use the handle on the top of pipe hole cutter to lift the machine body, put it on the pipe, in the meantime wrap the chain around the pipe. Rotate the lever stick to tighten the chain.
2. Install the hole saw and arbor
Tighten the arbor into the holesaw. Assemble the swing handle and hole saw to the hole cutting machine, tighten it with the key.
3. It can cut pipe in different direction
The machine can turn around the pipe, you can set correct position and lock the chain.
4. Cutting operation

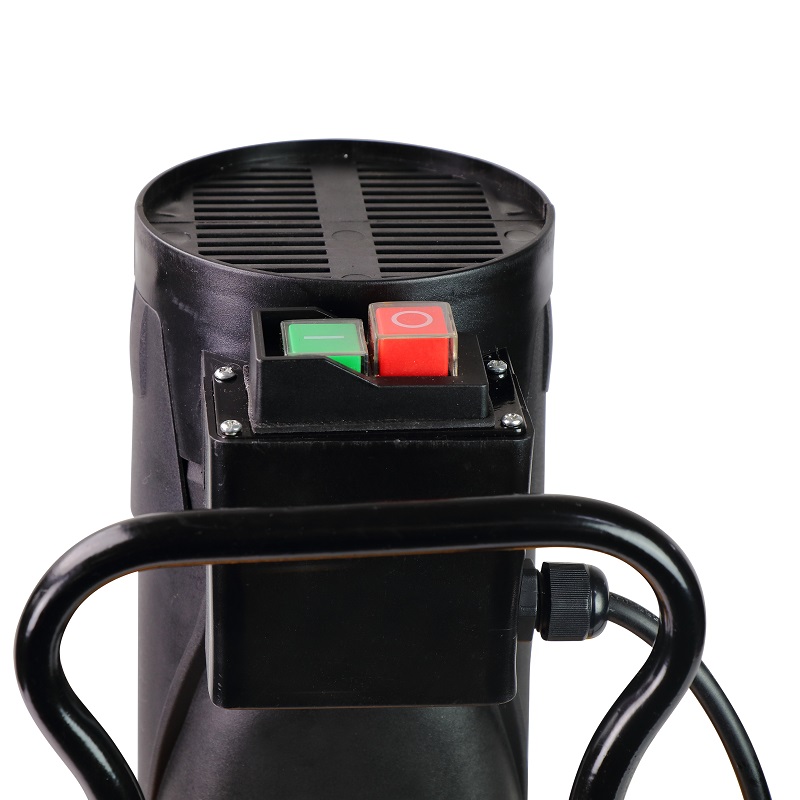

Turn on the power and check if the holesaw rotate correctly. Start rotate the handle to let the holw saw head going down, it is recommended to go down slowly. After the hole cutting is done, turn off the power and disassemble the machine from pipe.

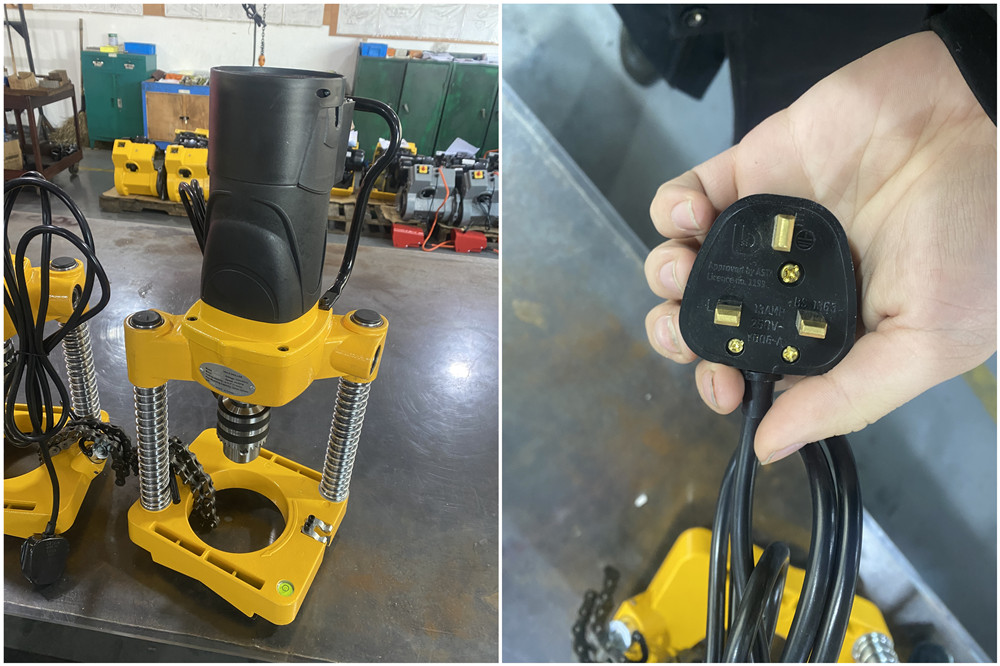

PICTURES OF PIPE DRILLING MACHINE
We also have pipe hole cutter of max. 6inch (hole size), the machine is not as tall as STKC114.
F.A.Q.
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

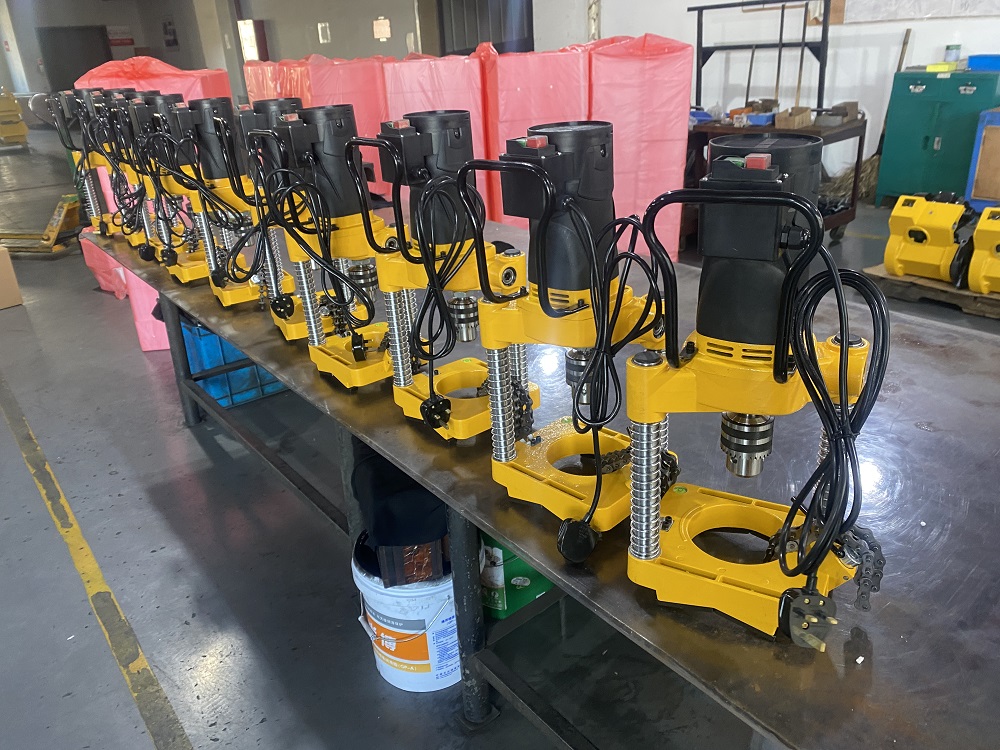

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
