Intelligent Pipe Threading Machine

Categories heavy duty pipe threader, Pipe Threading Machine

Easy to operate!
Smart recognition of pipe diameter.
Intelligent automatic chuck adjustment.
High precision cutting tools.
Can make 12-15 threads per minute.

Intelligent Pipe Threading Machine

INTRODUCTION OF AUTOMATIC SMART PIPE THREADING MACHINE

Within 3.9 seconds Intelligent Pipe Threading Machine can make one complete threads for diameter less than 50mm pipe, the speed is

10 times compared with a traditional on-site pipe threader!

The automatic pipe threading machine can recognize the different diameter pipes automatically. The chuck will adjust itself to fit and

clamp all size pipes, compared with traditional pipe threader, it can save much labour cost and achieve high speed pipe threading.

The threading dies are made of a special material and processed by heattreatment, the life span of our die can be up to 2000pcs pipes.

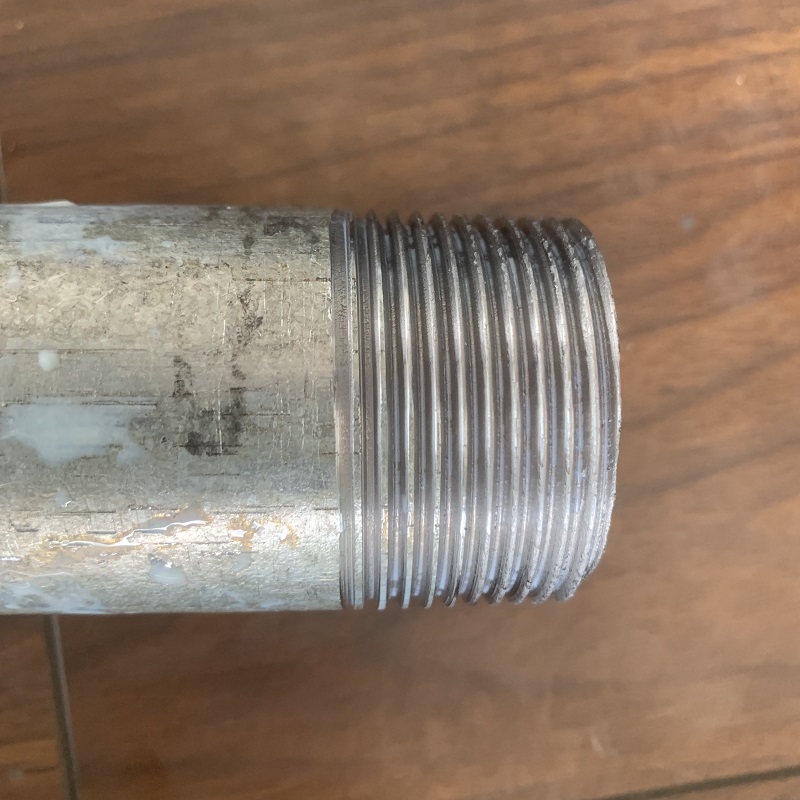

The machine are in higher precision than that of traditional on-site pipe threader, the threading teeth will be perfect and smooth.

This ensure reliable pipeline connection in the water pipe construction project as well as the fire fighting pipeline building.

TECHNICAL DATA OF AUTOMATIC SMART PIPE THREADING MACHINE

Model: ST-ZNTG-100
Capacity: 1/2″-4″, DN15-100mm
Material: Galvanized iron pipe, carbon steel pipe, seamless steel pipes, stainless steel pipe, copper tube, plastic pipe, etc.
Thread: BSPT, NPT, Metric etc.
Power: 8.7kw
Speed: 21/45/127rpm #46 hydraulic oil used
Hydraulic working pressure: 7.5-9Mpa
Voltage: 380v 50hz three-phase
Weight: 530Kg±20KG
Size: 1520x580x1100mm(H)

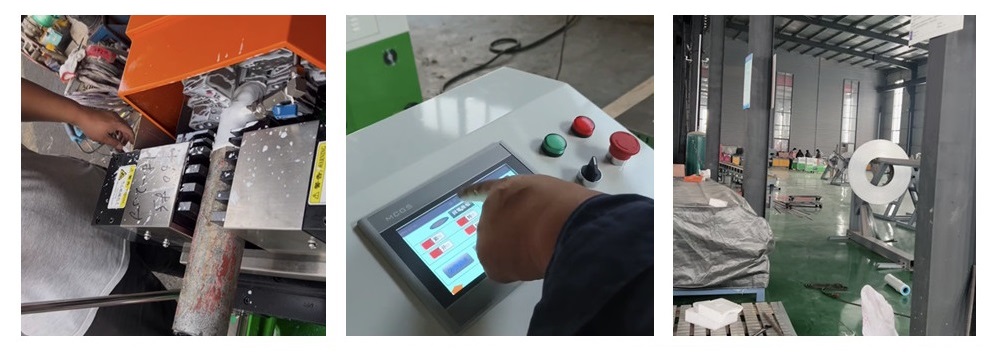

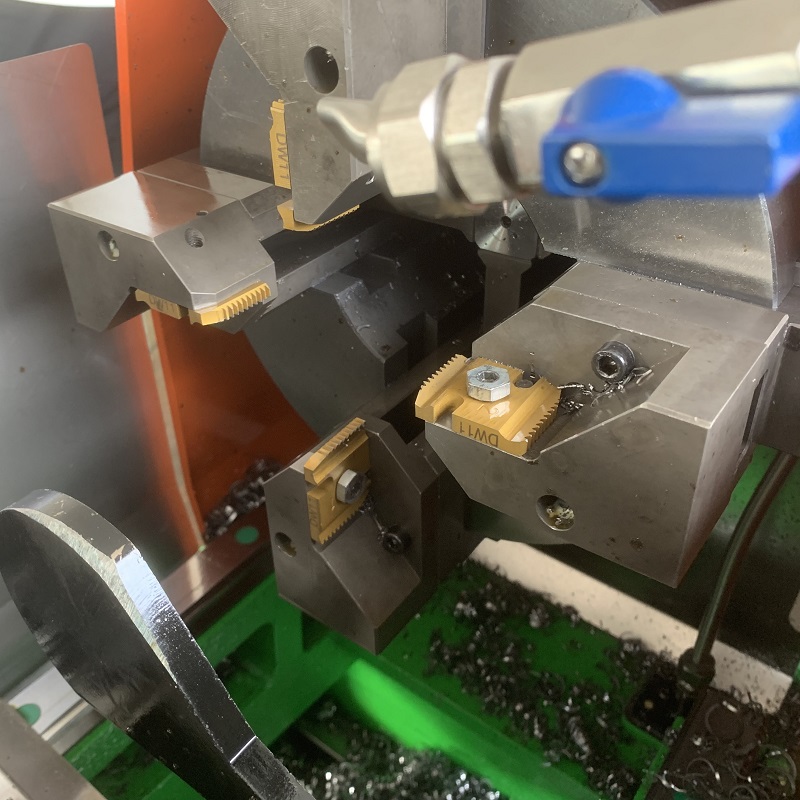

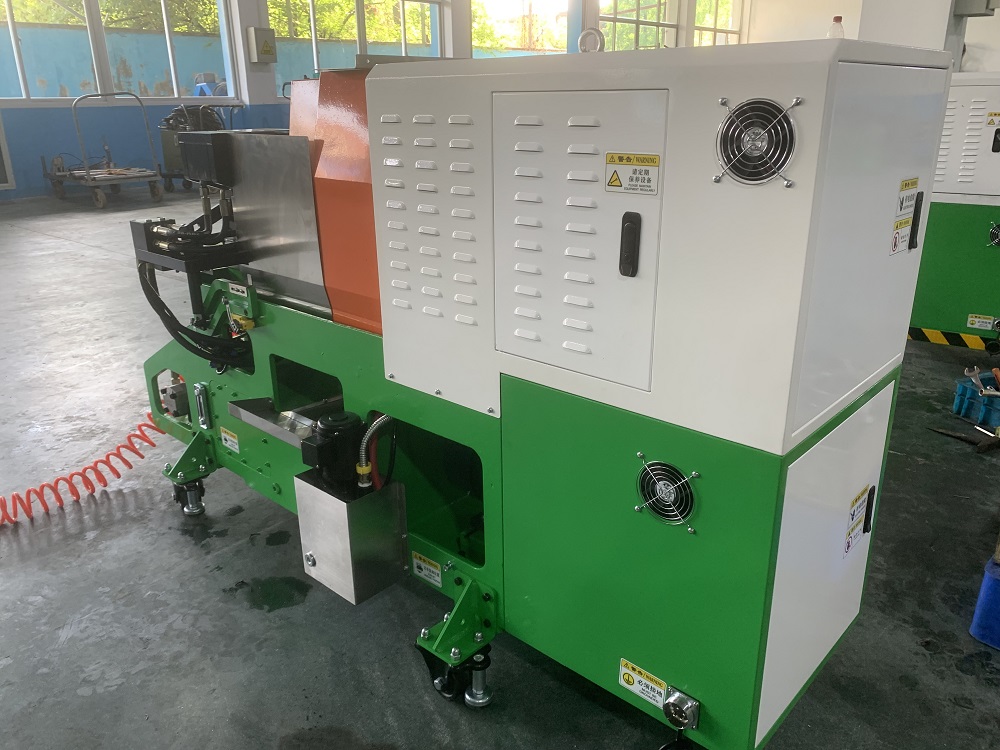

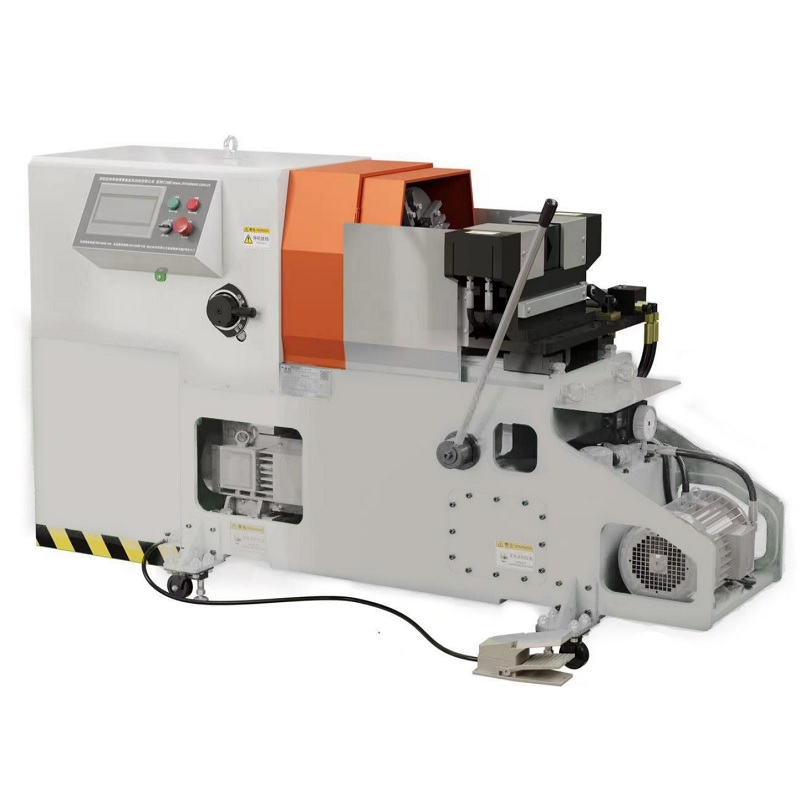

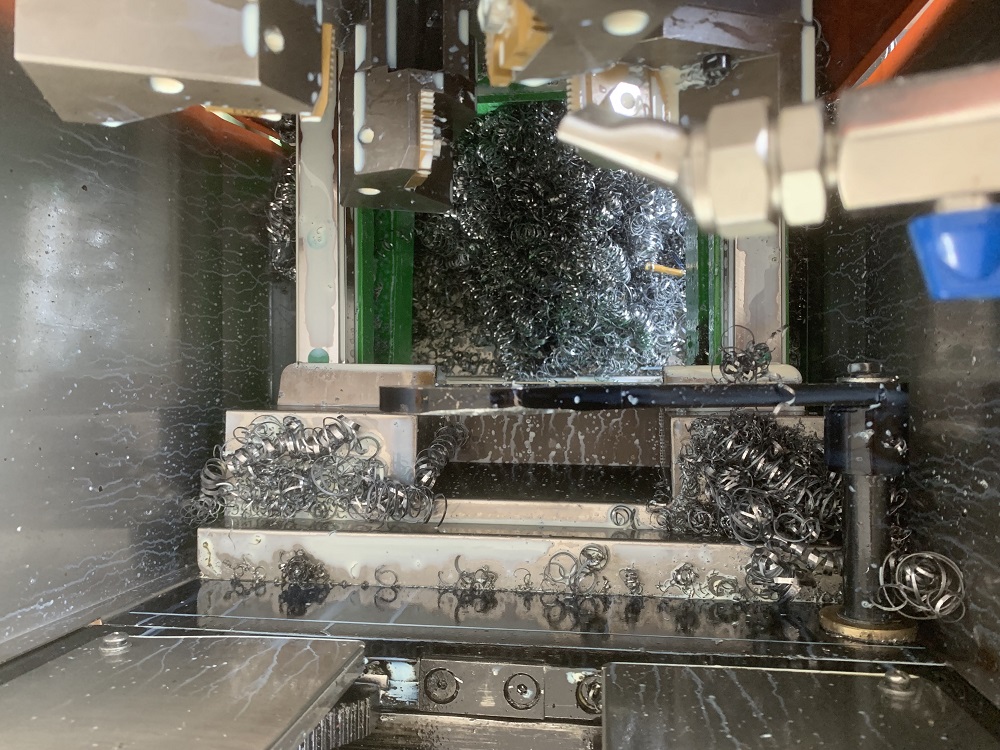

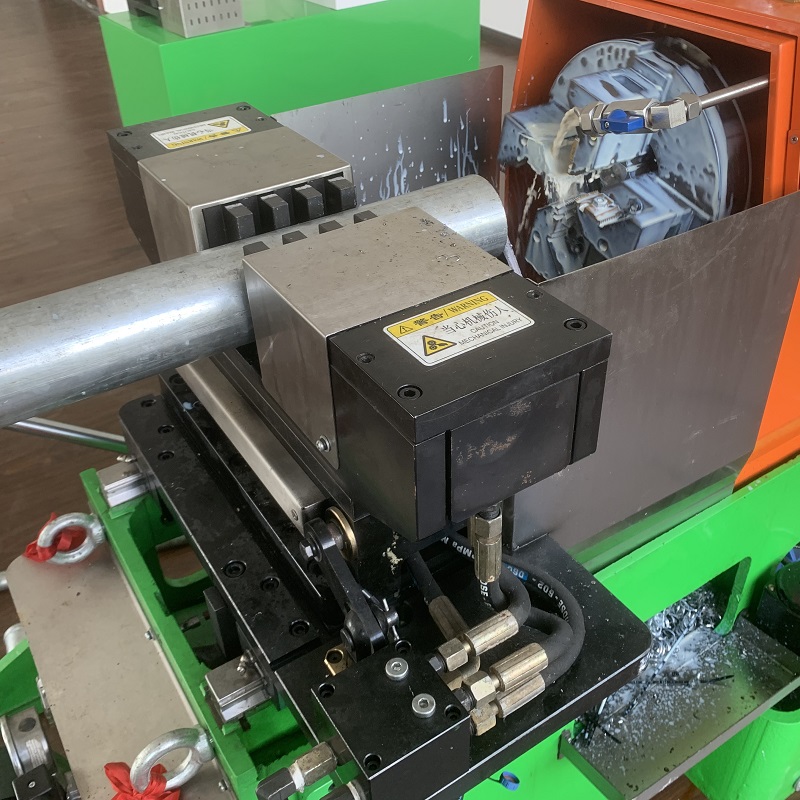

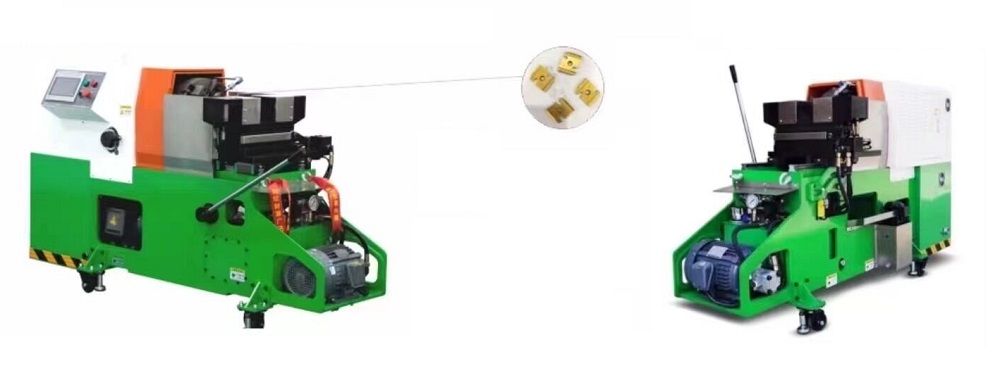

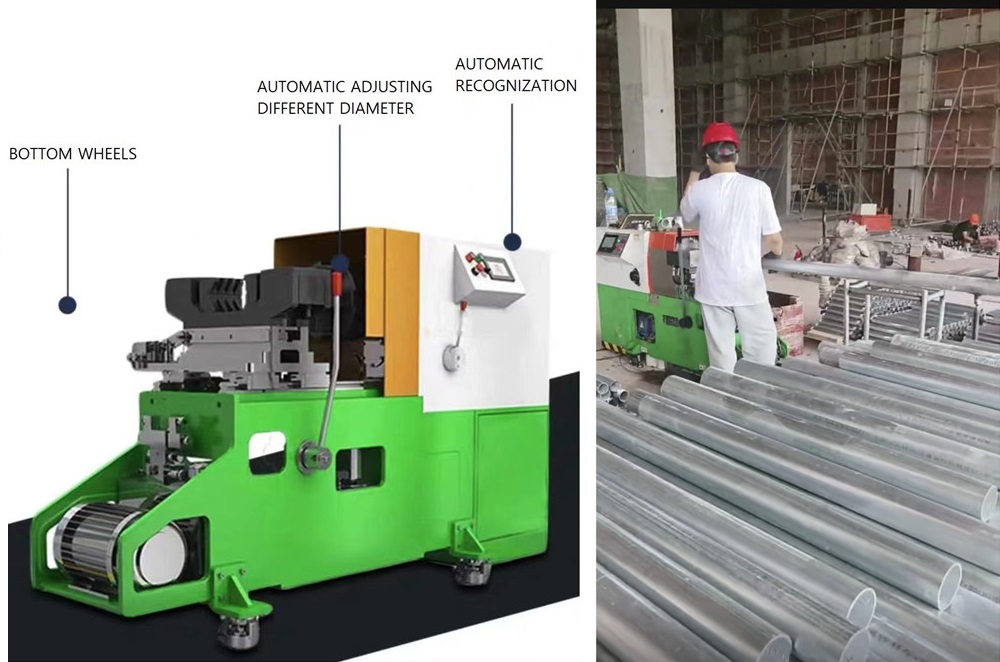

PICTURES OF AUTOMATIC SMART PIPE THREADING MACHINE

VIDEO OF AUTOMATIC SMART PIPE THREADING MACHINE

Besides of this intelligent pipe threading machine, below pipe rotating machine is also available.

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
