UNC threading dies china compatible with RIDGID
- UNC threads cutting
- OEM with good price made in china
- Interchangeable with RIDGID UNC dies
UNC threading dies china compatible with RIDGID
INTRODUCTION OF UNC THREADING DIES CHINA COMPATIBLE WITH RIDGID
UNC threading dies china compatible with RIDGID is made in China dies for UNC threads (UNC – Unified National Coarse Thread), this UNC
chaser cuts thread of America type thread UNC on the bolt. Our UNC die are interchangeble with ridgid die head, it is a cost effective choice for
replacement of the original unified coarse dies.
UNC stands for unified course pitch threads whereas UNF stands for unified fine pitch threads. UNF threads are distinguished by having more
threads per distance than UNC threads. While both UNC and UNF bolts are used for fastening, they are often applied in different fields due to
their unique advantages.
UNC and UNF – Unified Inch Coarse Screw Threads | |||||
Major Diameter | Threads per inch | Major Diameter | Tap Drill Size | Pitch | |
(in) | (tpi) | (in) | (mm) | (mm) | (mm) |
#1 – 64 | 64 | 0.073 | 1.854 | 1.5 | 0.397 |
#2 – 56 | 56 | 0.086 | 2.184 | 1.8 | 0.453 |
#3 – 48 | 48 | 0.099 | 2.515 | 2.1 | 0.529 |
#4 – 40 | 40 | 0.112 | 2.845 | 2.35 | 0.635 |
#5 – 40 | 40 | 0.125 | 3.175 | 2.65 | 0.635 |
#6 – 32 | 32 | 0.138 | 3.505 | 2.85 | 0.794 |
#8 – 32 | 32 | 0.164 | 4.166 | 3.5 | 0.794 |
#10 – 24 | 24 | 0.19 | 4.826 | 4 | 1.058 |
#12 – 24 | 24 | 0.216 | 5.486 | 4.65 | 1.058 |
1/4″ – 20 | 20 | 0.25 | 6.35 | 5.35 | 1.27 |
5/16″ – 18 | 18 | 0.313 | 7.938 | 6.8 | 1.411 |
3/8″ – 16 | 16 | 0.375 | 9.525 | 8.25 | 1.587 |
7/16″ – 14 | 14 | 0.438 | 11.112 | 9.65 | 1.814 |
1/2″ – 13 | 13 | 0.5 | 12.7 | 11.15 | 1.954 |
9/16″ – 12 | 12 | 0.563 | 14.288 | 12.6 | 2.117 |
5/8″ – 11 | 11 | 0.625 | 15.875 | 14.05 | 2.309 |
3/4″ – 10 | 10 | 0.75 | 19.05 | 17 | 2.54 |
7/8″ – 9 | 9 | 0.875 | 22.225 | 20 | 2.822 |
1″ – 8 | 8 | 1 | 25.4 | 22.85 | 3.175 |
1 1/8″ – 7 | 7 | 1.125 | 28.575 | 25.65 | 3.628 |
1 1/4″ – 7 | 7 | 1.25 | 31.75 | 28.85 | 3.628 |
1 3/8″ – 6 | 6 | 1.375 | 34.925 | 31.55 | 4.233 |
1 1/2″ – 6 | 6 | 1.5 | 38.1 | 34.7 | 4.233 |
1 3/4″ – 5 | 5 | 1.75 | 44.45 | 40.4 | 5.08 |
2″ – 4 1/2 | 4 1/2 | 2 | 50.8 | 46.3 | 5.644 |
2 1/4″ – 4 1/2 | 4 1/2 | 2.25 | 57.15 | 52.65 | 5.644 |
2 1/2″ – 4 | 4 | 2.5 | 63.5 | 58.5 | 6.35 |
2 3/4″ – 4 | 4 | 2.75 | 69.85 | 64.75 | 6.35 |
3″ – 4 | 4 | 3 | 76.2 | 71.1 | 6.35 |
3 1/4″ – 4 | 4 | 3.25 | 82.55 | 77.45 | 6.35 |
3 1/2″ – 4 | 4 | 3.5 | 88.9 | 83.8 | 6.35 |
3 3/4″ – 4 | 4 | 3.75 | 95.25 | 90.15 | 6.35 |

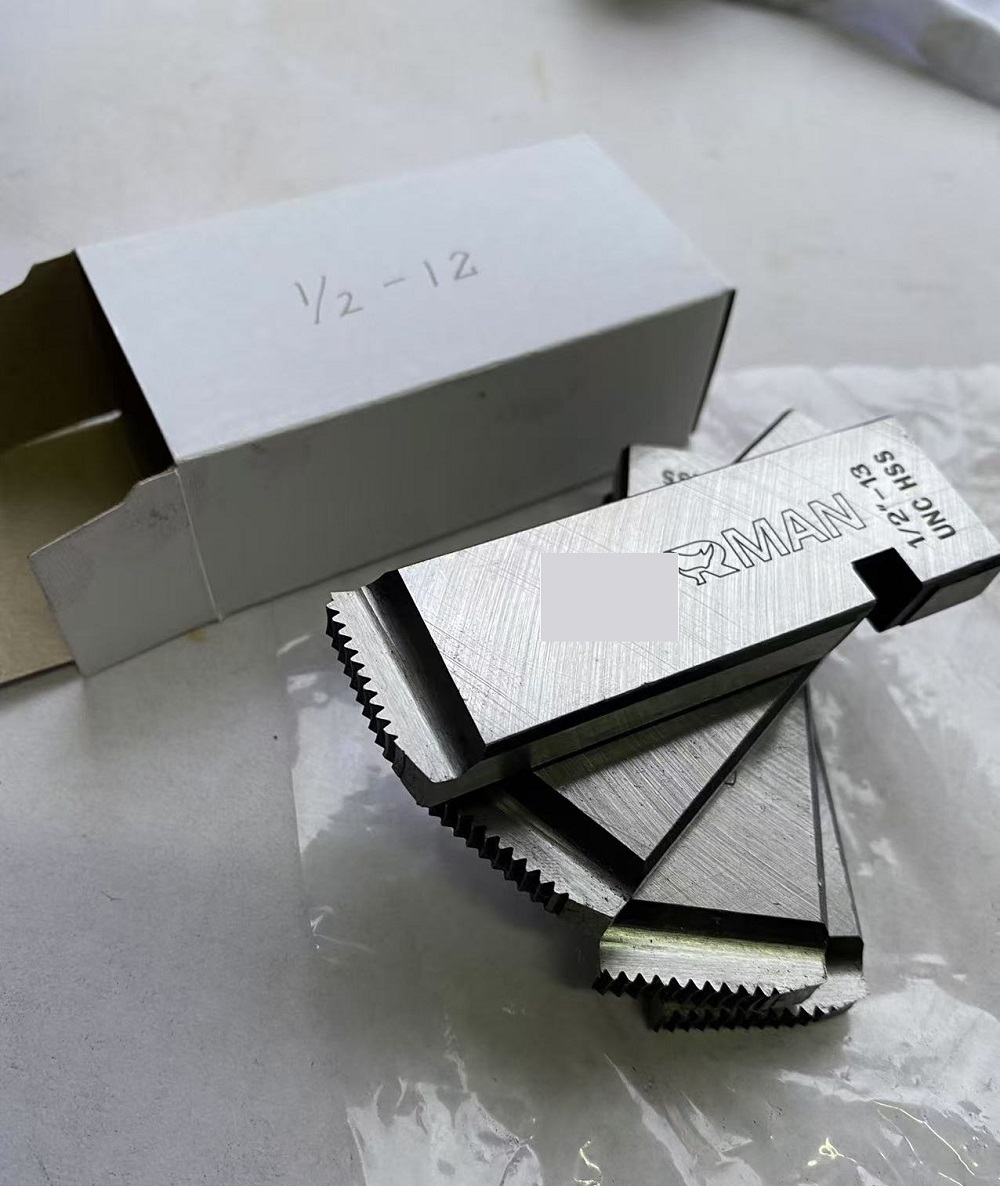

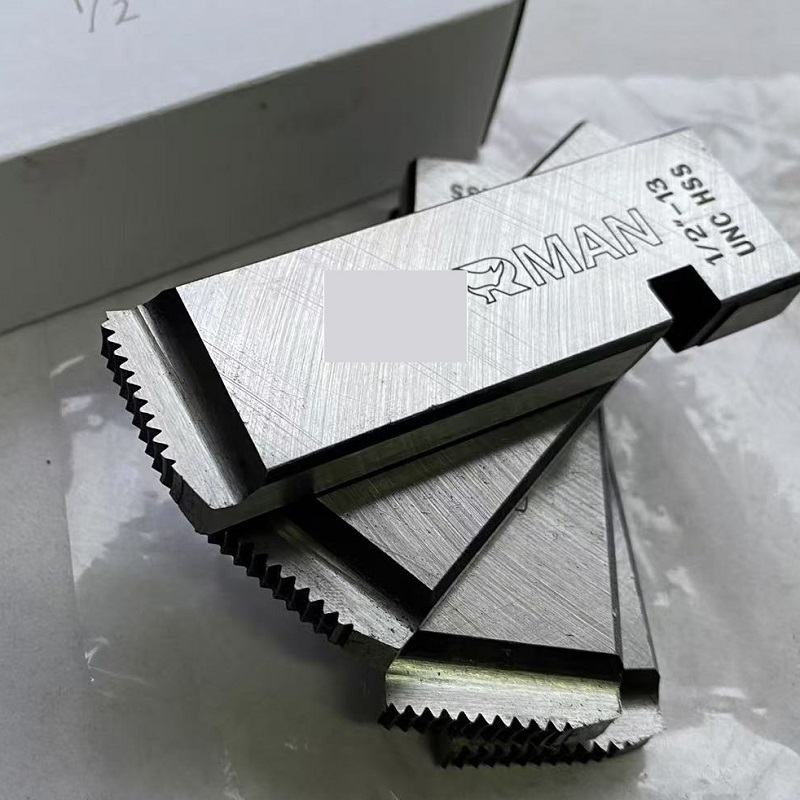

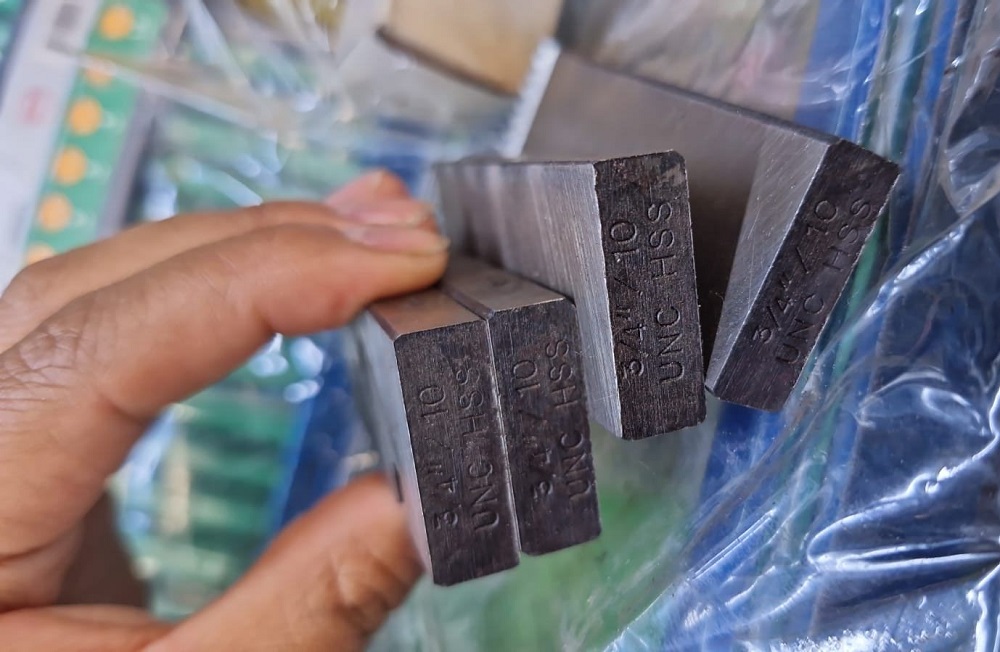

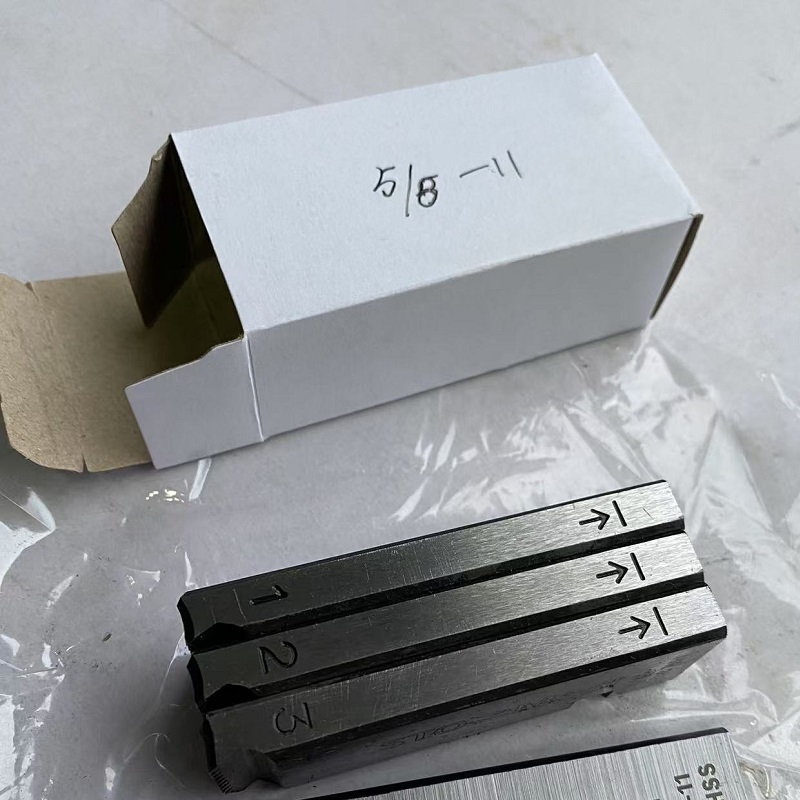

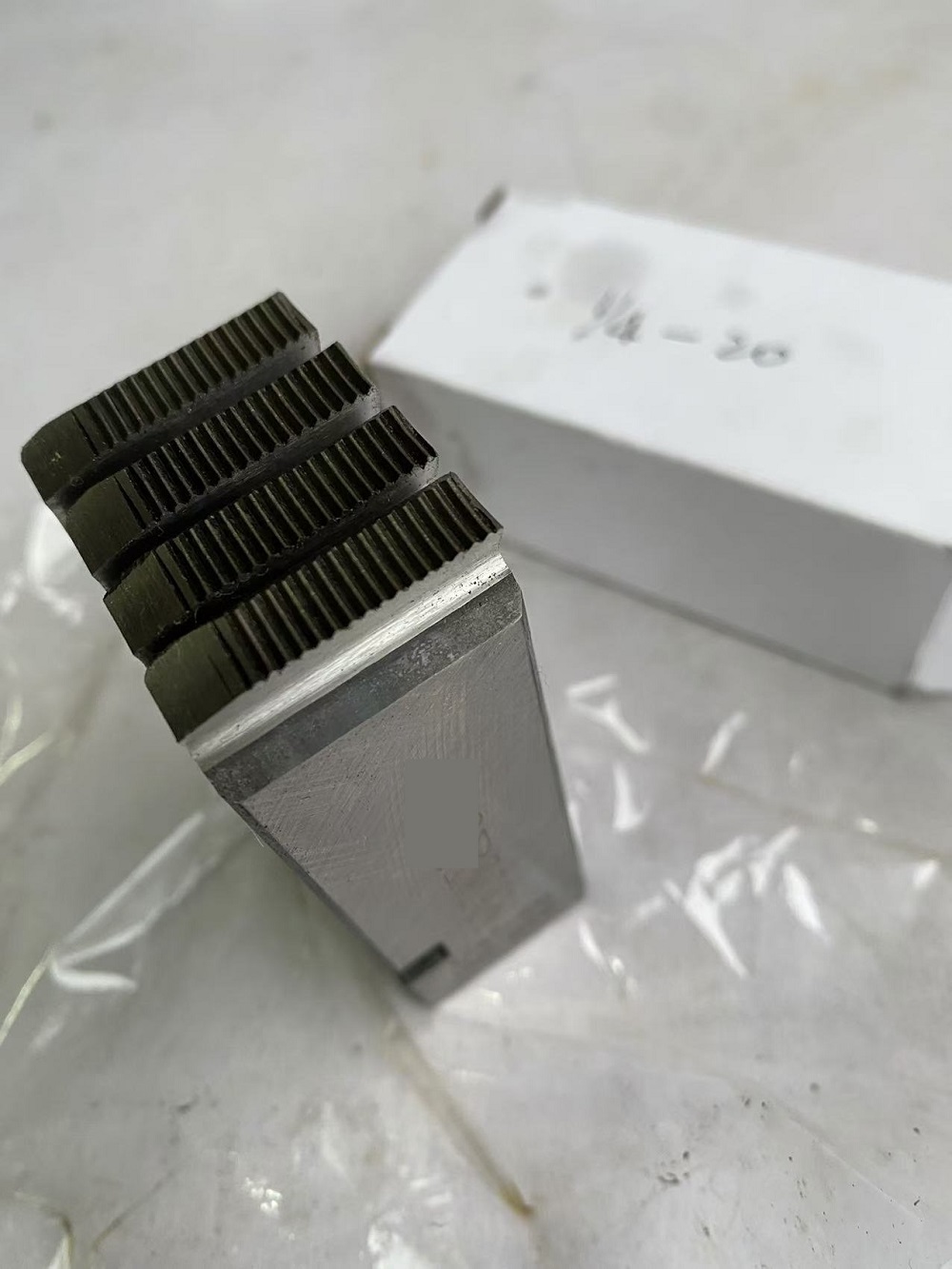

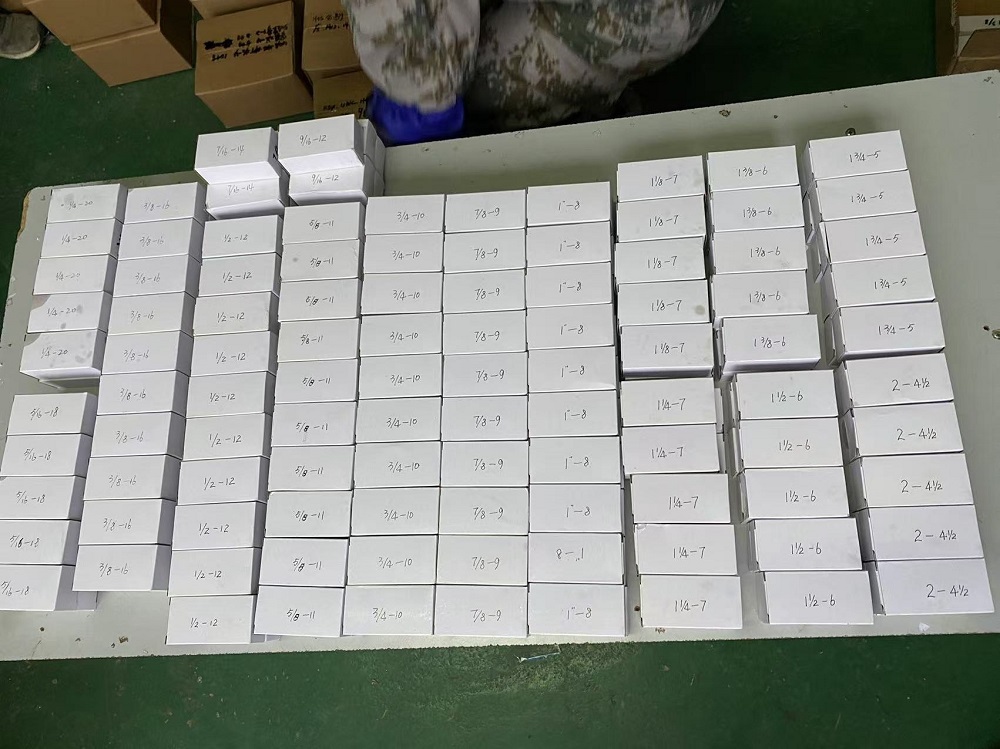

PICTURES OF UNC THREADING DIES CHINA COMPATIBLE WITH RIDGID
F.A.Q.
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
