Hand-held pipe threading machine 11-R die head compatible

Hand-held pipe threading machine 11-R die head compatible

Categories pipe threader dies compatible with RIDGID REX ASADA, Pipe Threading Machine

Light weight, portable design.
Precision thread cutting for NPT/BSPT
It is idea for on site gas pipe applications
It is equipped with 11-R Die Heads and Alloy Dies that fit RIDGID ® 11-R Pipe Threaders

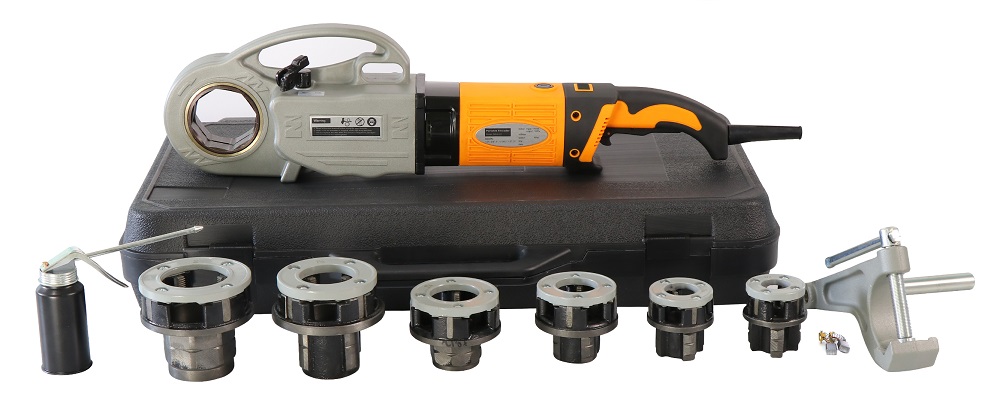

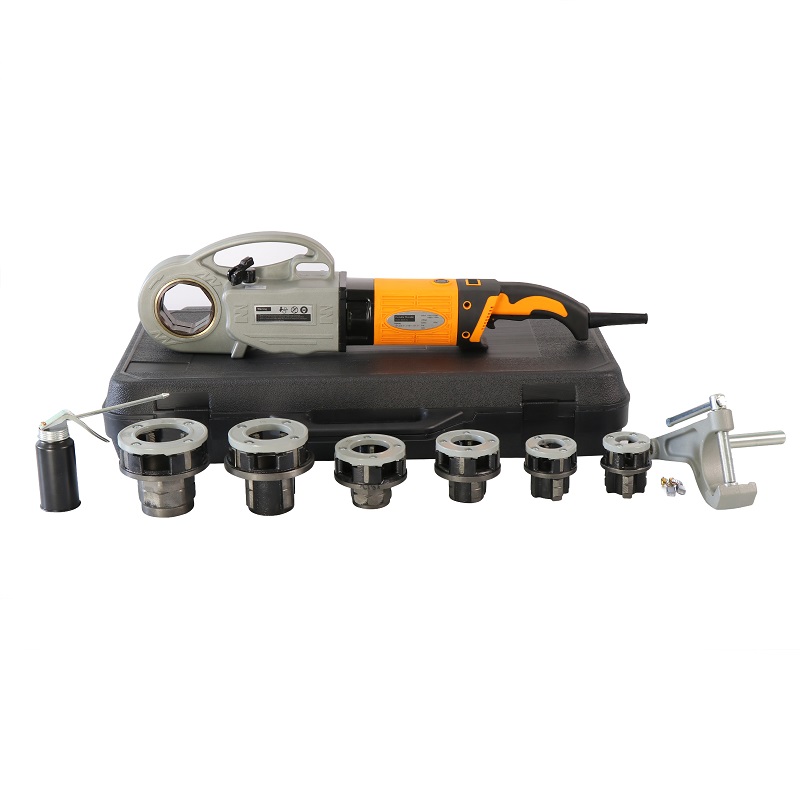

Standard with 6 Die Heads : 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ (Type 11-R)
Standard with 6 Alloy Dies : 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ (Type 11-R)
Dies work with RIDGID ® 11-R and 12-R Dies
Heavy-duty paddle-type switch with separate mechanical transmission FOR/REV switch

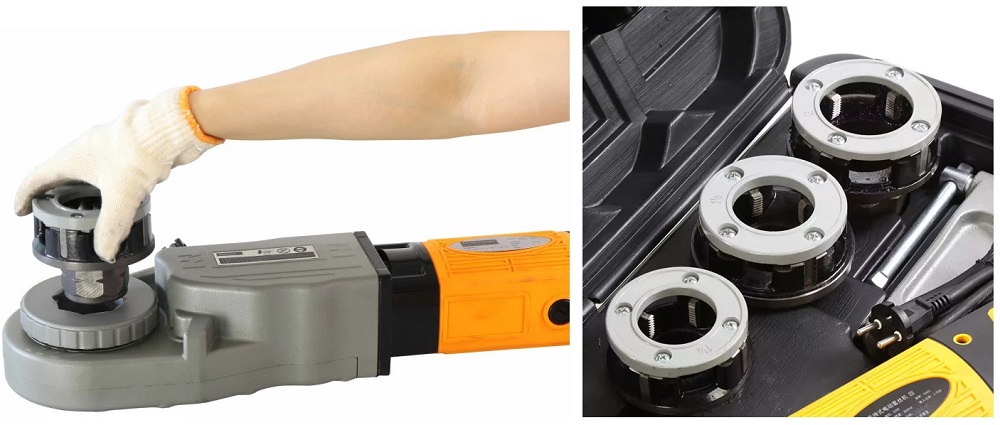

Die Head Adapter: Used with ½” through 1¼” die heads.
Approved by ETL and CE standards.
Warranty : 1 Year

Hand-held pipe threading machine 11-R die head compatible

INTRODUCTION OF PORTABLE ELECTRIC PIPE THREADING MACHINE

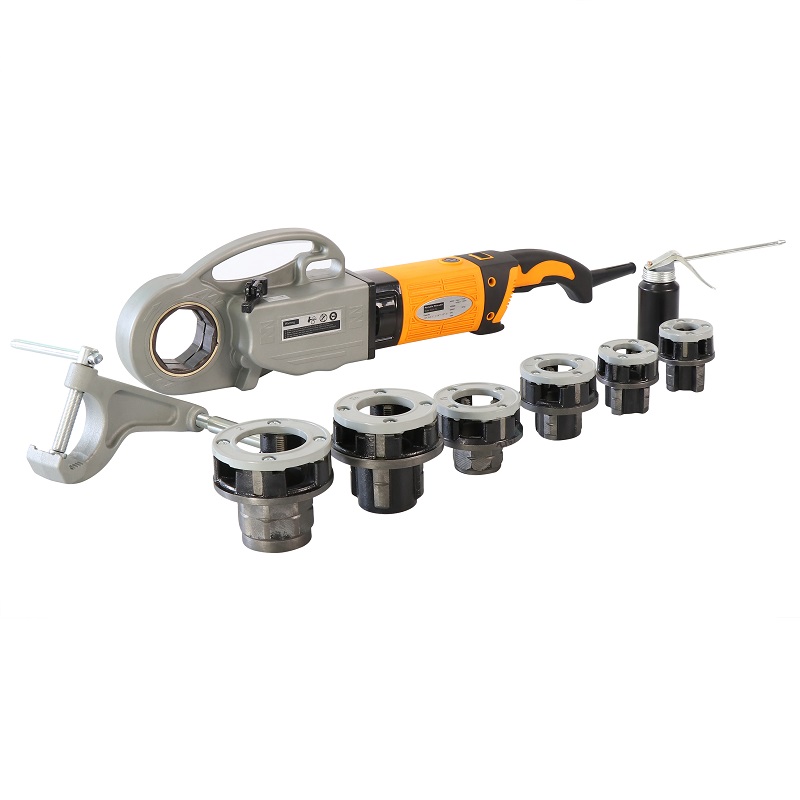

The hand-held pipe threading machine 11-R die head compatible is a light weight and powerful portable threader. It is designed for threading

½”-2” pipe with 11-R Die Heads. The STQ30-2C is equipped with a full set of 11-R Die Heads, ½”-2”, the SQ30-2C Support Arm and a durable

carrying case. The STQ30-2C Power Drive is the perfect portable power drive for maintance and repair workers, as well as service plumbers
requiring 2” pipe capacity.

The STQ30-2C Pipe threader provides power for threading pipe and conduit.

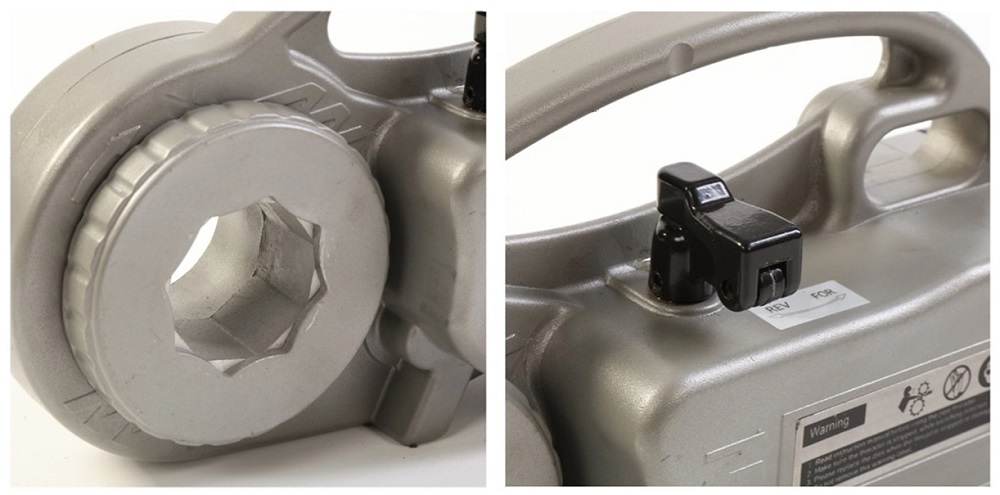

Forward and reverse rotation is available with a REV/FOR switch while ON/OFF is controlled by a switch that cuts off power when released.
An extra adapter is required for the 1/2″ – 1 1/4″ size pipe threading.

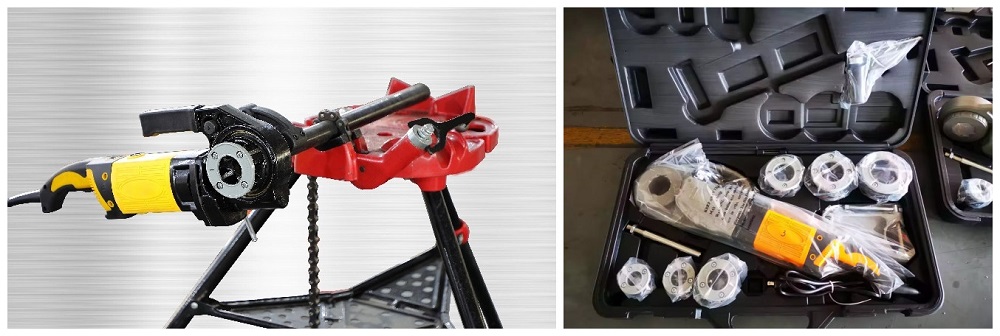

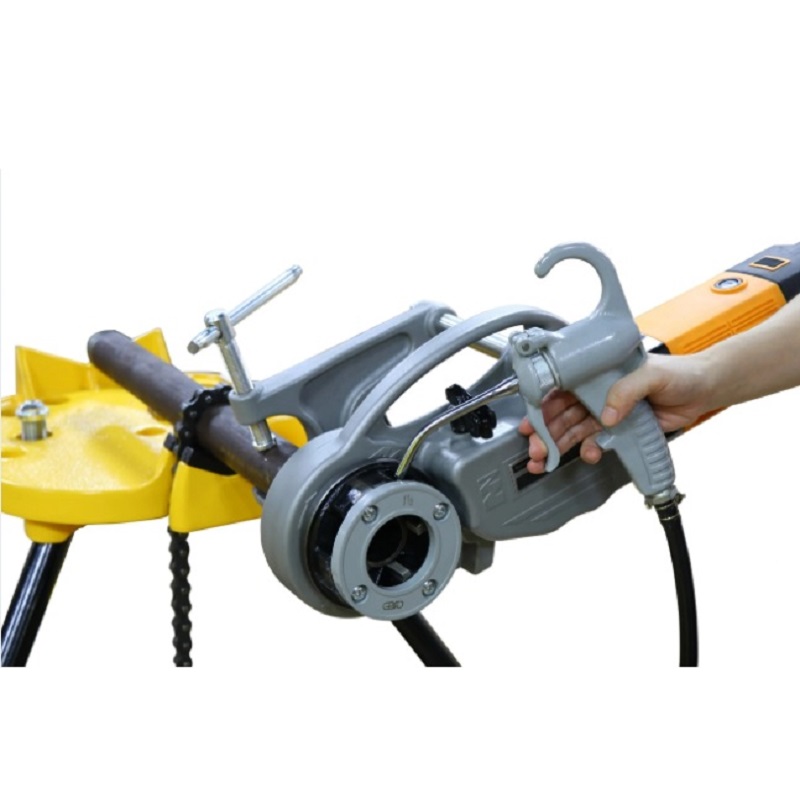

Support Arm should be used to secure the threader and resist high handle forces developed when threading 3/4″ or larger pipe.

TECHNICAL DATA OF PORTABLE ELECTRIC PIPE THREADING MACHINE

Hand-held pipe threading machine 11-R die head compatible 1/2″-2″
Model: STQ30-2C
Motor: input 1700W, output 1020W, universal type
Speed: 30 RPM for threading, 55RPM reverse
die head: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″(Type 11R)
Gear Housing: Aluminum

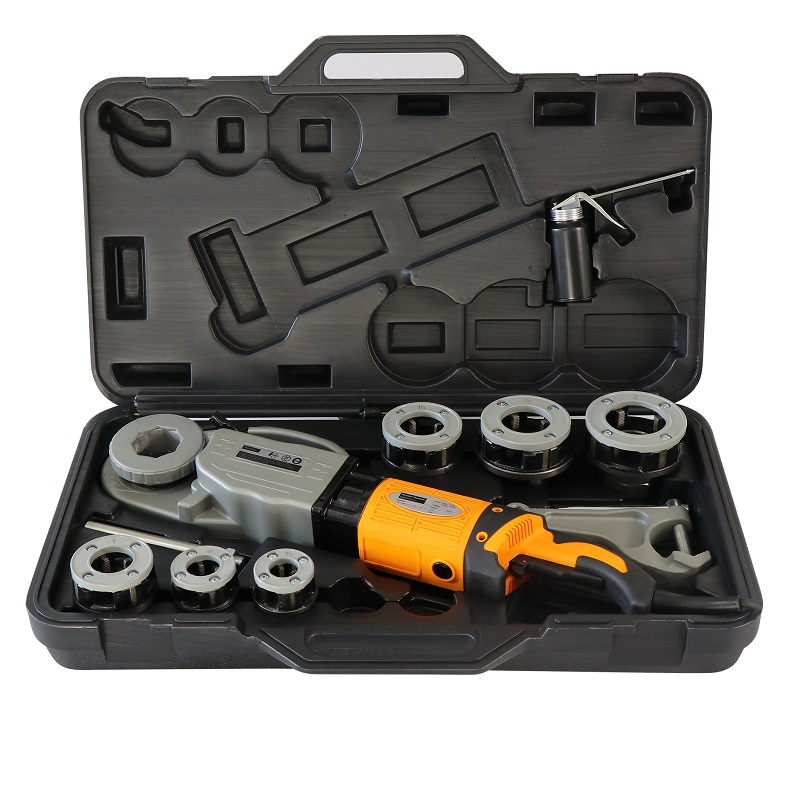

Standard equipment including: carrying case
Standard with alloy dies
CE/ETL certified
Weight: 24.5kgs
Packing size: 81*19*51cm

VIDEO OF PORTABLE ELECTRIC PIPE THREADING MACHINE

FEATURE OF PORTABLE ELECTRIC PIPE THREADING MACHINE

Light weight, hand-held, powerful, portable power drive, equipped with reversible 110V or 220V universal motor.
Dies could be interchangeable with RIDGID.
Bigger power and reinforced gear box compared the old model STQ30-2B.
Mechanical transmission reverse design, to prevent the motor from damage.
Durable heavy-duty fiberglass reinforced plastic body and handle.
Ideal for on-site applications such as gas line pipe installation.
Equipped with 11-R die Heads and alloy dies that fit RIDGID 11-R Pipe threaders.
Standard with 6 die heads : 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ (Type 11-R).
Standard with 6 alloy dies : 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ (Type 11-R).
Interchangeable with RIDGID 11-R and 12-R Dies.
Heavy-duty paddle-type switch with separate mechanical transmission FOR/REV switch
ETL and CE certified.

VIDEO OF PORTABLE ELECTRIC PIPE THREADING MACHINE

Find compact pipe threading machine instead of hand-held pipe threading machine.

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

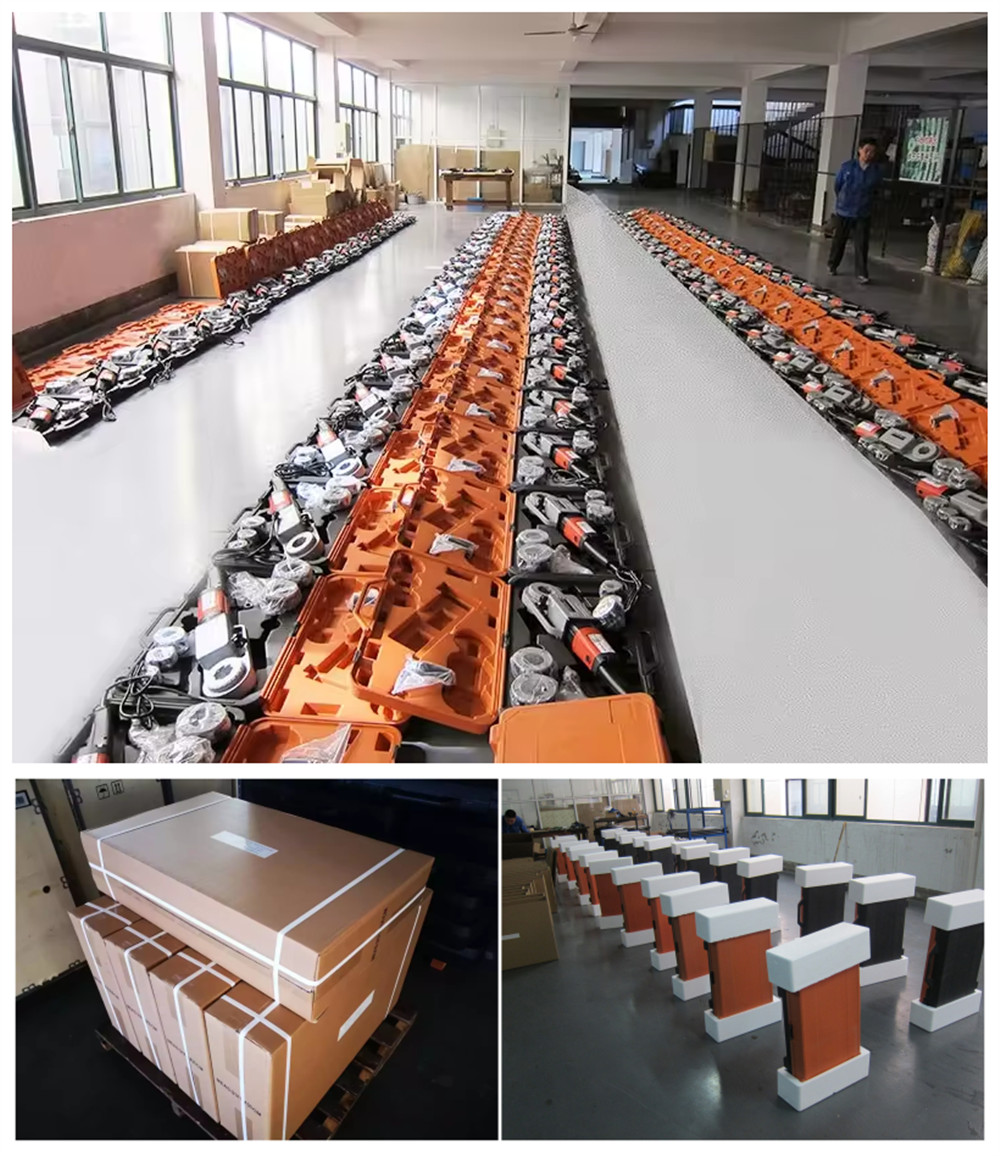

We always test at least one pipe on every pipe machine before we ship out.
