Automatic pipe threading machine

  • Automatic pipe loading, feeding and thread cutting.

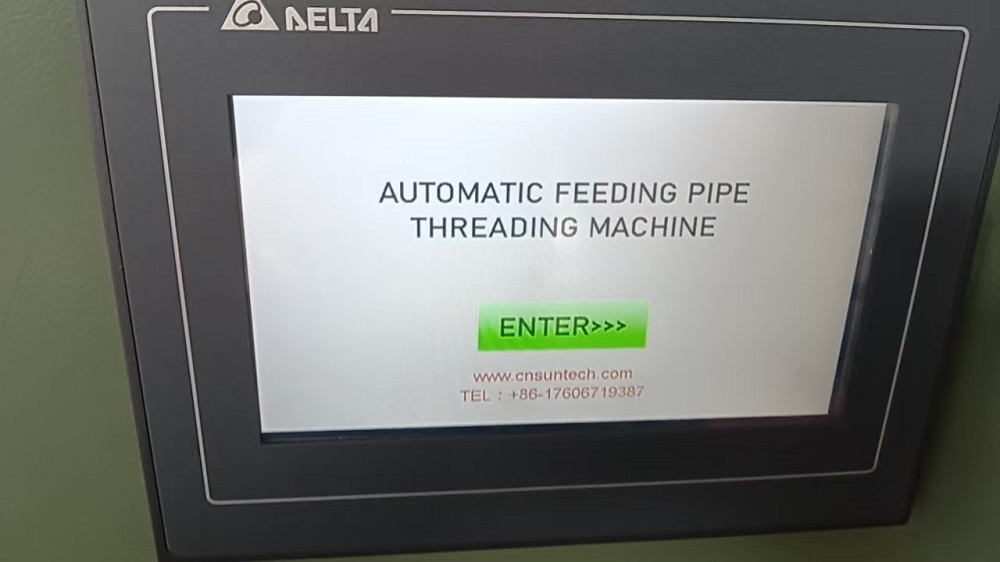

  • Machine is PLC controlled.
  • Pneumatic driven blade-in and blade-out, pipe clamping and loosing is hydraulic driven. Feeding unit is also pneumatic.
  • Can work with automatic feeding pipe cutting line.

Automatic pipe threading machine

INTRODUCTION OF AUTOMATIC FEEDING PIPE THREADING MACHINE

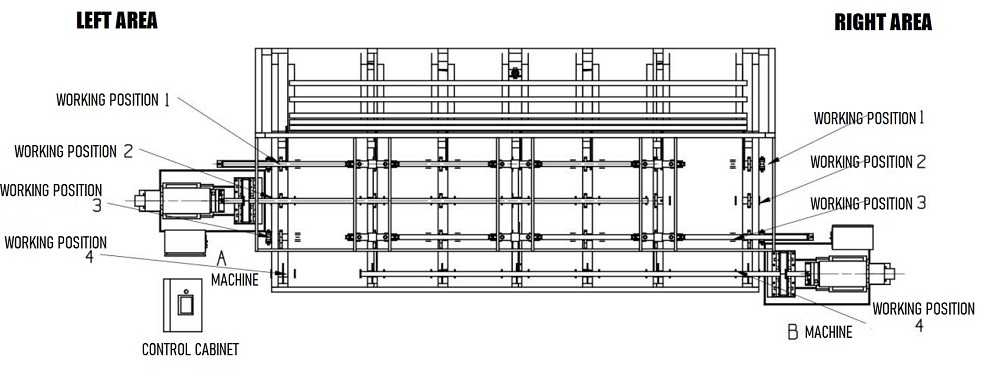

Automatic pipe threading machine are equipped with pipe loader, pipe feeding table and two pipe threading machine, it is capable of doing

both side threading on steel pipe and feed pipes one by one from a bundles of pipes and automatically feed pipe into the threading die head.



Automatic pipe threading machine



PIPE THREADING MACHINE BANNER

TECHNICAL DATA OF AUTOMATIC FEEDING PIPE THREADING MACHINE

Capacity: Diameter 1-2.5inch steel pipe DN25-65
Totol power of motor: Complete line 25-28kw (threading machine main motor 7.5kw, servo motor 1.5kw)
Main shaft rotation speed: 0-95 rpm
Plate stroke: 180mm
Dimension: Main threading machine:1750*1400*1700mm
Hydraulic station size:630*500*700mm
Middle feeding platform 2200*4500mm

VIDEO OF AUTOMATIC FEEDING PIPE THREADING MACHINE

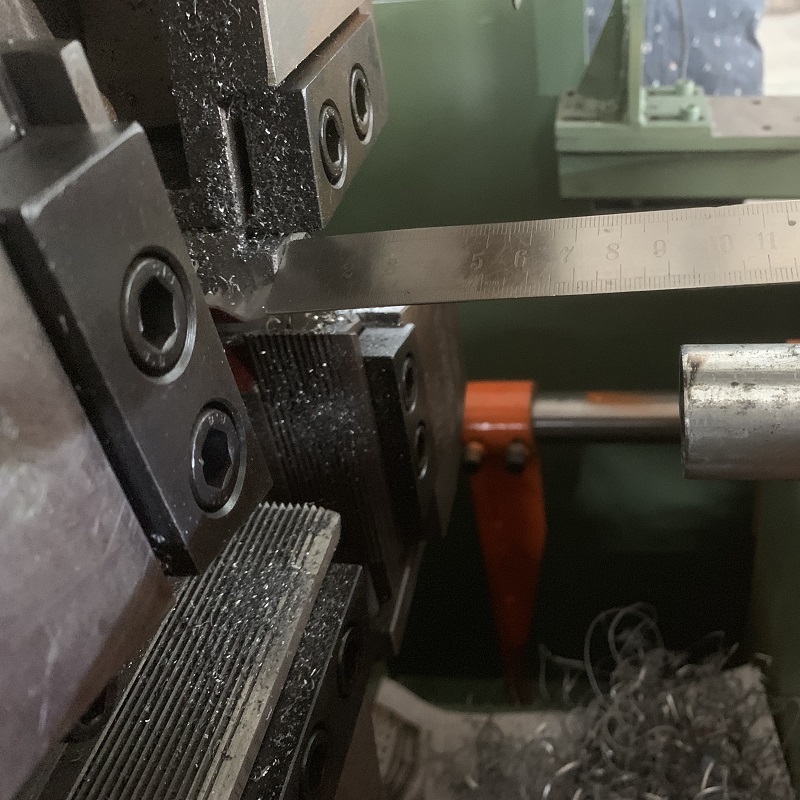

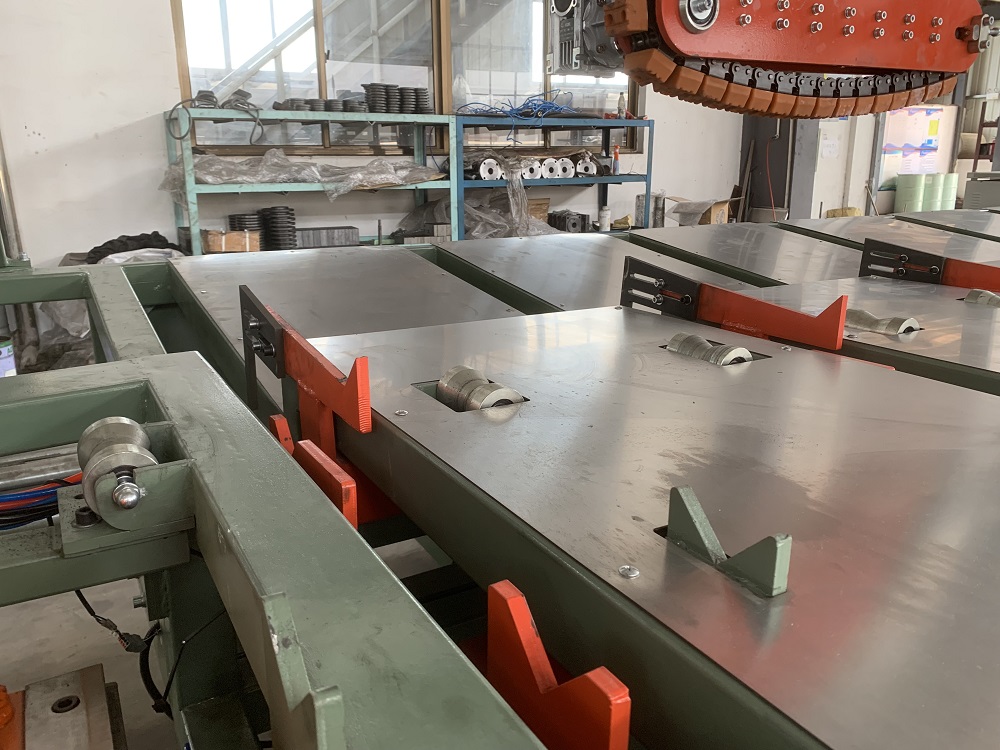

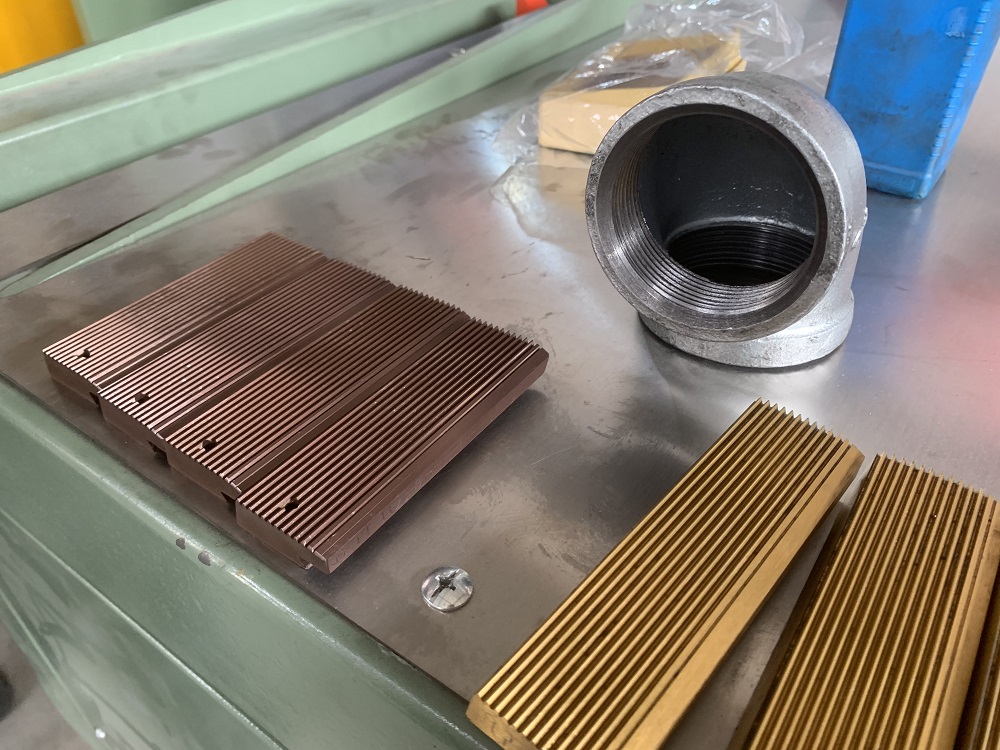

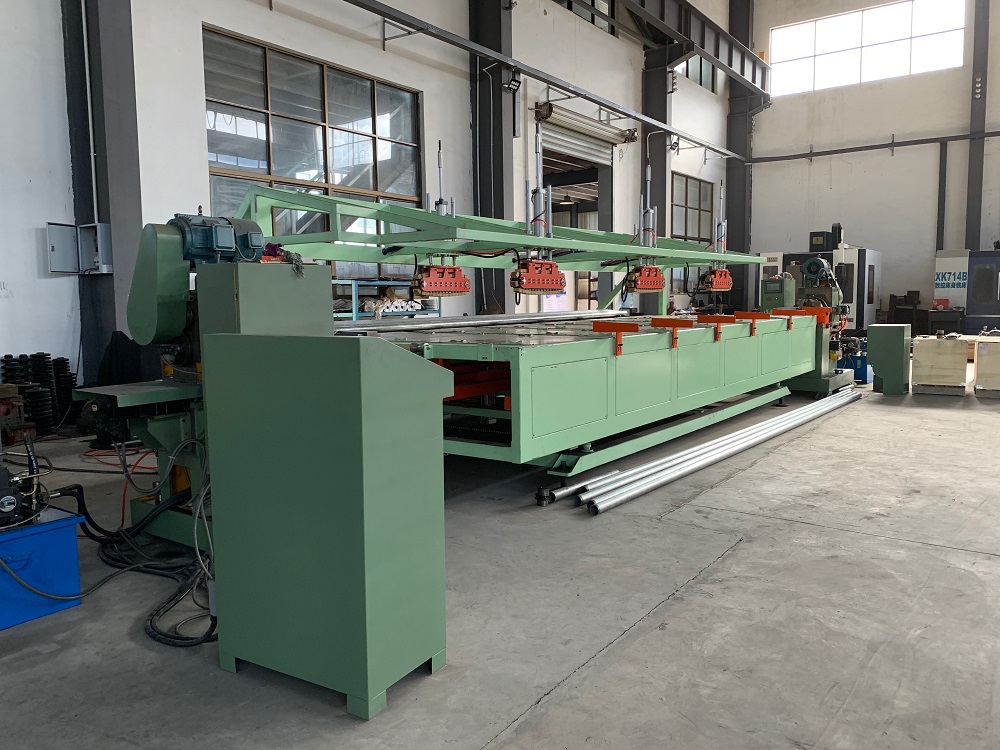

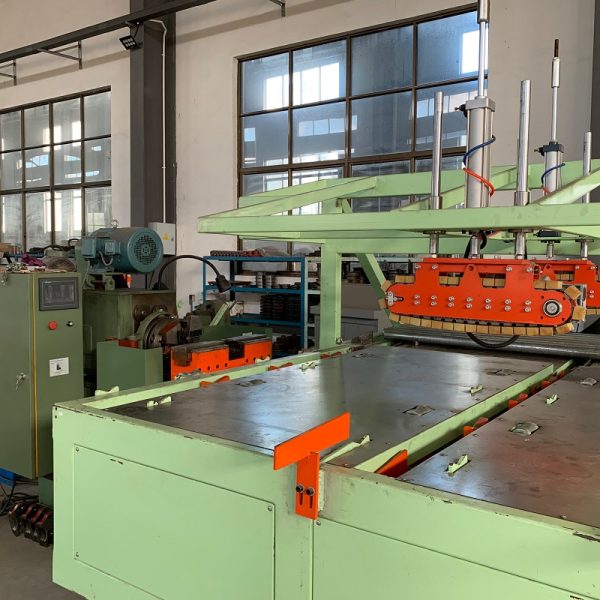

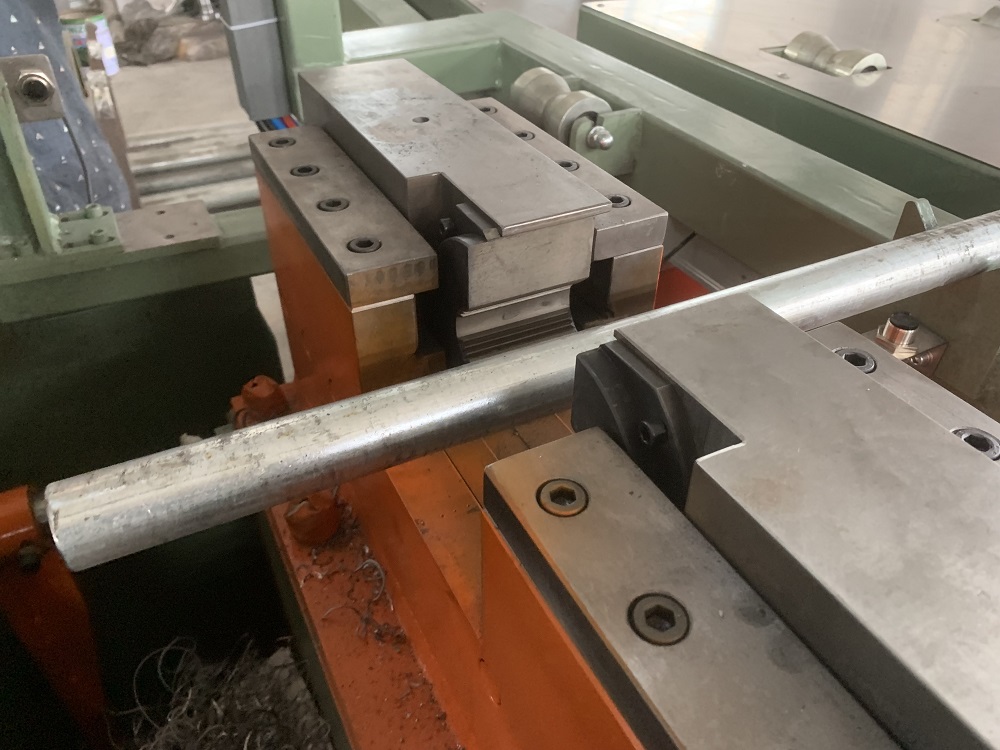

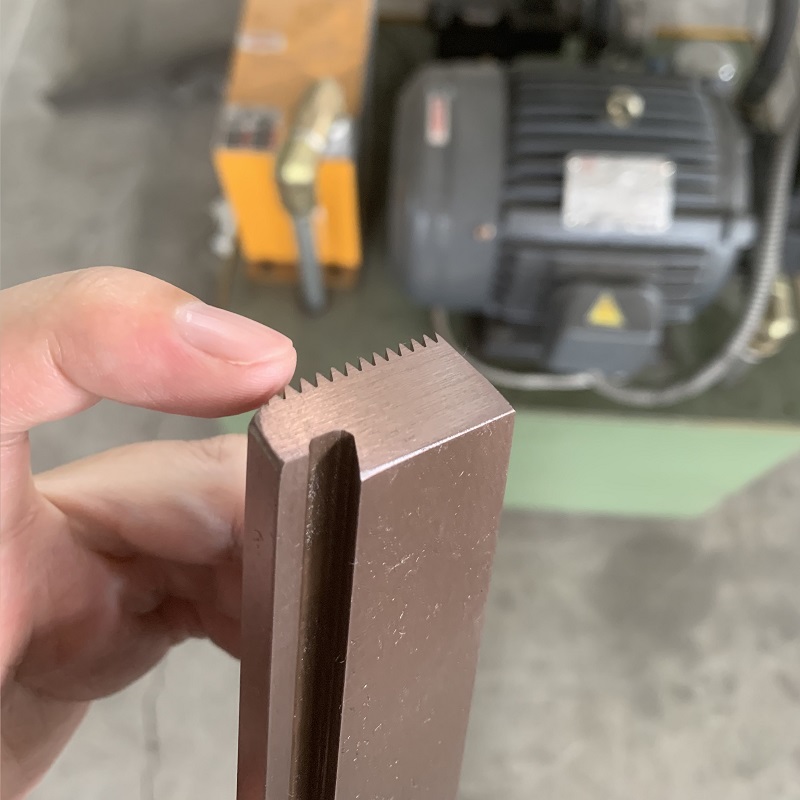

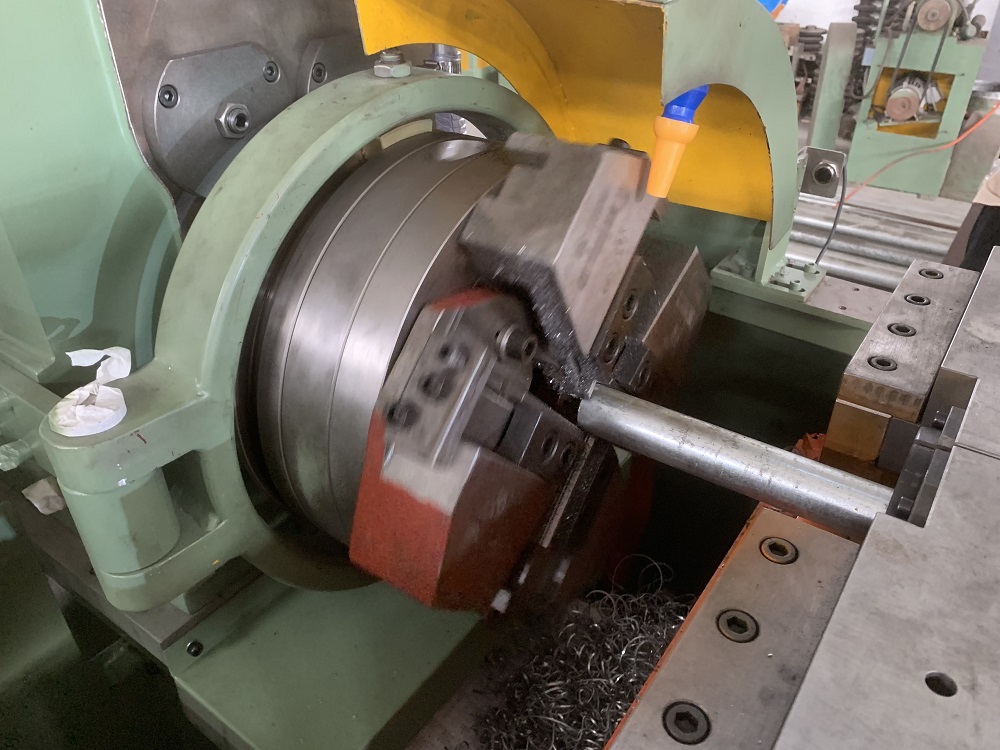

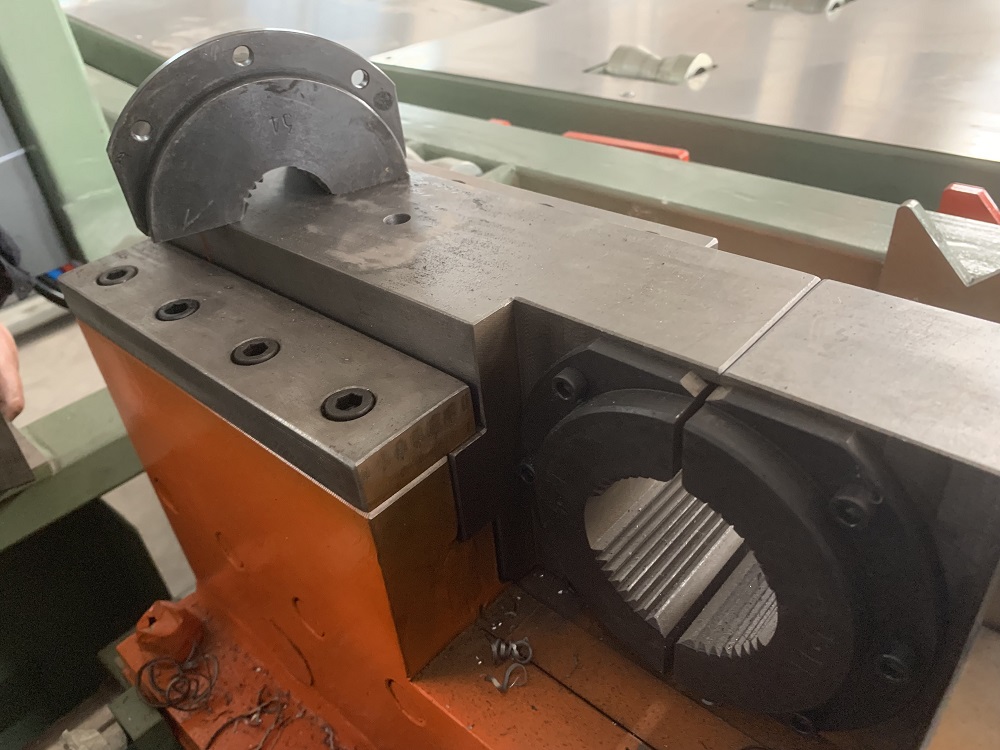

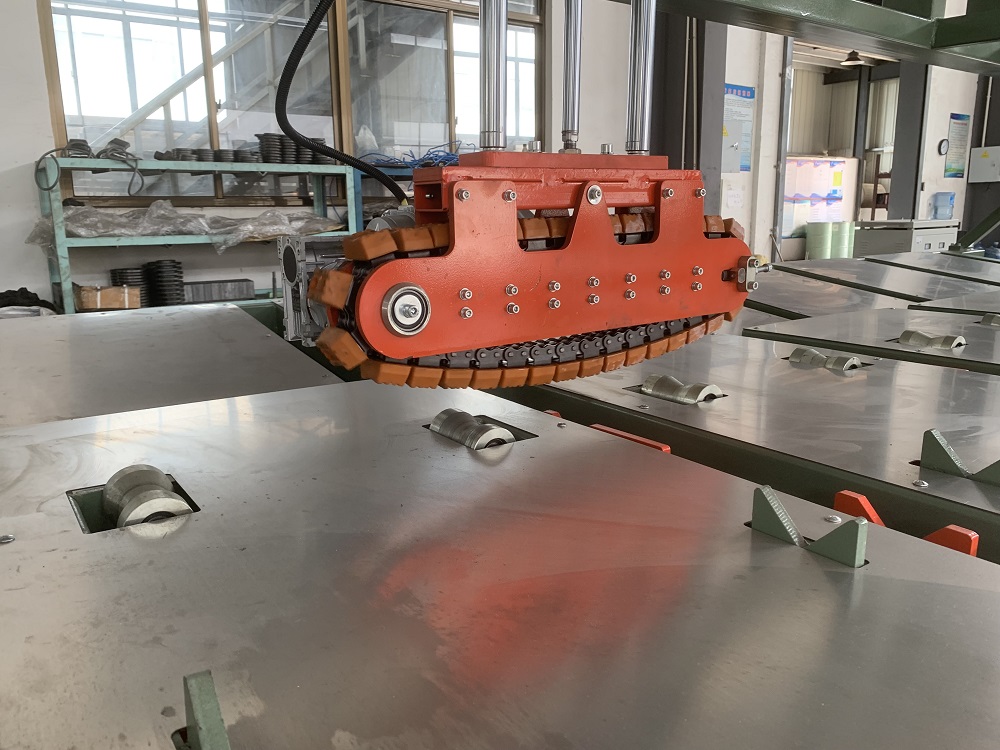

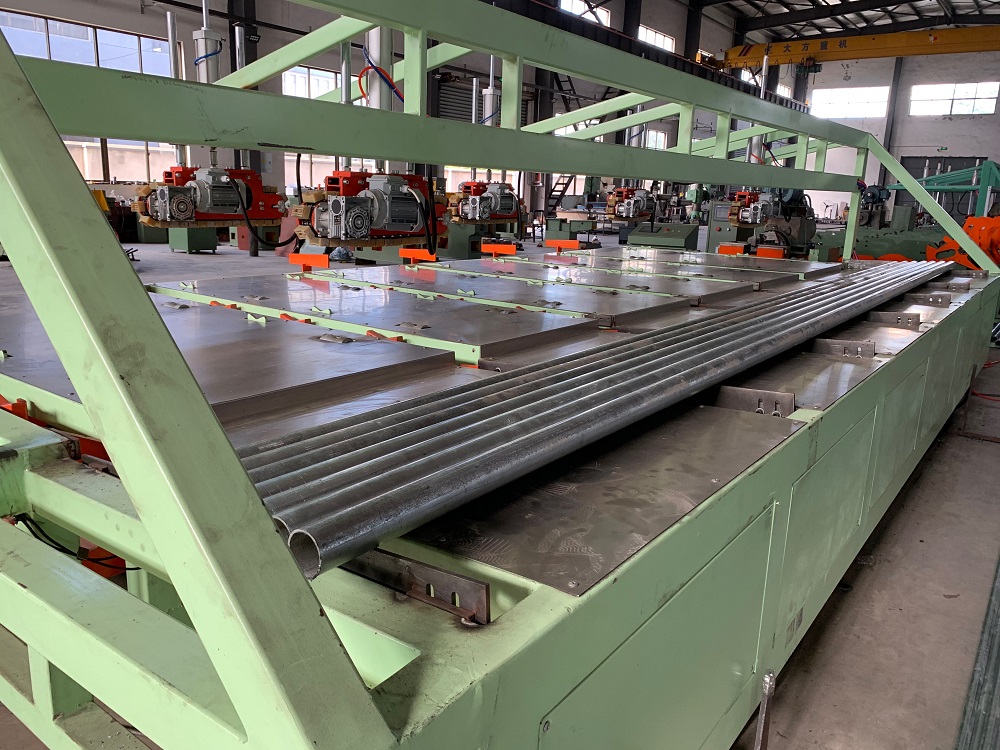

PICTURES OF AUTOMATIC FEEDING PIPE THREADING MACHINE

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

Automatic pipe threading machine

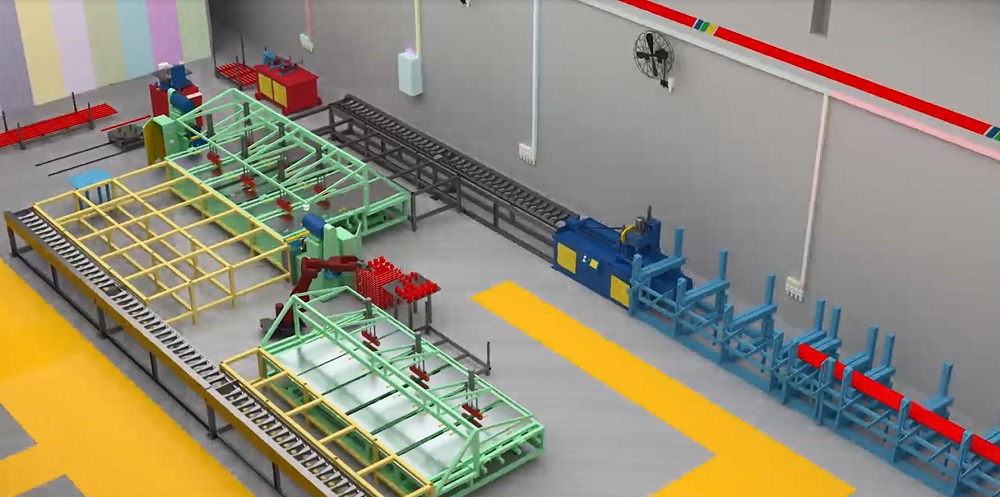

We also have automatic feeding tube cutting machine to work with this automatic tube threading machine, so that you can get threading and

cutting done in fully automatic process.

Automatic pipe threading machine

How to choose automatic pipe threading machine?



F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
