Pipe Drain Cleaning Machine
- Economic type electric pipe drain cleaner with good price.
- Standard with free 30mm size cable totally 20 meters.
- Protection hose is optional.
Pipe Drain Cleaning Machine
INTRODUCTION OF SPRING DRAIN CLEANER
Pipe Drain Cleaning Machine is applicable to remove various blockages of pipelines, it suits for households, factory, civil engineering units. This kind of machine is used to clean various debris, creams, chemical deposits, house-hold wastes ,etc .which are blocked in pipelines. High-speed cleaning gets the job done faster and better. Unique, easy-to-use, instant-acting cable clutch maximizes operator control. Pulling the handle down so that the cable spins, when releasing handle, cable stops instantly. Wheels to the job site, sets up fast, cleaning fast.
TECHNICAL DATA OF SPRING DRAIN CLEANER
Pipe Drain Cleaning Machine
Model: STD200B
Capacity: 50-200mm
Motor: 750w

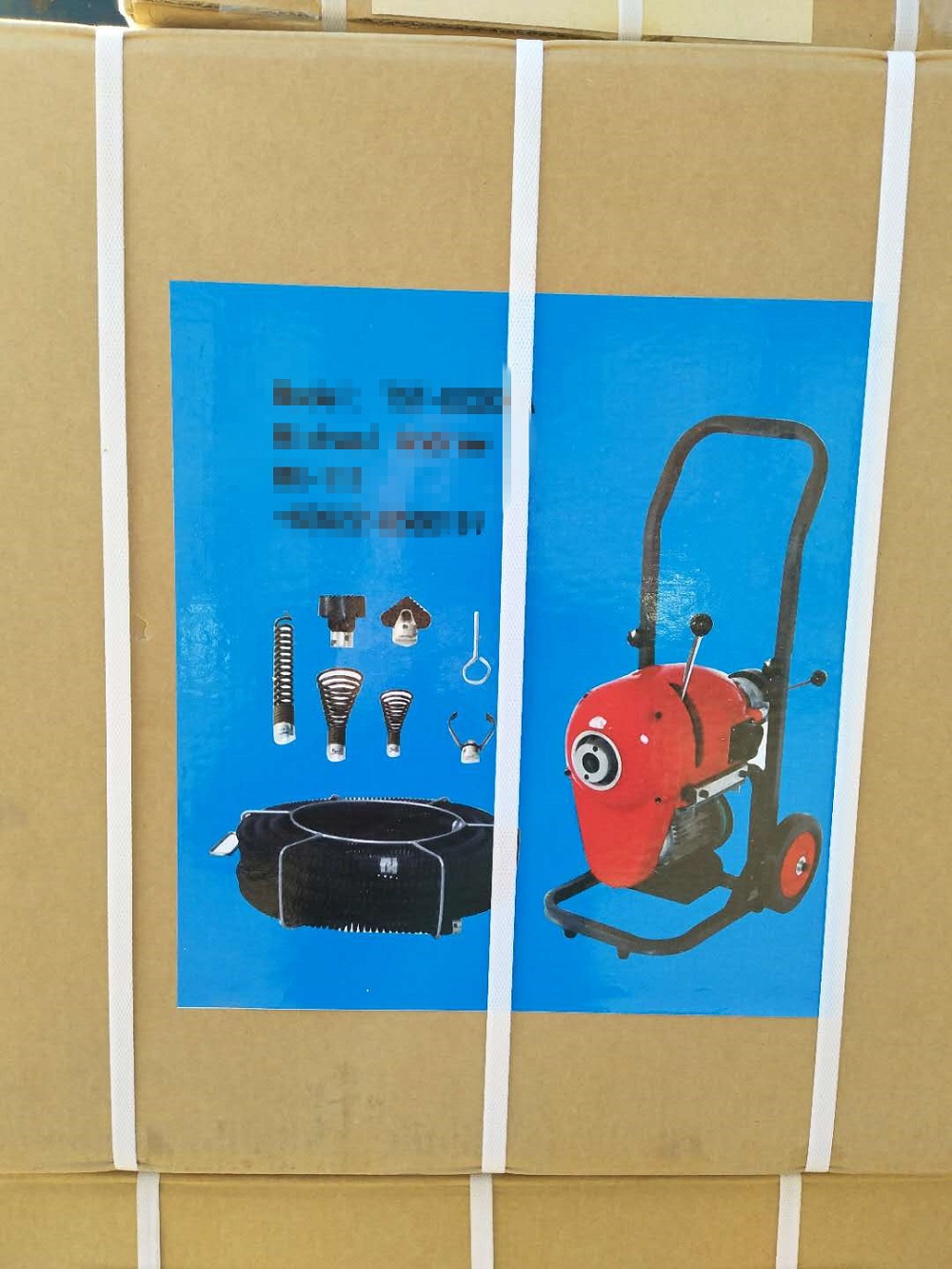

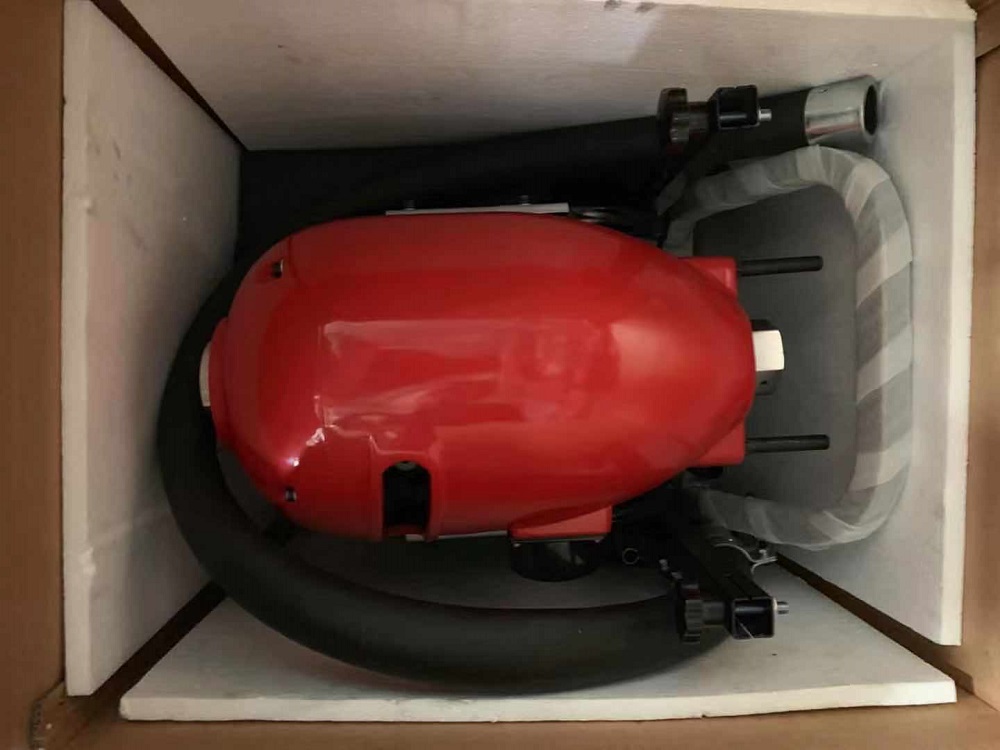

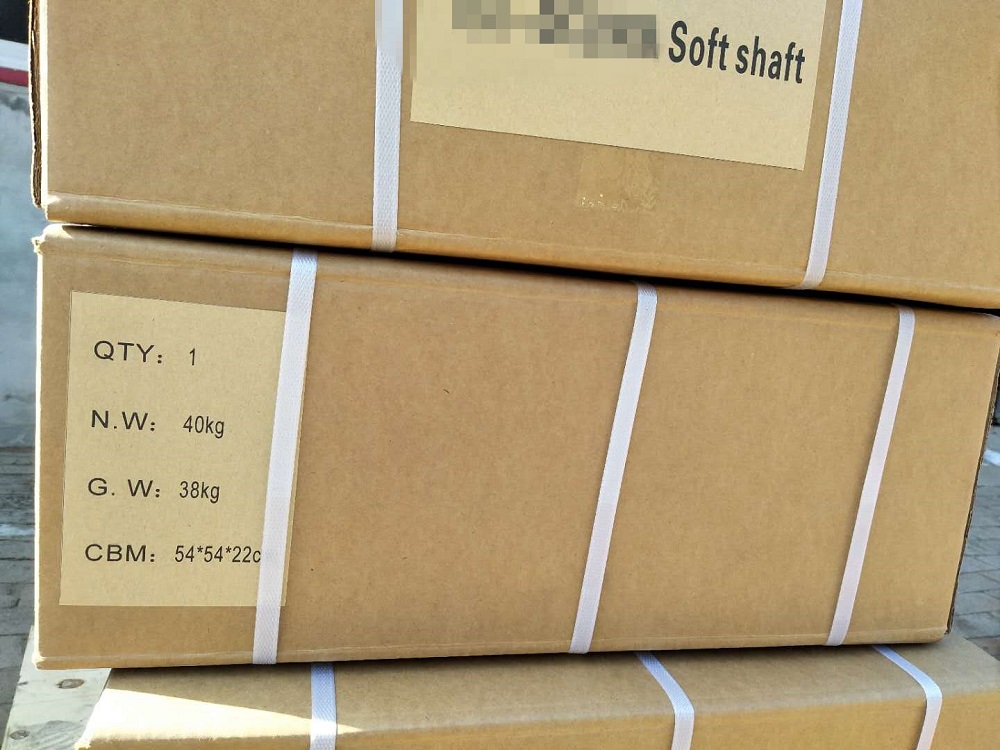

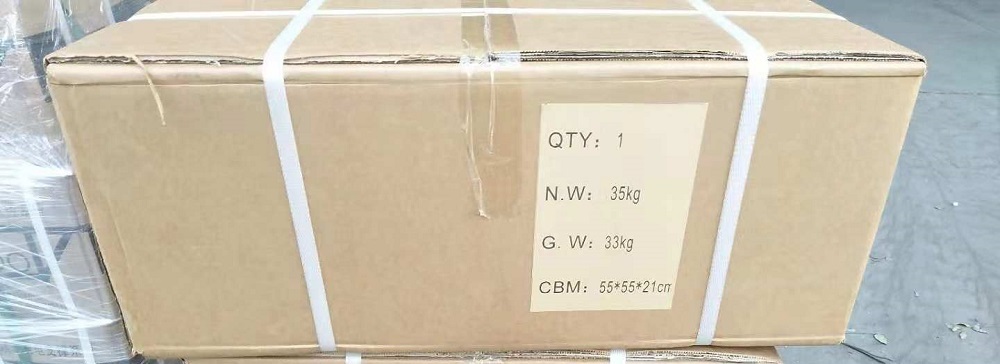

Packing: 2 Cartons / Set (54x54x22cm + 57x46x54cm)
G.W./N.W.: (40+35)/(38+32)kgs

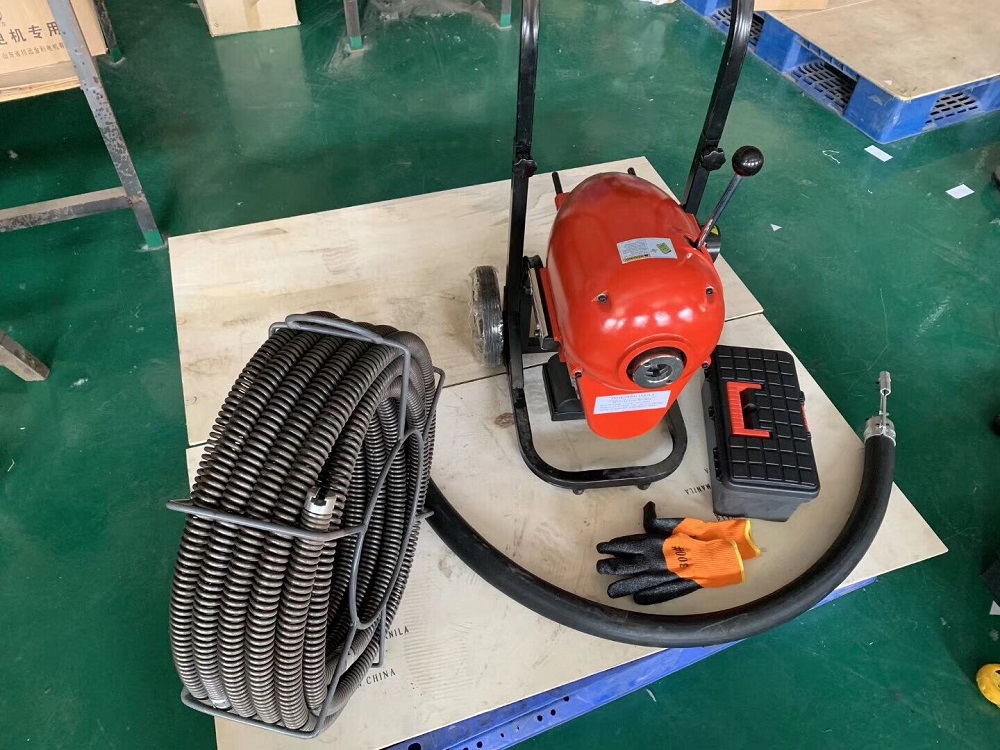

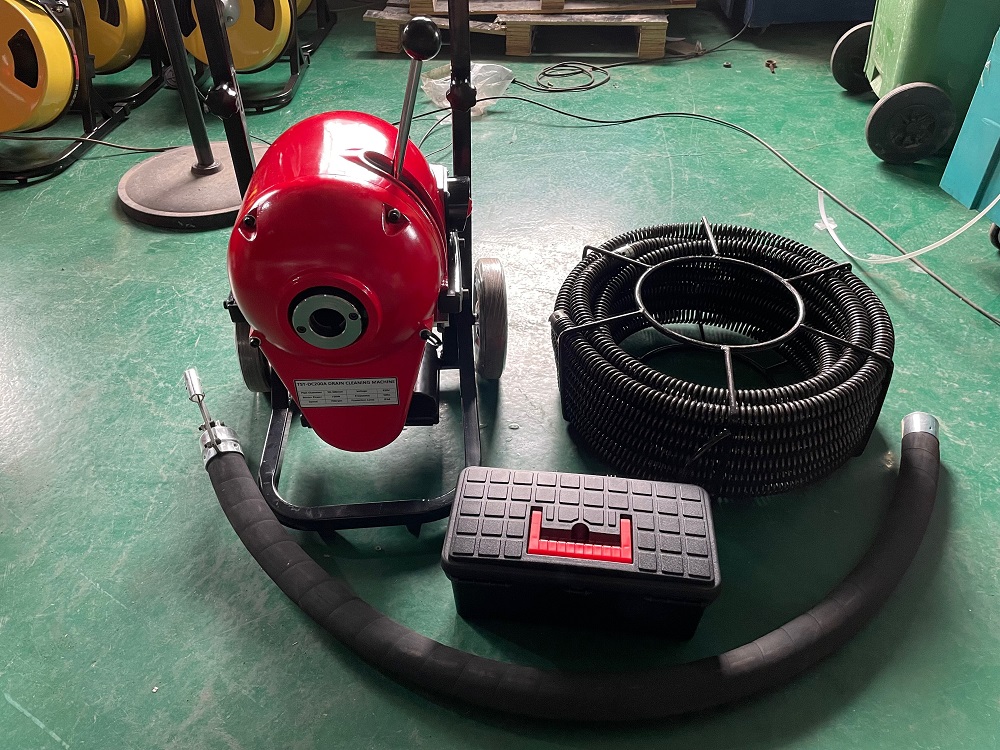

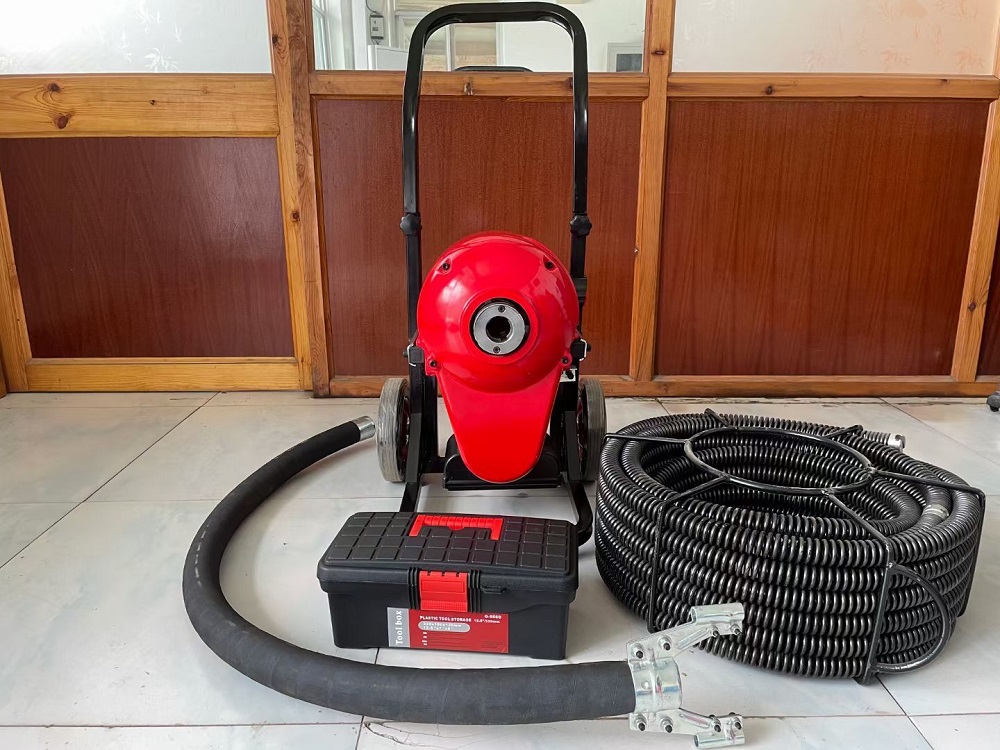

Standard with 30mm cable 20meters (5meterx4pcs)
VIDEO OF SPRING DRAIN CLEANER
FEATURE OF SPRING DRAIN CLEANER
The finest all-around and drain cleaning machine. One mancan easily clean the heaviest blockages-indoors or out. High-speed cleaning gets the job done faster and better. Unique, easy-to-use, instant-acting cable clutch maximizes operator control: pull handle down and cable spins at 700 RPM, release handle, cable stops instantly. Low-profile“B-frame”design will fit most crawl spaces, loads and unloads from trunk easily. Upright “A-frame” features cable carrier storage during transport, ideal for in-house application. Wheels to the job site, sets up fast, cleaning fast. Equipped with 750W motor.

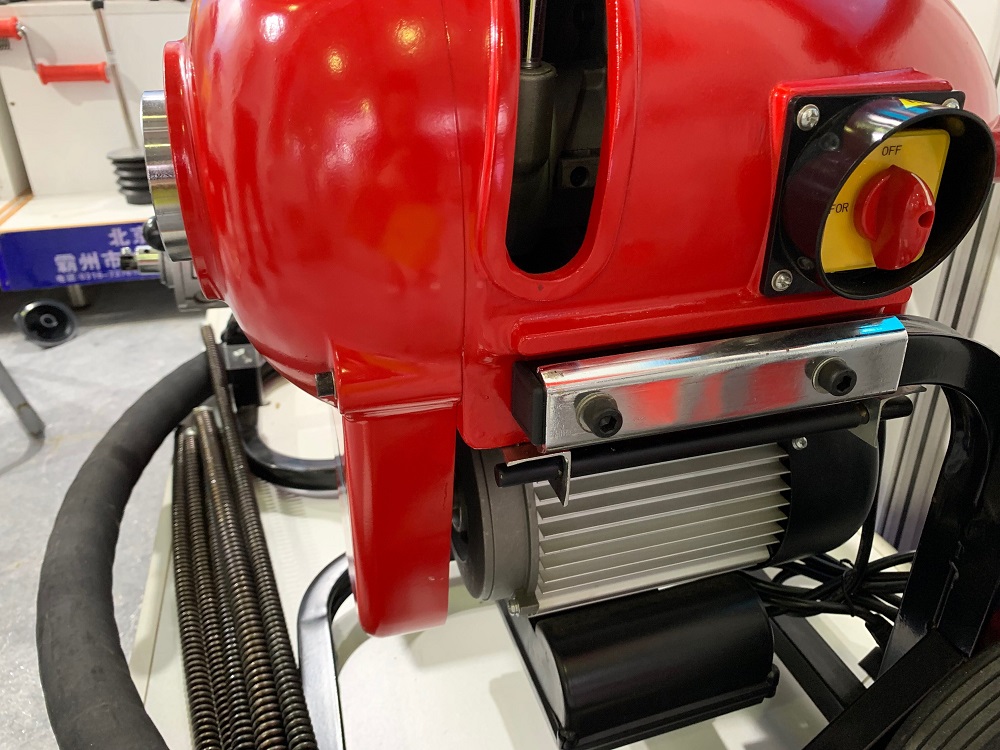

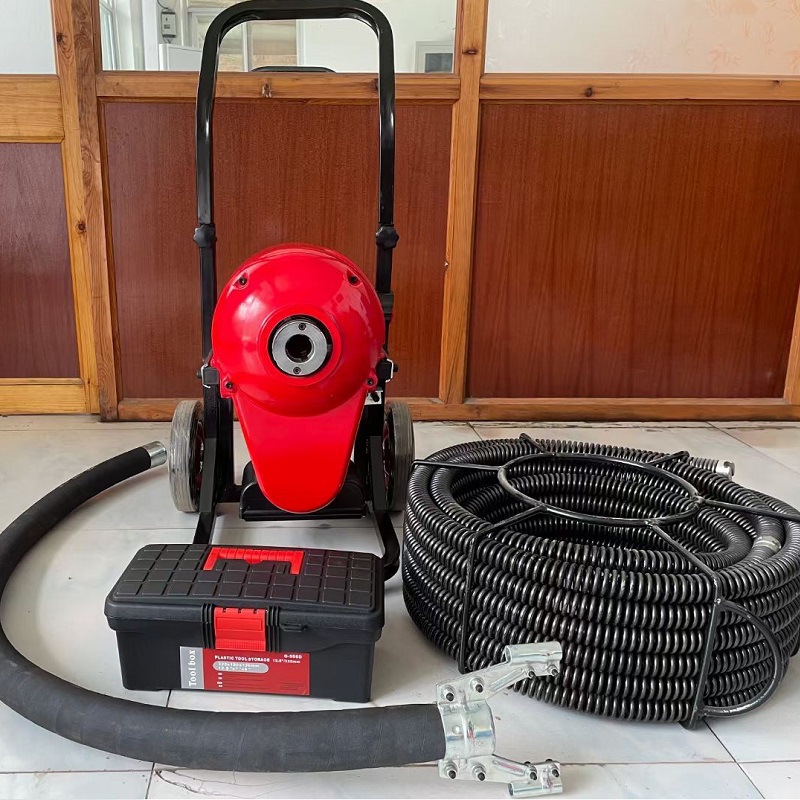

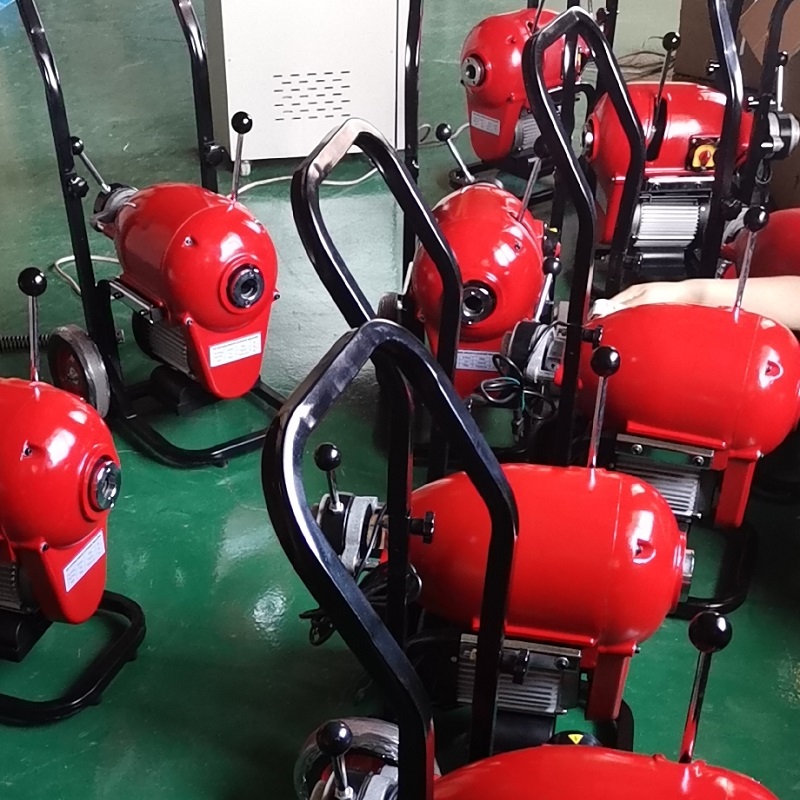

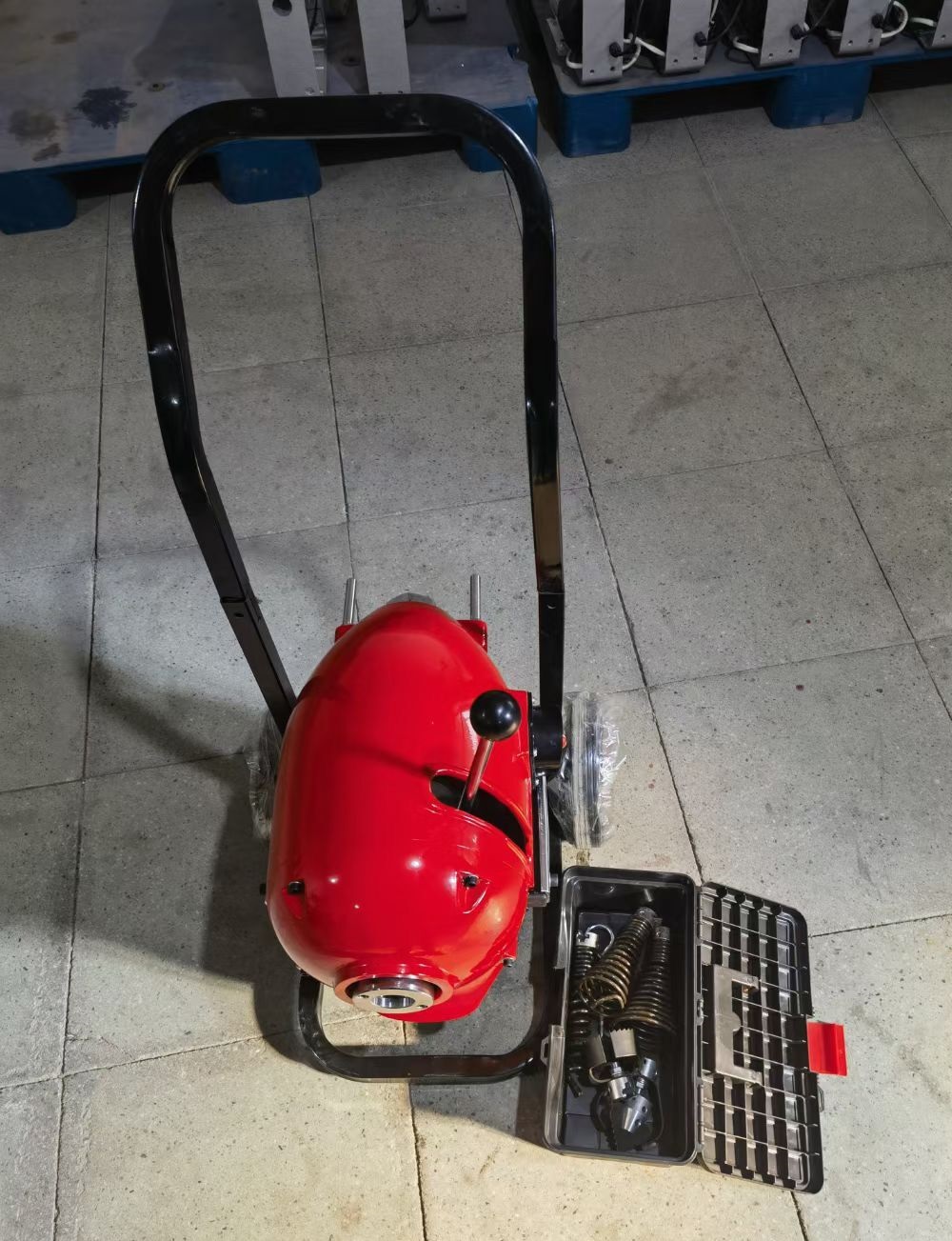

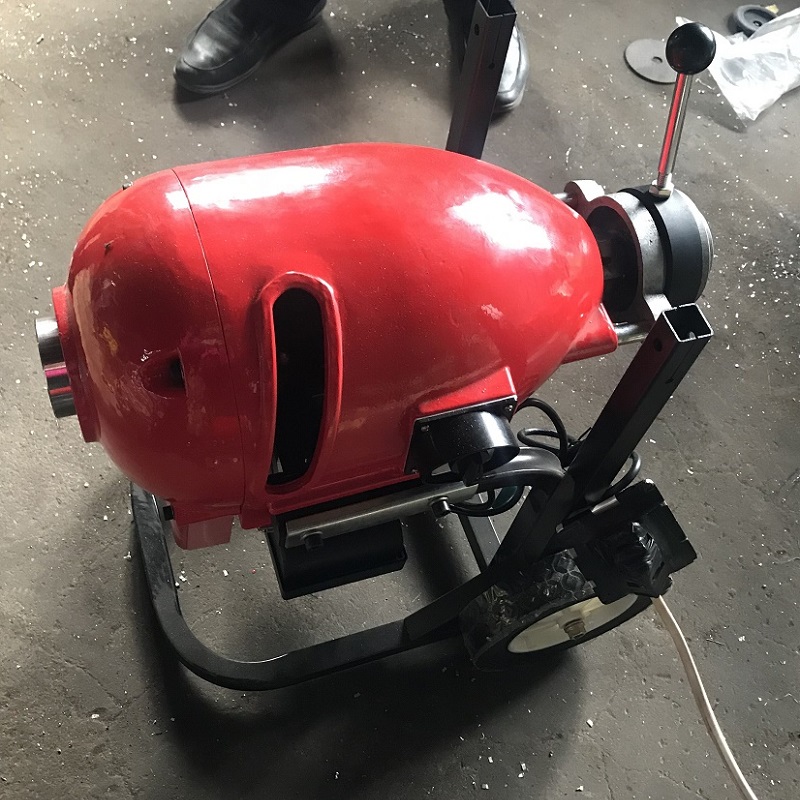

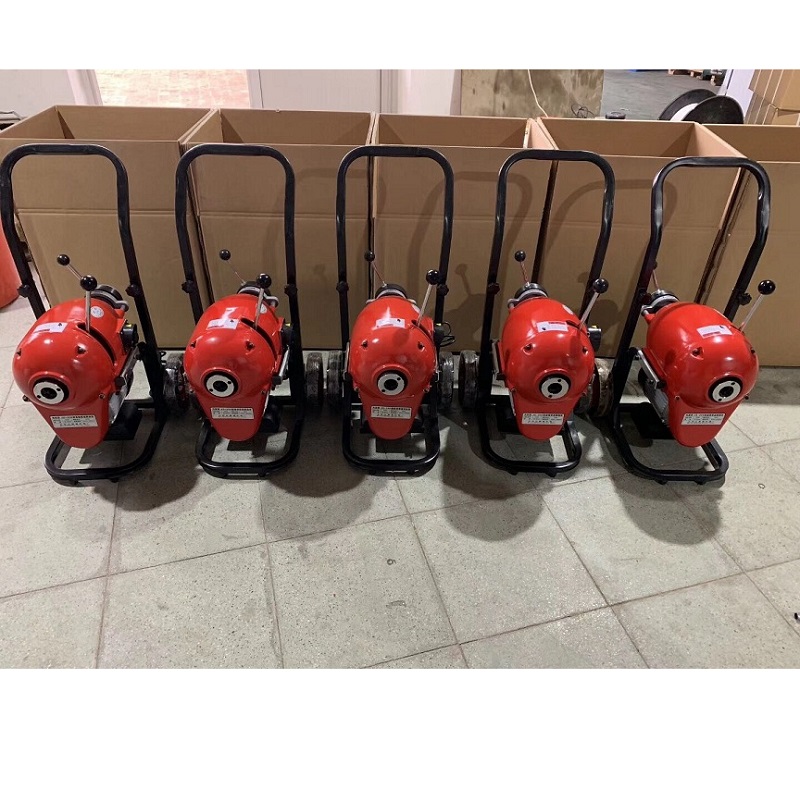

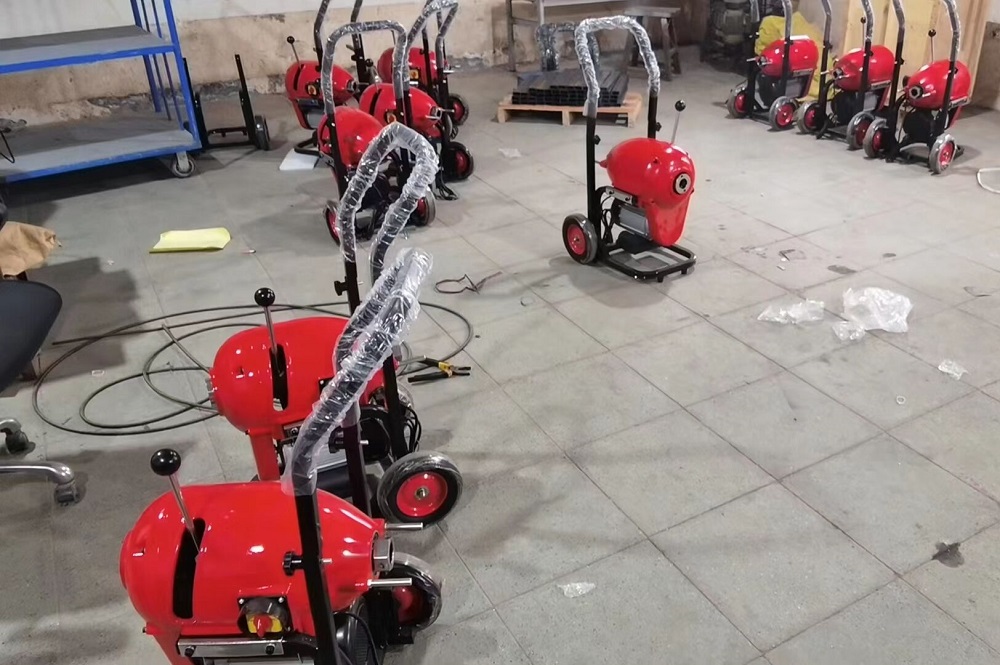

PICTURE OF SPRING DRAIN CLEANER
Drain cleaners for 50-200mm drain lines. Offers many features of heavier-duty machine in a lighter-weight design. Speed cleans drain lines. Easy to transport. Set up fast. Unique, easy-to-use instant-acting cable clutch maximizes operator control.
Operation Instructions

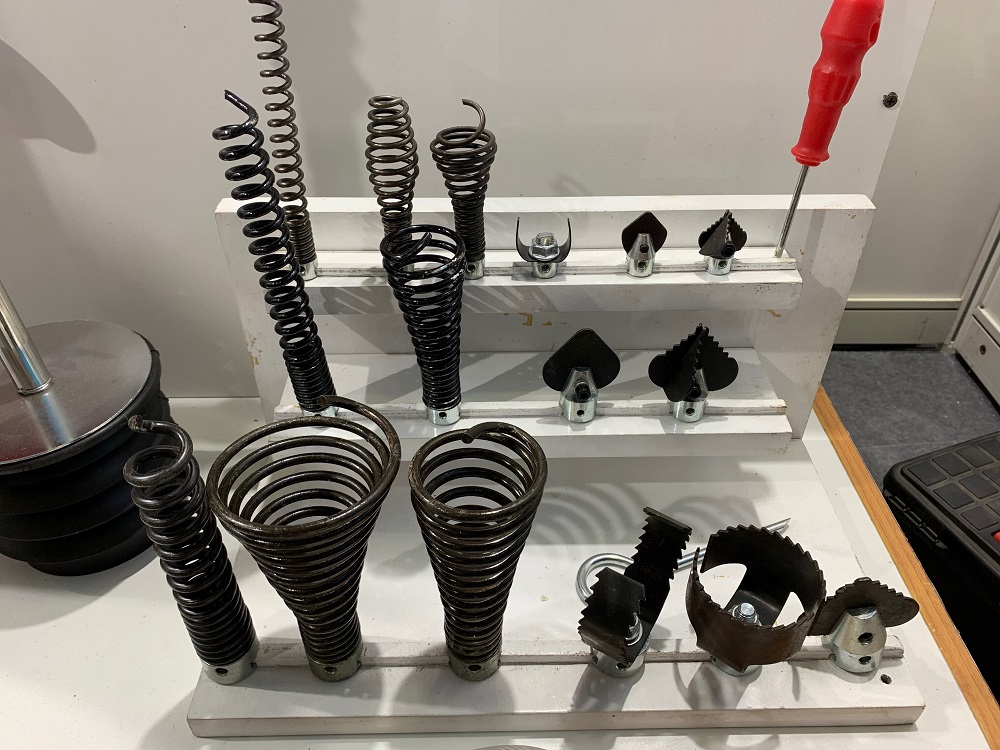

Insert the flexible shaft into the tail of the main machine first, select cutter head and fit in flexible shaft, put the flexible shaft into the pipeline, turn on the switch of power source when it reach the obstructions, press clutch handle to make flexible shaft rapidly rotate to mash the obstructions. If the pipeline is still dredged, let the clutch free and push the flexible shaft deeper in pipeline continually, operate repeatedly up to dredging of pipe. When dredge the pipeline with water, please use the suitable shaft, connect the roller at the tail of the machine and pull out the shaft according to the length to be used.
Maintenance Instructions
Make sure machine is unplugged from power source before performing maintenance or making any adjustment.
Lubrication
Lubricate machine with grease at grease fitting (located on jaw housing) once a week if used every day; once a month if used less. Place a drop of oil on each of the bearing points, thrust bearing, clutch jaws, etc., at least once a year.
Cables
Cables should be thoroughly flushed with water to prevent damaging effects of sediment and drain cleaning compounds.
Periodically lubricate cables and couplings.
When not in use, store cables indoors to prevent deterioration by the elements.
Cables should be replaced when they become severely corroded or worn. A worn cable can be identified when outside of coils become flat.
Machine Storage
Motor-driven equipment must be kept indoors or well covered in rainy weather. Store the machine in a locked area that is out of reach of children and people unfamiliar with drain cleaners. This machine can cause serious injury in the hands of untrained users.
If machine has been exposed to freezing weather, unit must be run for ten (10) to twenty (20) minutes without load to warm up. Failing to do this will result in frozen bearings. If machine is exposed to weather for a period of time, moisture will form across motor windings causing motor to burn out.

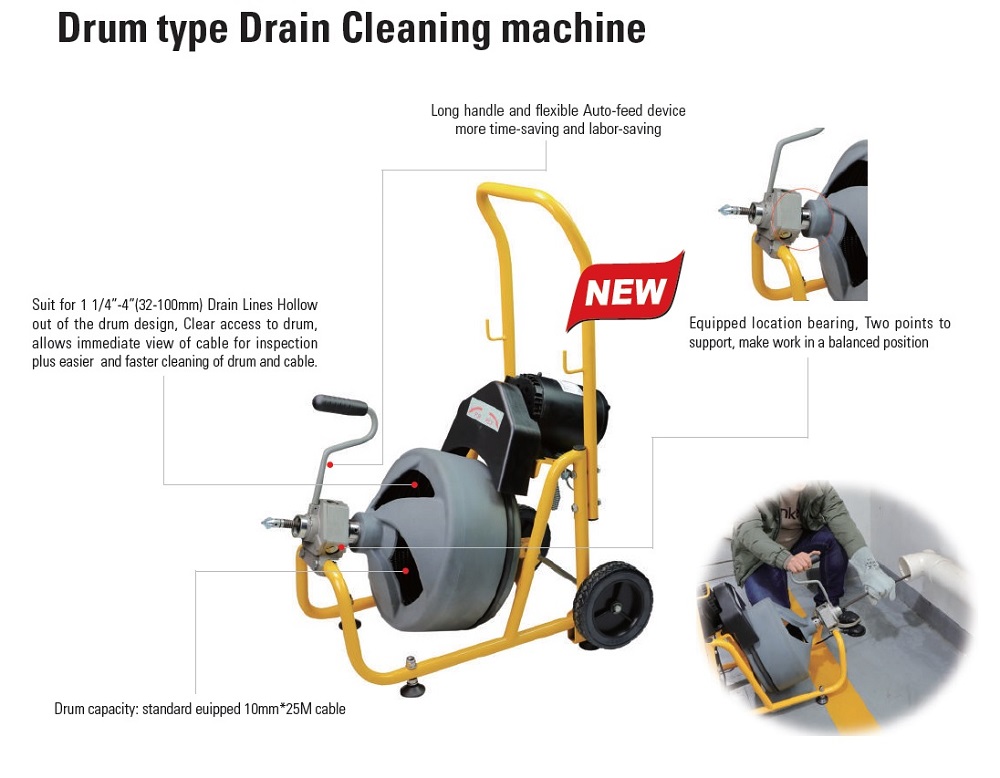

Find below drum type pipe drain cleaning machine with foldable wheel cart.
F.A.Q.
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
