Manual pipe test pump
INTRODUCTION OF MANUAL PIPE TEST PUMP
Manual pipe test pump
Max.pressure: 0-60bar /6Mpa /860Psi
Flow of stroke: 45ml /45c.c.
Tank Capacity: 12L
Connections:1/2″ BSPP
Tank material: steel
Valve: double valve, aluminum
Hollow handle
Accessories: pressure hose, pressure gauge, seal set
Packaging: Carton and iron case
Packing size: 50*18*31cm
G.W./N.W.: 8.5/8.0kgs

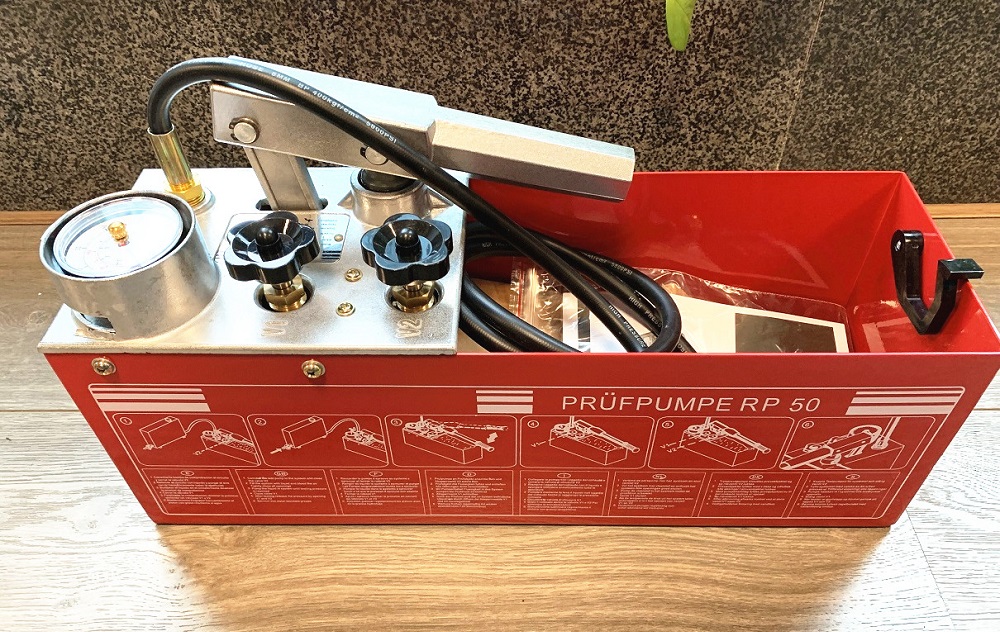

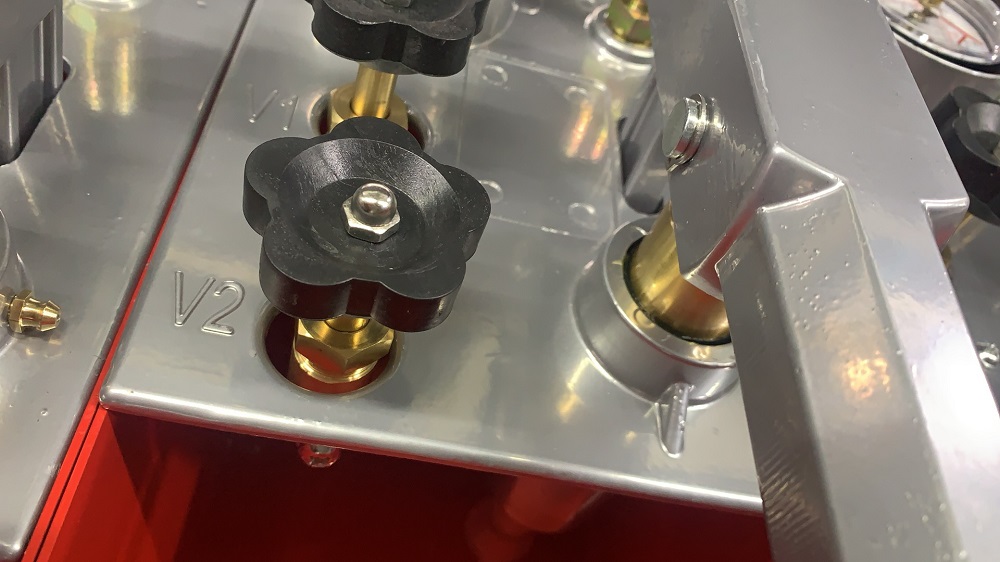

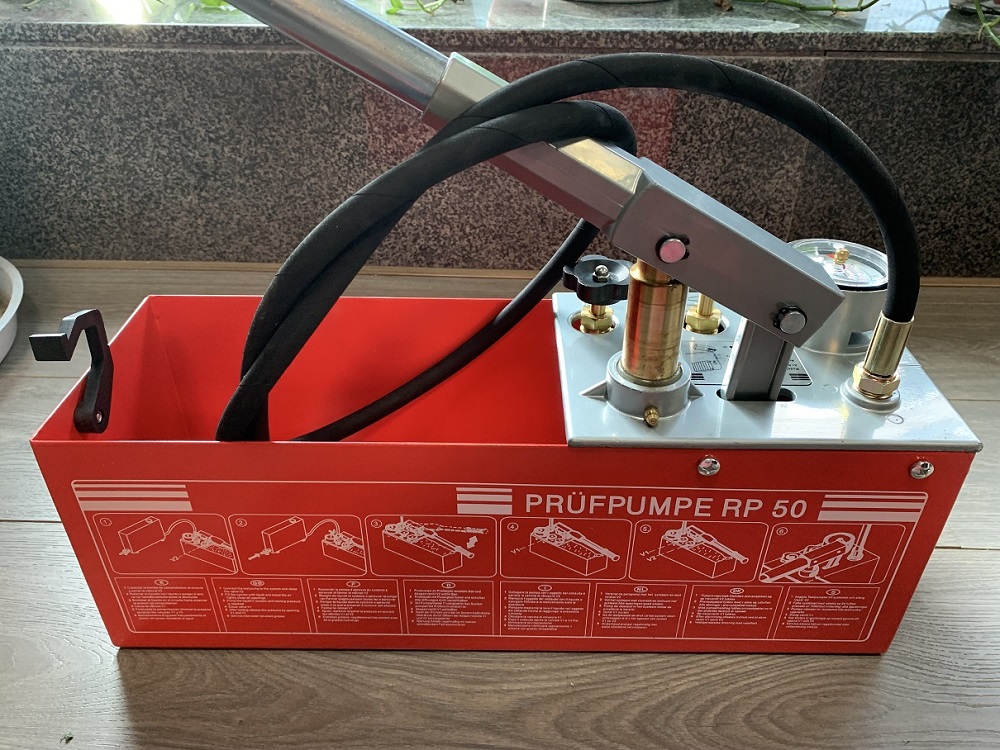

Reliable and precise measurement results: the double valve system of the RP50 allows the self-test of the pump as well as a precise fine
adjustment of pressure.
Robust precision testing pump for pressure testing of water lines and containers up to 60 bar with very high testing standards.
Pressure testing with water or oil of piping in residential and industrial construction, as well as for industrial containers. Expansion possible
with an extra fine scaling pressure gauge (0.1bar) for testing up to 16bars.

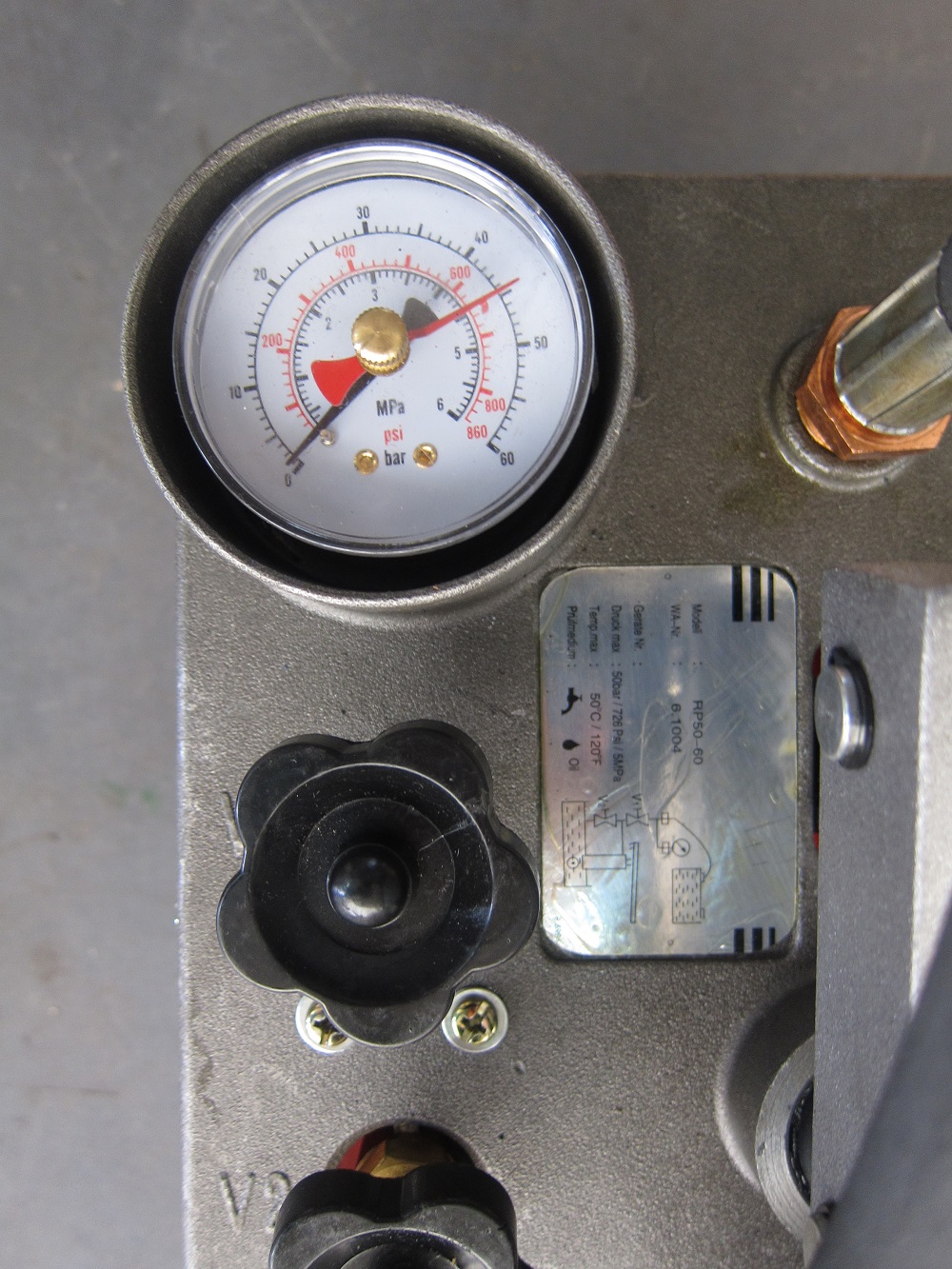

A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.
Testing hose with steel mesh prevents reading mistakes, that can happen when the hose expands during operation.

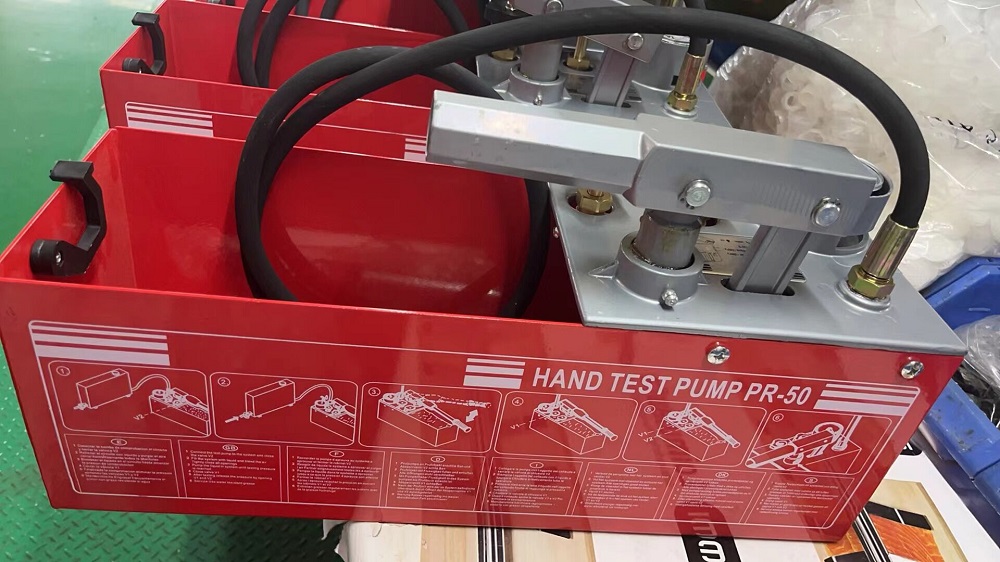

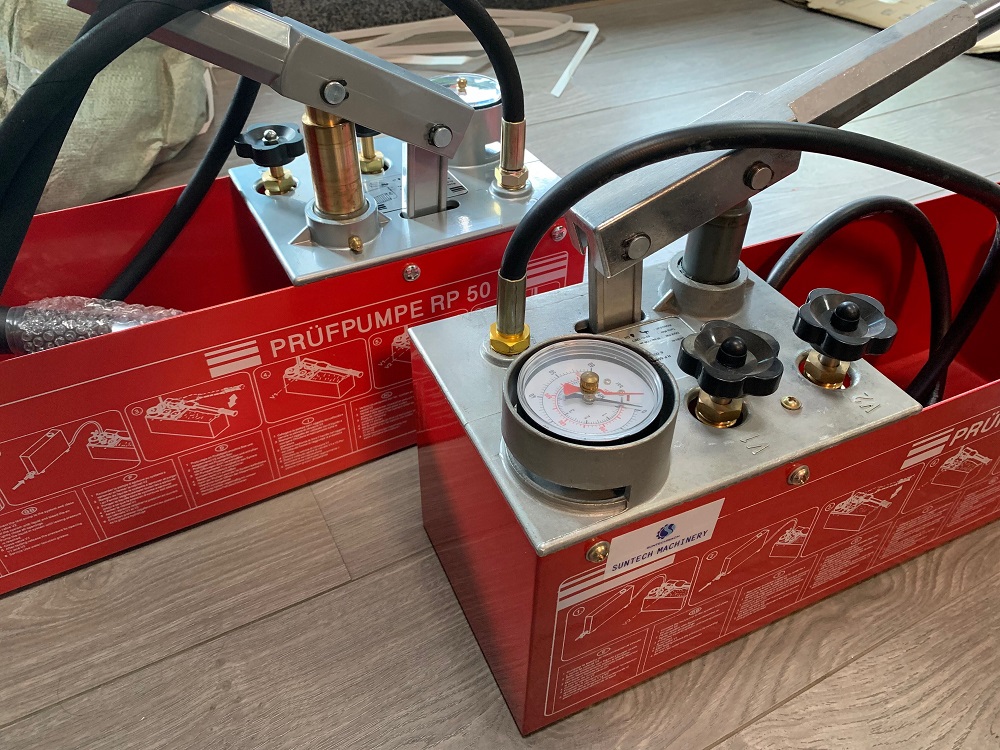

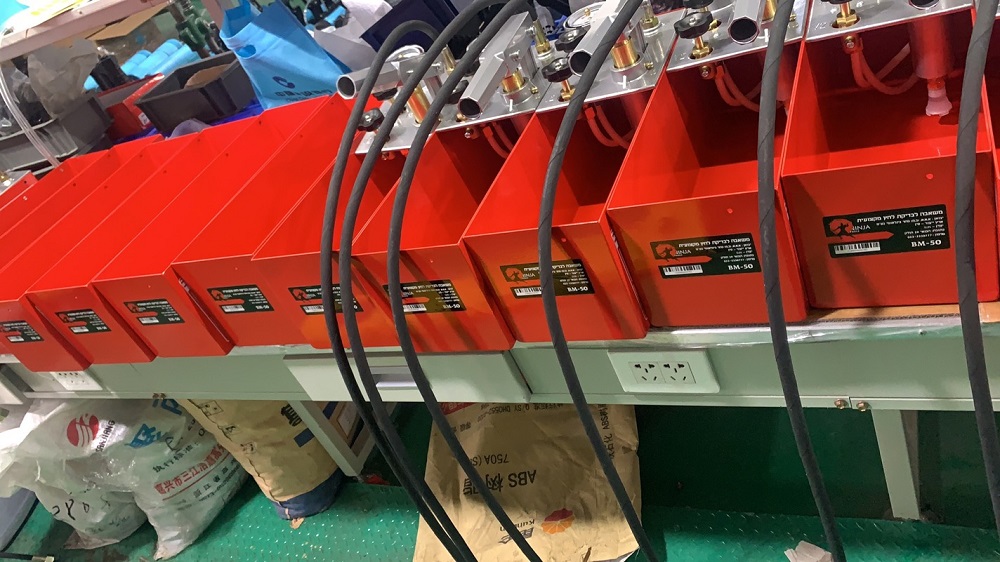

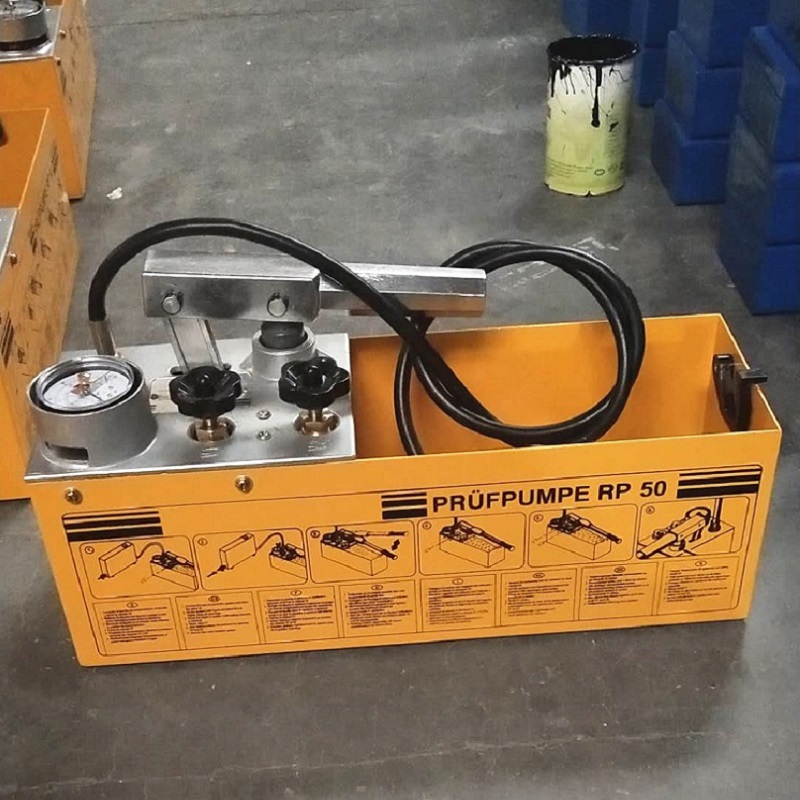

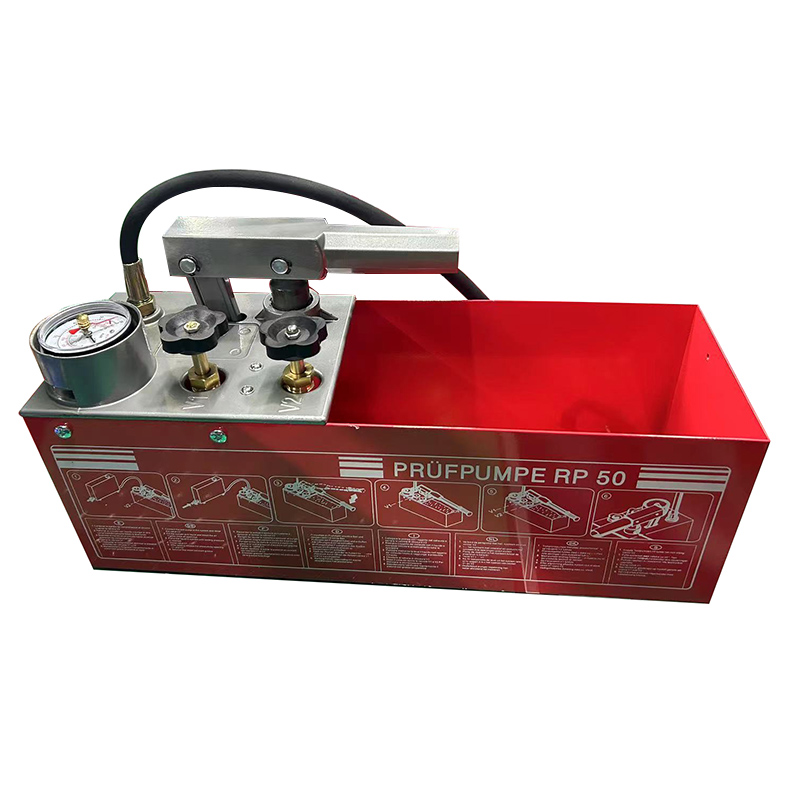

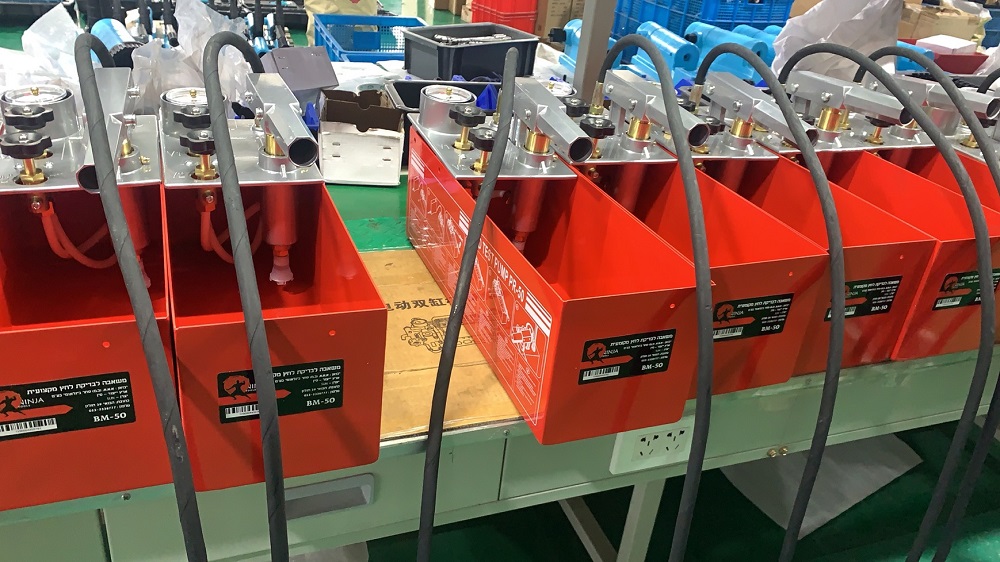

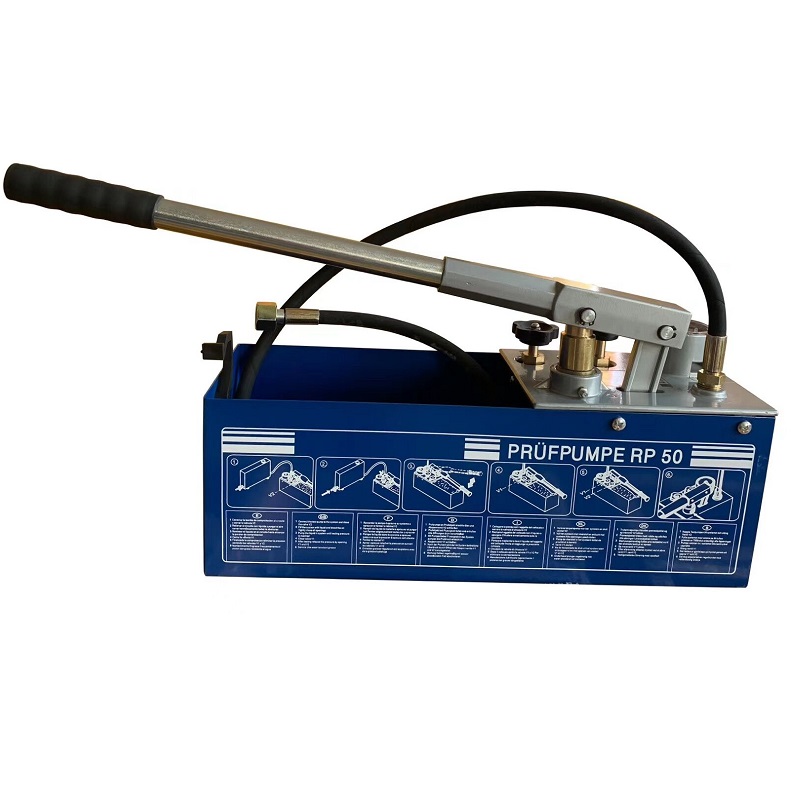

PICTURES OF MANUAL PIPE TEST PUMP

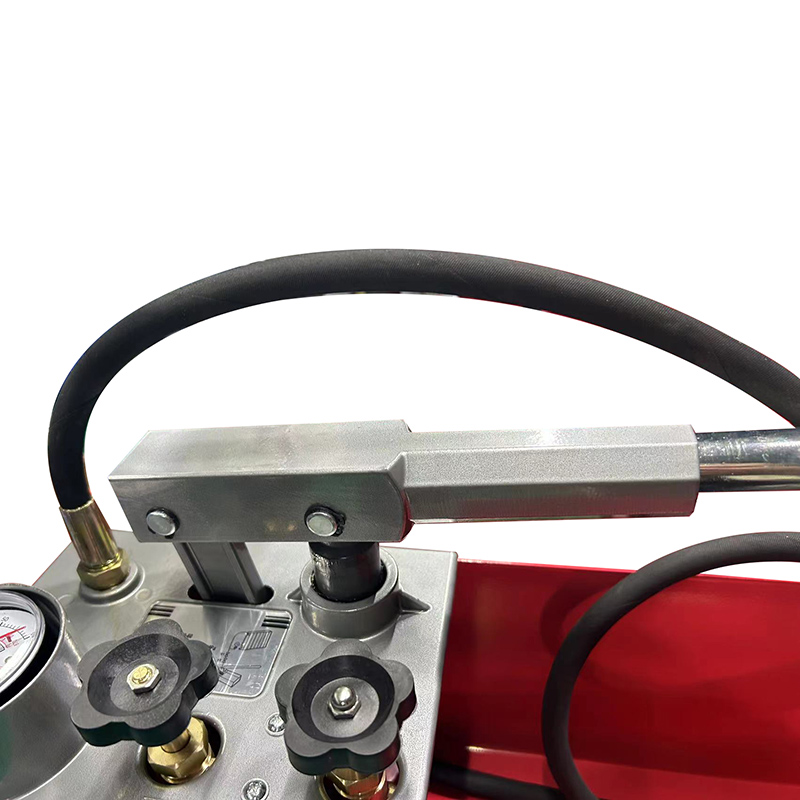

The piston can be copper material.
F.A.Q.
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
